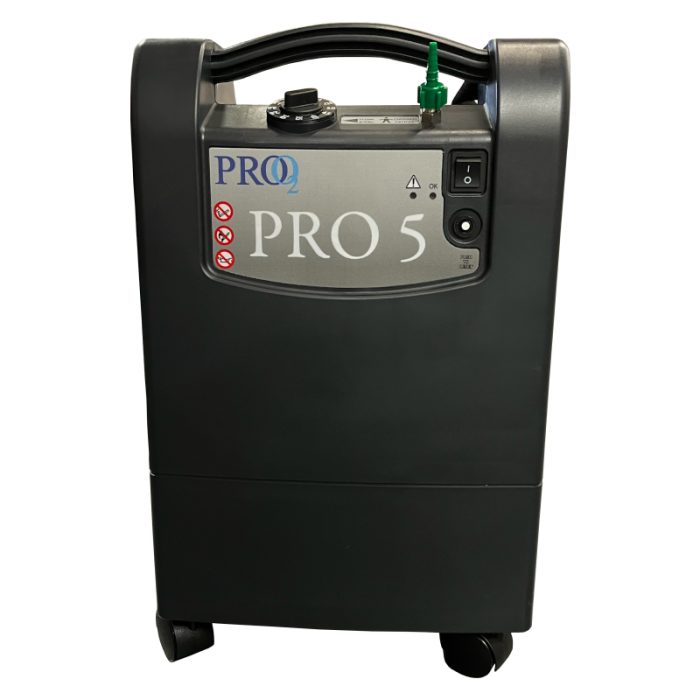

Pro-5

0.26 - 10.55 SCFH (0.125-5.0 LPM) oxygen production @ 7 PSI

2 In Stock
SKU
Pro-5
  $1,000.00

Related Products

Description / Pro-5

Conceived to provide high quality oxygen generation by integrating proven design concepts with the insight gained from over 30 years of producing superior oxygen concentrators, the Pro Series of Oxygen Concentrators aims to exceed the needs and demands of the Non-Medical realm of oxygen usage. A reimagined, compact, and highly mobile machine, this family demonstrates that it can stand and deliver a high-quality concentration of Oxygen in an affordable yet sleek layout.



Features:

     -4 recessed caster-style wheels, handle at the top of cabinet for easy movement between locations.

     -Lighweight/Tough Thermoplastic

     -Designed for Easy, Low-Maintenance Service

     -Safety Alarm



Product Characteristics:

Performance Data:

Product Flow

Oxygen Delivery Pressure

0.125-5.0 Liters per Minute (LPM)

7.5 PSI

Product Concentration Up to 95%

Dimensions (WxDxH)

 14 x 9 x 23 inches (36 x 23 x 58.5cm)

Weight

32 (lbs.)/14.5 (kg)

Physical Connections

Product Gas Outlet





Ambient Operating Conditions

Locate the oxygen concentrator system in a well-ventilated area that is protected from weather elements.

Temps should remain between 41°F (5°C) and 104°F (40°C)

(Outside of these temperatures still allows for purified Oxygen production, but will lower the shelf life and quality of production.)

Control Power Requirements (Single Phase)





Typical Applications:

Manufacturing

      -Glass Work/Blowing

      -Brazing/Sodering/Jewelry

      -Thermal/Chemical Oxidation

Environmental

      -Ozone (Generator) Feed Gas

      -Waste/Water Treatment

      -Environmental Remediation

Additional

      -Fish Farming

      -Aquaponics

      -Hydroponics







Overview video of the PRO-5 Oxygen Concentrator





Video demonstrating the use of the PRO-5 with the HTU-500 Ozone Generator

Downloads:

Pro-Series Brochure

Pro-Series Manual

More Information

Manufacturer Misc
Quickbooks Stock Level 2.000000
Quickbooks Stock Date Expected 2024-11-28 00:00:00
Listing Description

0.26 - 10.55 SCFH @ 7 PSI

Nominal Gas Flow Rate 0.125-5 LPM
Operating Pressure 7 PSI
Max Pressure 7 PSI
Operational RH Range NA
Operational Temperature Range NA
Power Requirements 330 W @ 155V/60H or 300W 230V/50H
Lead Time 2 weeks
Warranty 1 Year
Country of Origin USA
Oxygen Production 0.26 - 10.55 SCFH (0.125-5.0 LPM)
Unit Features

- 95% Oxygen Concentration

- Lightweight with tough Thermoplastic

- 4 caster-style wheels with a handle for easy movement

Description - 95% Oxygen Concentration - Lightweight/Tough Thermoplastic - 4 caster-style wheels with a handle for easy movement between locations
