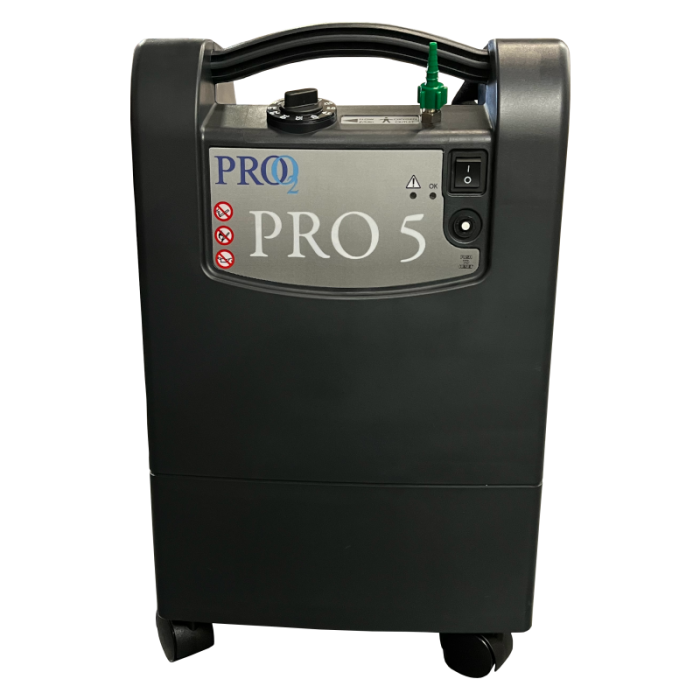

Pro-5
0.26 - 10.55 SCFH (0.125-5.0 LPM) oxygen production @ 7 PSI
- SKU
- Pro-5
Related Products
Description / Pro-5
Conceived to provide high quality oxygen generation by integrating proven design concepts with the insight gained from over 30 years of producing superior oxygen concentrators, the Pro Series of Oxygen Concentrators aims to exceed the needs and demands of the Non-Medical realm of oxygen usage. A reimagined, compact, and highly mobile machine, this family demonstrates that it can stand and deliver a high-quality concentration of Oxygen in an affordable yet sleek layout.
Features:
- 4 recessed caster-style wheels, handle at the top of cabinet for easy movement between locations.
- Lighweight/Tough Thermoplastic
- Designed for Easy, Low-Maintenance Service
- Safety Alarm
Product Characteristics:
|
Performance Data: Product Flow Oxygen Delivery Pressure |
0.125-5.0 Liters per Minute (LPM) 7.5 PSI |
| Product Concentration | Up to 95% |
|
Dimensions (WxDxH) |
14 x 9 x 23 inches (36 x 23 x 58.5cm) |
|
Weight |
32 (lbs.)/14.5 (kg) |
|
Physical Connections Product Gas Outlet |
|
| Ambient Operating Conditions |
Locate the oxygen concentrator system in a well-ventilated area that is protected from weather elements. Temps should remain between 41°F (5°C) and 104°F (40°C) (Outside of these temperatures still allows for purified Oxygen production, but will lower the shelf life and quality of production.) Note - if the environment gets above 95 deg F and standing water is present on nearby surfaces or floor, provision must be made to remove excess moisture from the air. |
| Control Power Requirements (Single Phase) |
|
Typical Applications:
Manufacturing
-Glass Work/Blowing
-Brazing/Sodering/Jewelry
-Thermal/Chemical Oxidation
Environmental
-Ozone (Generator) Feed Gas
-Waste/Water Treatment
-Environmental Remediation
Additional
-Fish Farming
-Aquaponics
-Hydroponics
Overview video of the PRO-5 Oxygen Concentrator
Video demonstrating the use of the PRO-5 with the HTU-500 Ozone Generator
The Pro-5 and VMUS-4 Ozone Generator:
Downloads:
More Information
| Manufacturer | Misc |
|---|---|
| Quickbooks Stock Level | 3.000000 |
| Listing Description | 0.26 - 10.55 SCFH @ 7 PSI |
| Nominal Gas Flow Rate | 0.125-5 LPM |
| Operating Pressure | 7 PSI |
| Max Pressure | 7 PSI |
| Operational RH Range | 0-85% |
| Operational Temperature Range | 35-95 deg F |
| Power Requirements | 330 W @ 155V/60H or 300W 230V/50H |
| Lead Time | 2 weeks |
| Warranty | 1 Year |
| Country of Origin | USA |
| Oxygen Production | 0.26 - 10.55 SCFH (0.125-5.0 LPM) |
| Unit Features | - 95% Oxygen Concentration - Lightweight with tough Thermoplastic - 4 caster-style wheels with a handle for easy movement |
| Description | - 95% Oxygen Concentration - Lightweight/Tough Thermoplastic - 4 caster-style wheels with a handle for easy movement between locations |
