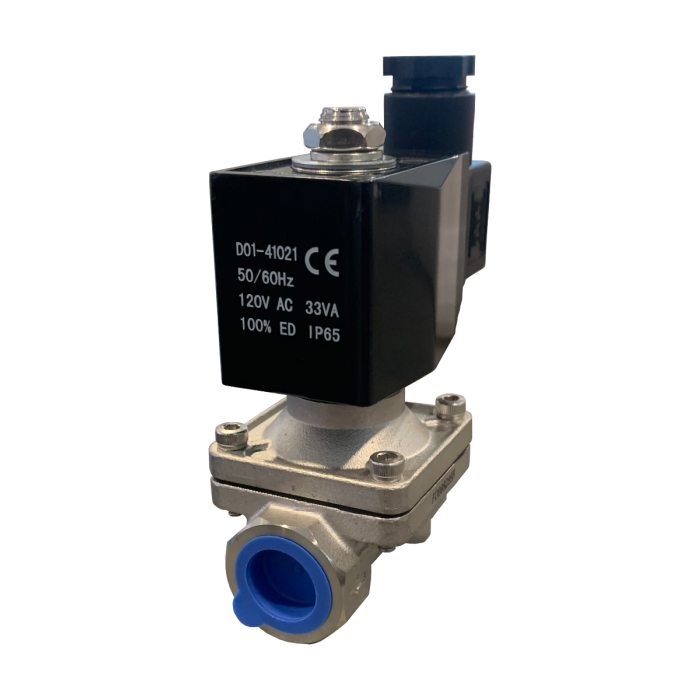

Solenoid Valve 1/2" NPT
calcActive())">
Description / Solenoid Valve 1/2" NPT
Solenoid Valve 1/2" NPT for ozone generators.
Specifics:
- 1/2" NPT inlet / outlet port threads | 1/2" or 15 mm internal orifice | 2-way | Unidirectional.
- 120VAC - 50/60hz - 33 watts - DIN plug electrical connector
- Normally Closed (Energize to open, de-energize to close).
- Stainless Steel Body (SS304), FKM (Viton) diaphragm, Stainless Steel internal parts.
- 0 to 145 psi, 265 F max media temp, Cv 4.8.
- Used for water, air or gasses, other things compatible with FKM/Viton.
More Information
| Manufacturer | Oxidation Technologies |
|---|---|
| Operating Pressure | 0-145 psi, or Vacuum |
| Max Pressure | 145 psi |
| Operational Temperature Range | 0-265 degrees F |
| Power Requirements | 120 VAC or 60 Hz |
| Warranty | 1 Year |
