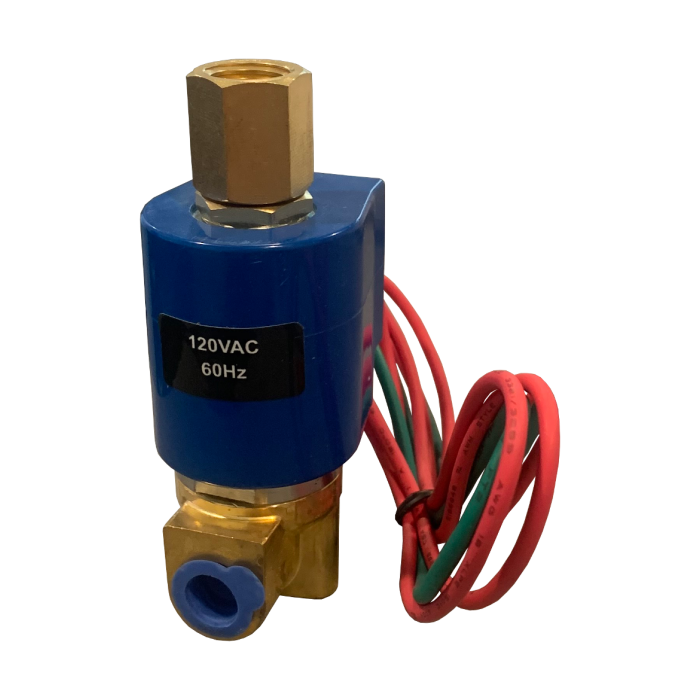

Solenoid 3-Way Valve 1/4" NPT

Solenoid 3-Way Valve 1/4" NPT for air and oxygen.

Part #B30V-1/4-CD-120 VAC

2 In Stock
SKU
B30V-1/4-CD-120 VAC
  $51.68

Description / Solenoid 3-Way Valve 1/4" NPT

Solenoid 3-Way Valve 1/4" NPT for air and oxygen.

Specifications:

  • Model: EhcoTech B30V-1/4-CD-120VAC
  • Voltage: 110/120-Volt AC
  • Wattage: 20 Watts
  • Operation Mode: Normally Closed (valve opens when energized)
  • Valve Type: 3-Way, Direct Acting, Wet Armature
  • Inlet/Outlet Ports: 1/4" Female NPT Threads (18 threads per inch/US Standard)
  • Max Pressure Rating: 115 psi
  • Suitable Media: Air, Water, Very Low VIscosity Fluids, Vacuum
  • Cv Value: 0.23
  • Temperature Limitations: Maximum Media Temperature 265 degrees F
  • Valve Response Time: Very Fast Acting
  • Duty Cycle: Continuous (can be left powered without overheating)
  • Mounting: Can be attached with two 5 mm machine screws (not included)



More Information

Manufacturer Oxidation Technologies
Quickbooks Stock Level 2.000000
Operating Pressure 0-115 psi
Max Pressure 115 psi
Operational Temperature Range 0-265 degrees F
Power Requirements 120 VAC
Warranty 1 Year

We found other products you might like!

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Solenoid Valve 1/4" NPT for ozone generators
$56.00

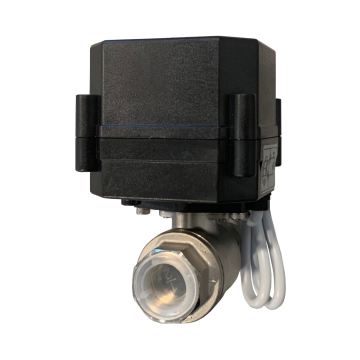

Solenoid Valve 1/2" NPT
