Used AS-G Oxygen Generator
Related Products
Description / Used AS-G Oxygen Generator

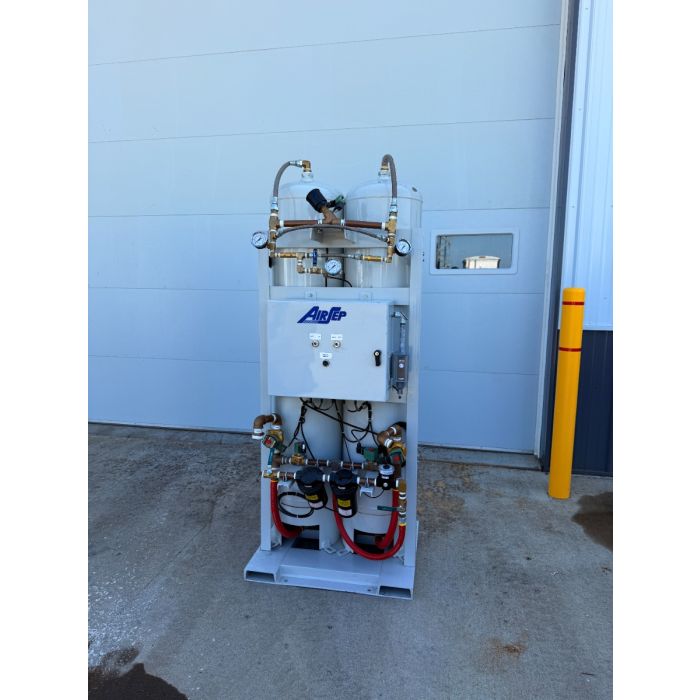

Used AS-G Oxygen Generator is an industrial oxygen concentrator great for continuous oxygen production. AirSep Alpha-Series Oxygen Generators produce from 20 to 5,000 cubic feet of oxygen per hour at up to 95.5% oxygen concentration. When electricity and a source of compressed air is supplied, these dependable machines can provide oxygen for any application. This compressed air is separated by Pressure Swing Adsorption (PSA).
Features
-Independent Compressed AIr Source
-Microprocessor Controlled
-Low-Operating Cost
-Automatic and Unattended Operation
-Easy to Install and Maintain
-Optional NEMA 4 Touchscreen Control Panel
-Product Characteristics
| Product Flow | 250-320 SCFH |
| Product Pressure | 45-65 PSI |
| Product Concentration | 93% |
| Product Dew Point | -100°F (-73°C) |
| Dimensions (W x D x H) | 36 x 29 x 75 in (91 x 74 x 191 cm) |
| Weight | 956 lbs (434 kg) |
|
Physical Connections Compressed Air Inlet Product Gas Outlet |
3/4" FNPT 3/8" FNPT |
| Ambient Operating Conditions |
Put Oxygen Generator in well-ventilated area that is protected from weather elements. Temperature should remain between 40°F - 104°F (4°C - 40°C) |
| Feed Air Requirements |
Clean and Dry “Plant Air” (Class 5.6.5 per ISO 8573.1) Pressure: 90 psig (621 kPa) minimum Temperature: 122°F (50°C) maximum |
| Control Power Requirements | 120 V ~ ±10%, 50/60 Hz, 3.0 A or 220 V ~ ±10%, 50/60 Hz, 1.0 A |
Typical Applications
Manufacturing
-Cutting/Brazing/Sodering
-Thermal/Chemical Oxidation
Medical
-Hospital Systems
Environmental
-Ozone (Generator) Feed Gas
-Environmental Remediation
-Waste/Water Treatment
Glass
-Glass Work/Manufacturing/Blowing
Additional
-Fish Farming
Downloads:
More Information
| Manufacturer | Air Sep |
|---|---|
| Listing Description | Used AS-G Oxygen Generator will produce 250-320 SCFH oxygen at 93% purity at 45-65 PSI of pressure. |
| Internal Compressor | No |
| O2 Delivery PSI | 45+ PSI |
| Nominal Gas Flow Rate | 250-320 SCFH |
| Operating Pressure | 45-65 PSI |
| Gas Connections | 3/8" Female NPT |
| Dimensions (LxWxH) | 36" wide x 29" deep x 75" tall |
| Operational RH Range | 0-85% humidity |
| Operational Temperature Range | 40 - 104-deg F |
| Power Requirements | 120 V ~ ±10%, 50/60 Hz, 3.0 A or 220 V ~ ±10%, 50/60 Hz, 1.0 A |
| Lead Time | 2-weeks |
| Warranty | 1 Year |
| Country of Origin | USA |
| Oxygen Production | 251 + SCFH |
| Unit Features | Used AS-G Oxygen Generator will produce 250-320 SCFH oxygen at 93% purity at 45-65 PSI of pressure. |
