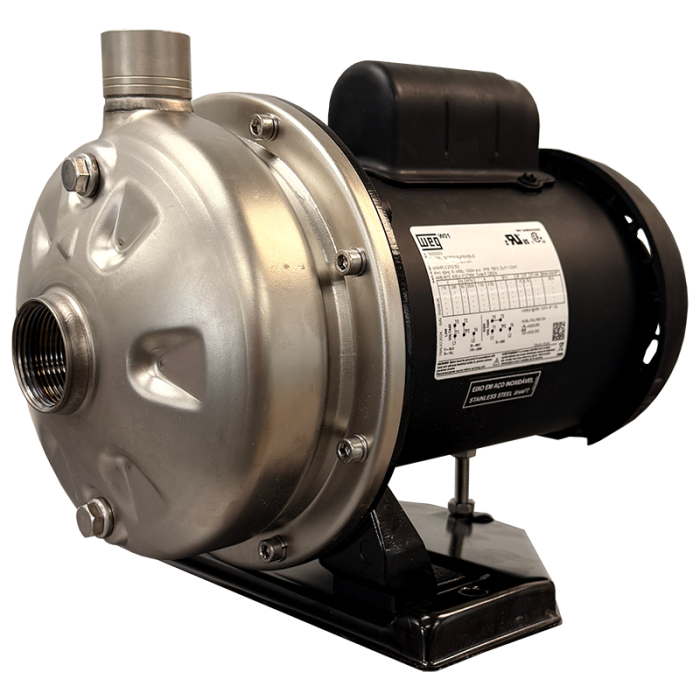

WP-1 Pump

Stainless Steel pumps for ozone water applications.  The WP-1 pump is assembled by EBARA in Rock Hill, South Carolina to ensure high quality, excellent delivery times, and quality.  We use this pump on our ozone water systems and are pleased to offer this for use to our customers as an excellent option for ozone injection into water and pumping ozone water reliably.  We have worked with Ebara to select a mechanical seal and components that provide excellent reliability in applications with high dissolved ozone levels in water.

The WP-1 is a Stainless Steel End Suction Centrifugal Pump that is constructed of bulge-formed stainless steel, the WP-1 is designed for corrosion resistance, dependable performance and high-efficiency, continuous duty. All pump components in the water path are high-quality stainless steel components that are are stronger, dimensionally consistent and lighter weight compared to conventional cast iron, making EBARA centrifugal pumps competitively priced while providing excellent reliability in ozone water applications

Details are listed below on pump performance using Mazzei Venturi Injectors in various configurations.  Should you have additional questions on dissolving ozone gas into water, please contact our office.

WP-1 is NSF/ANSI 61 Annex G listed.

Manufactor Part Number# ACDU70/05T1VSC

Product Description: ACDU70/0-1/2HP

Inlet (Suction): 1 1/4 inch

Outlet (Discharge): 1 in

Key Features:

- Close coupled design – saves space; simplifies maintenance and installation

- Stainless steel liquid end components – high quality; corrosion resistance

- Versatile mounting – can be installed horizontally or vertically

- Back pullout construction – allows for assembly and overhaul of the impeller and seal without distorting suction and discharge connections

- Top centerline discharge and foot support under casing – ensures self-venting and reduces misalignment from pipe loads

- High-efficiency – lowers operating costs

- High quality mechanical shaft seals and o-rings – available for standard pumping requirements, or optional high temperature and chemical duty operation

Applications:

- Plant Services

- Water Supply Systems

- Liquid Transfer

- Water Treatment

- Irrigation

Replacement Parts:

WP Series Replacement Parts

Link copied: https://www.oxidationtech.com/wp-1.html#wp-series-replacement-parts

Product	Unit Features	Price
WP-Large O-Ring	- Large O-Ring for WP Pumps	$200.00
WP-Rebuild Pump Seal Kit	- Large O-Ring for WP Pumps	$200.00

WP-Large O-Ring

$200.00

Unit Features

- Large O-Ring for WP Pumps

View Details

WP-Rebuild Pump Seal Kit

$200.00

Unit Features

- Large O-Ring for WP Pumps

View Details

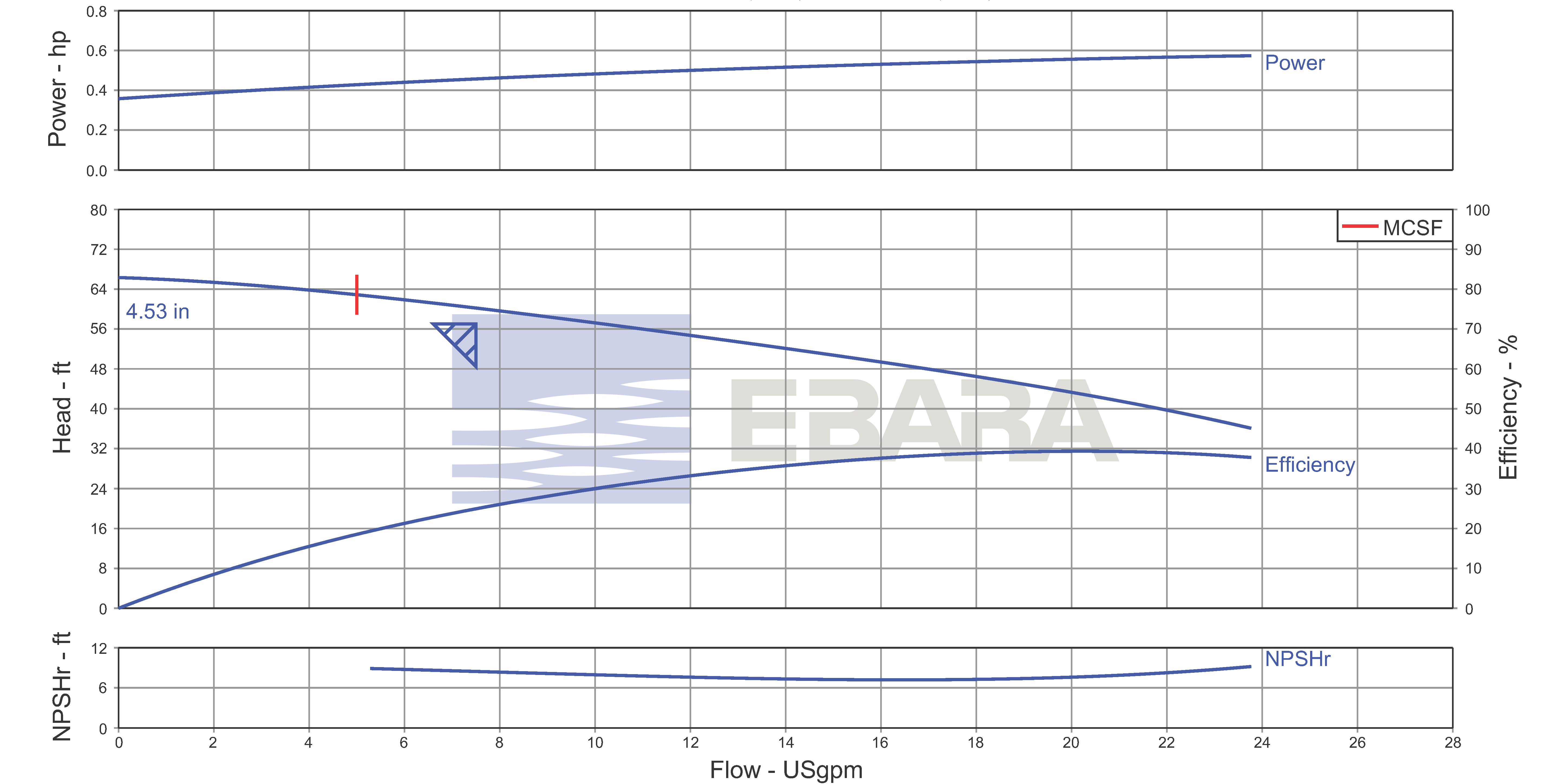

WP-1 Pump Curve:

Pump Curve shows triangle illustrating the performance of the WP-1 pump with the Mazzei 684 venturi.  This performance assumes 0 PSI at the inlet of the pump, this is representative of the WP-1 pump and 684 venturi circulating water on a water tank.

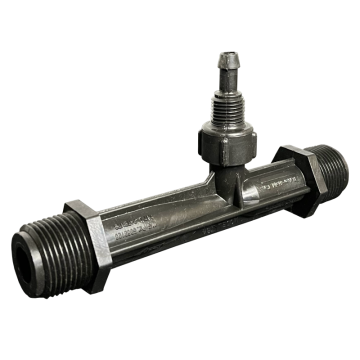

Example of WP-1 Pump used with 684 Venturi on Water Tank:

Performance Data Based on Pressurized Systems:

Table below illustrates our test data of the WP-1 pump with various Mazei Venturi Injectors when operated at pressures.  This data assumes the Pump is pulling water from a pressurized system, the pump inlet pressure matched the venturi outlet pressure in our testing.  A drawing below illustrates how this was plumbed, and could be plumbed in your system.

Dimensions:

Downloadable Content:

Brochure

Specifications Sheet

Operation Manual

WP-1 Pump with 684 Venturi

WP-1 Pump Curve shown with 684 Venturi

WP-1 Dimensions
