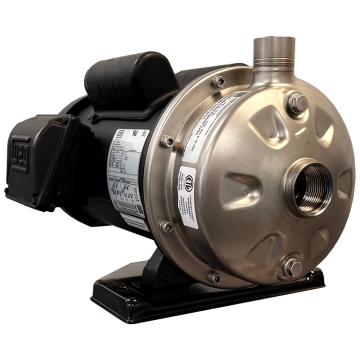

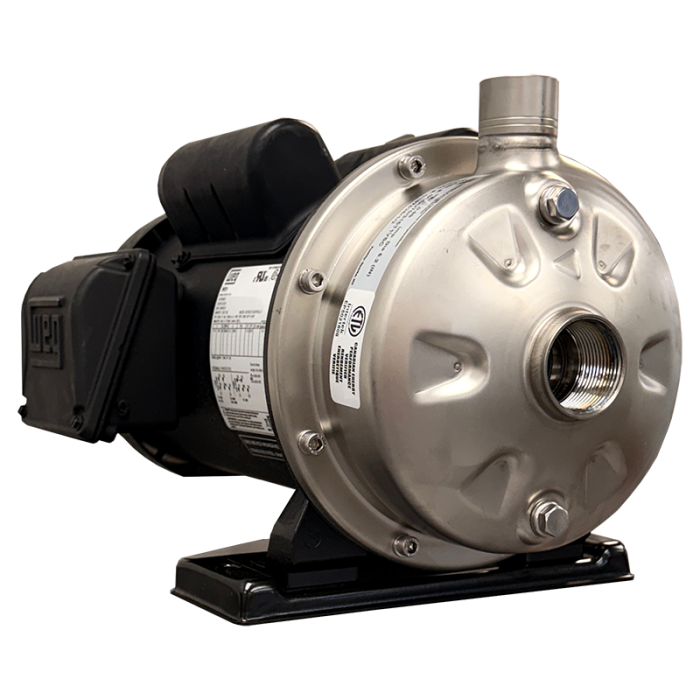

WP-3 Pump
The WP-3 is a great option for efficiently dissolving ozone into water, or pumping ozone water. We recommend using the WP-3 with our Venturi-1078.
Orders for more than 2 units will take longer to ship.
- SKU
- WP-3
- Material of construction
- Stainless Steel
Related Products
Description / WP-3 Pump
Stainless Steel pumps for ozone water applications. The WP-1 pump is assembled by EBARA in Rock Hill, South Carolina to ensure high quality, excellent delivery times, and quality. We use this pump on our ozone water systems and are pleased to offer this for use to our customers as an excellent option for ozone injection into water and pumping ozone water reliably. We have worked with Ebara to select a mechanical seal and components that provide excellent reliability in applications with high dissolved ozone levels in water.
The WP-1 is a Stainless Steel End Suction Centrifugal Pump that is constructed of bulge-formed stainless steel, the WP-1 is designed for corrosion resistance, dependable performance and high-efficiency, continuous duty. All pump components in the water path are high-quality stainless steel components that are are stronger, dimensionally consistent and lighter weight compared to conventional cast iron, making EBARA centrifugal pumps competitively priced while providing excellent reliability in ozone water applications
Details are listed below on pump performance using Mazzei Venturi Injectors in various configurations. Should you have additional questions on dissolving ozone gas into water, please contact our office.
Manufactor Part Number# ACDU70/3-1.5HP
Product Description: ACDU70/3-1.5HP
Inlet (Suction): 1 1/4 inch
Outlet (Discharge): 1 in
Key Features:
- Close coupled design – saves space; simplifies maintenance and installation
- Stainless steel liquid end components – high quality; corrosion resistance
- Versatile mounting – can be installed horizontally or vertically
- Back pullout construction – allows for assembly and overhaul of the impeller and seal without distorting suction and discharge connections
- Top centerline discharge and foot support under casing – ensures self-venting and reduces misalignment from pipe loads
- High-efficiency – lowers operating costs
- High quality mechanical shaft seals and o-rings – available for standard pumping requirements, or optional high temperature and chemical duty operation
Applications:
- Plant Services
- Water Supply Systems
- Liquid Transfer
- Water Treatment
- Irrigation
Replacement Parts:
| Product | Unit Features | Price |
|---|---|---|
 WP-Large O-Ring
|
- Large O-Ring for WP Pumps |
$200.00
|
 WP-Rebuild Pump Seal Kit
|
- Large O-Ring for WP Pumps |
$200.00
|
WP-Large O-Ring
Unit Features
- Large O-Ring for WP Pumps
WP-Rebuild Pump Seal Kit
Unit Features
- Large O-Ring for WP Pumps
WP-3 Pump Curve:
Pump Curve shows triangle illustrating the performance of the WP-3 pump with the Venturi-1078. This performance assumes 0 PSI at the inlet of the pump, this is representative of the WP-3 pump and Venturi-1078. circulating water on a water tank.

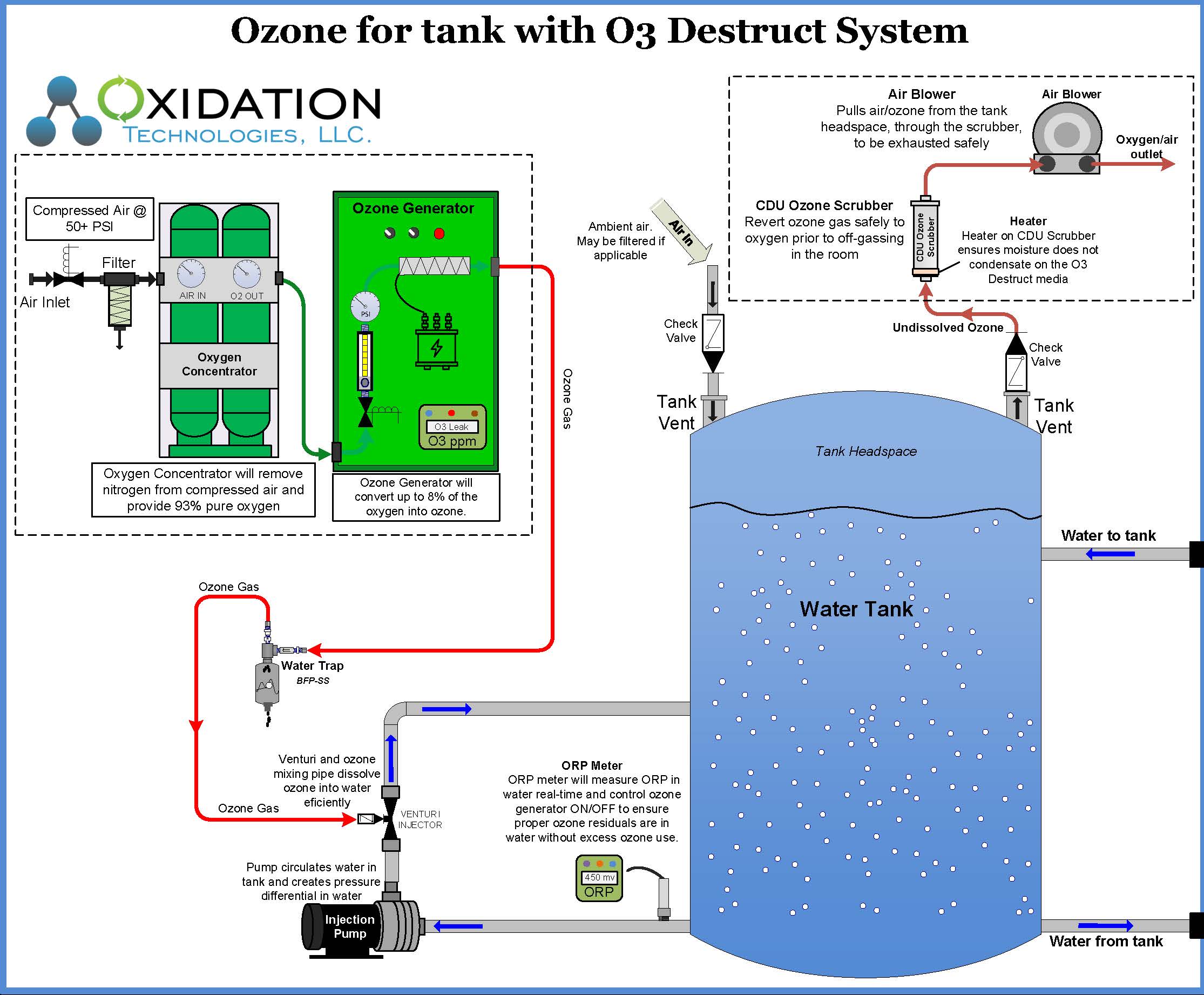

Example of WP-3 Pump used with 1078 Venturi on Water Tank:

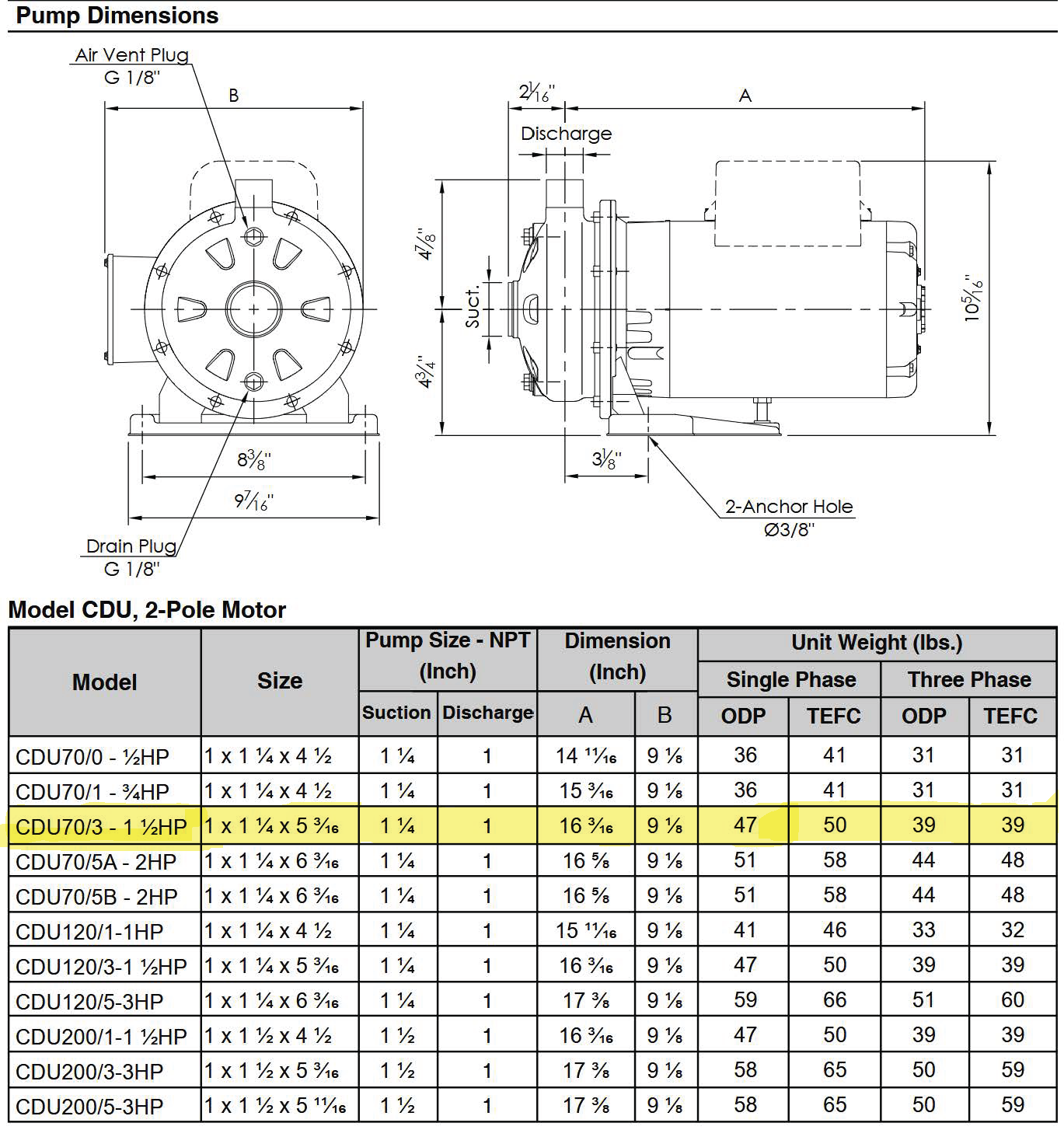

Dimensions:
Downloadable Content:
WP-3 Pump Curve shown with 1078 Venturi
WP-3 Pump Performance Datasheet with 1078 Venturi
WP-3 Pump Performance Datasheet with 1583 Venturi
More Information
| Manufacturer | Oxidation Technologies |
|---|---|
| Inlet Size | 1 1/4 inch |
| Outlet Size | 1 inch |
| Typical Water Flow | 20 GPM @ 40 PSI |
| HP | 1.5 |
| Material of construction | Stainless Steel |
| Lead Time | In Stock |
| Country of Origin | USA |
