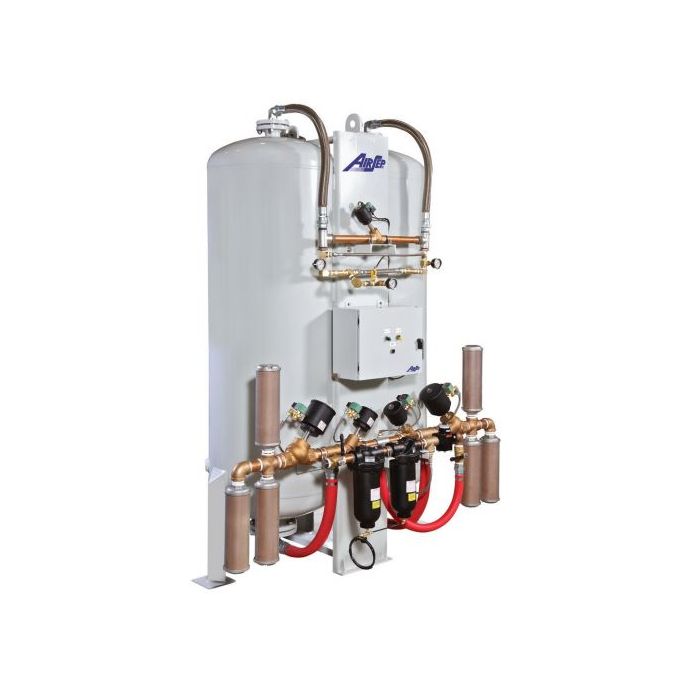

AS-P

AS-P Oxygen Generator will produce 2000-2300 SCFH oxygen at 93% purity at 45-65 PSI of pressure.
- SKU
- AS-P
Description / AS-P
AS-P Oxygen Generator is an industrial oxygen concentrator great for continuous oxygen production. AirSep Alpha-Series Oxygen Generators produce from 20 to 5,000 cubic feet of oxygen per hour at up to 95.5% oxygen concentration. When electricity and a source of compressed air is supplied, these dependable machines can provide oxygen for any application. This compressed air is separated by Pressure Swing Adsorption (PSA).
Features:
-Independent Compressed Air Source
-Microprocessor Controlled
-Low-Operating Cost
-Automatic and Unattended Operation
-Easy to Install and Maintain
-Optional NEMA 4 Touchscreen Control Panel
Product Characteristics:
Product Flow | 2000-2300 SCFH |
Product Pressure | 45-65 PSI |
Product Concentration | 93% |
Product Dew Point | -100°F (-73°C) |
Dimensions (W x D x H) | 85 x 64 x 111 in (216 x 163 x 282 cm) |
Weight | 6250 lbs (2835 kg) |
Physical Connections Compressed Air Inlet Product Gas Outlet |
1.5" FNPT 3/4" FNPT |
Ambient Operating Conditions |
Put Oxygen Generator in well-ventilated area that is protected from weather elements. Temperature should remain between 40°F - 104°F (4°C - 40°C) |
Feed Air Requirements |
Clean and Dry “Plant Air” (Class 5.6.5 per ISO 8573.1) Pressure: 90 psig (621 kPa) minimum Temperature: 122°F (50°C) maximum |
Control Power Requirements | 120 V ~ ±10%, 50/60 Hz, 3.0 A or 220 V ~ ±10%, 50/60 Hz, 1.0 A |
Typical Applications:
Manufacturing
-Cutting/Brazing/Sodering
-Thermal/Chemical Oxidation
Medical
-Hospital Systems
Environmental
-Ozone (Generator) Feed Gas
-Environmental Remediation
-Waste/Water Treatment
Glass
-Glass Work/Manufacturing/Blowing
Additional
-Fish Farming
What is Pressure Swing Adsorption (PSA):
Clean, dry compressed air is fed into the first molecular sieve bed. Nitrogen is adsorbed, while oxygen is allowed to flow through. When the sieve in the first bed becomes full of nitrogen, the airflow is then directed into the second bed. As the second bed separates the oxygen from the nitrogen, the first bed vents its nitrogen into the atmosphere. Compressed air is once again fed into the first bed, and the process is repeated continuously. A constant flow of oxygen is reliably produced.
More information on How Oxygen concentrators Work available HERE
Specifications:
- Flow up to 127 SCFH (60 LPM) oxygen
- Rated burst pressure 100 PSI
- Integrated display
- Relay alarm for low oxygen purity
- Analog or digital output
- Optional remote monitoring (wireless monitoring & data logging kit)
- Optional visual strobe light
- Optional audible alarM
- Calibrated at atmospheric pressure (can be calibrated for up to 25 PSI upon request).
You can purchase replacement/maintenace parts for your AS-P here.
Downloads:
More Information
Manufacturer | Air Sep |
---|---|
Listing Description | 2000-2300 SCFH @ 45-65 PSI |
Internal Compressor | No |
O2 Delivery PSI | 45+ PSI |
Nominal Gas Flow Rate | 2000-2300 SCFH |
Operating Pressure | 45-65 PSI |
Max Pressure | 65 PSI |
Gas Connections | 3/4" Female NPT |
Dimensions (LxWxH) | 85" wide x 64" deep x 111" tall |
Operational RH Range | 0-85% humidity |
Operational Temperature Range | 40 - 104-deg F |
Power Requirements | 120 V ~ ±10%, 50/60 Hz, 3.0 A or 220 V ~ ±10%, 50/60 Hz, 1.0 A |
Lead Time | 2-weeks |
Warranty | 1 Year |
Country of Origin | USA |
Oxygen Production | 251 + SCFH |
Description | Requires 400 CFM air @ 90 PSI |
