AS-W

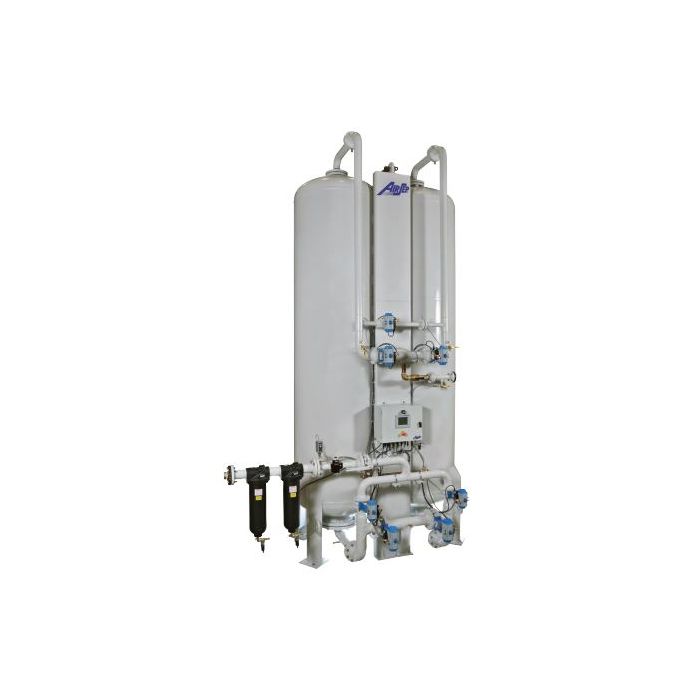

AS-W Oxygen Generator will produce 4000-4600 SCFH oxygen at 93% purity at 45-65 PSI of pressure.

SKU
AS-W

Customizable Options:

Related Products

Description / AS-W

AS-A Oxygen Generator is an industrial oxygen concentrator great for continuous oxygen production.  AirSep Alpha-Series Oxygen Generators produce from 20 to 5,000 cubic feet of oxygen per hour at up to 95.5% oxygen concentration. When electricity and a source of compressed air is supplied, these dependable machines can provide oxygen for any application. This compressed air is separated by Pressure Swing Adsorption (PSA).



Features:

     -Independent Compressed AIr Source

     -Microprocessor Controlled

     -Low-Operating Cost

     -Automatic and Unattended Operation

     -Easy to Install and Maintain

     -Includes NEMA 4 Touchscreen Control Panel and Oxygen Monitor



Product Characteristics:

Product Flow 4000-4600 SCFH
Product Pressure 45-65 PSI
Product Concentration 93%
Product Dew Point -100°F (-73°C)
Dimensions (W x D x H) 122 x 87 x 196 in (310 x 221 x 498 cm)
Weight 17012 lbs (7717 kg)

Physical Connections

Compressed Air Inlet

Product Gas Outlet



3" 150# ANSI Flange

1" FNPT

Ambient Operating Conditions

Put Oxygen Generator in well-ventilated area that is protected from weather elements.

Temperature should remain between 40°F - 104°F (4°C - 40°C)

Feed Air Requirements

Clean and Dry “Plant Air” (Class 5.6.5 per ISO 8573.1)

Pressure: 90 psig (621 kPa) minimum

Temperature: 122°F (50°C) maximum

Control Power Requirements 120 V ~ ±10%, 50/60 Hz, 3.0 A or 220 V ~ ±10%, 50/60 Hz, 1.0 A



Typical Applications:

Manufacturing

     -Cutting/Brazing/Sodering

     -Thermal/Chemical Oxidation

Medical

     -Hospital Systems

Environmental

     -Ozone (Generator) Feed Gas

     -Environmental Remediation

     -Waste/Water Treatment

Glass

     -Glass Work/Manufacturing/Blowing

Additional

     -Fish Farming



What is Pressure Swing Adsorption (PSA):

Clean, dry compressed air is fed into the first molecular sieve bed.  Nitrogen is adsorbed, while oxygen is allowed to flow through.  When the sieve in the first bed becomes full of nitrogen, the airflow is then directed into the second bed.  As the second bed separates the oxygen from the nitrogen, the first bed vents its nitrogen into the atmosphere.  Compressed air is once again fed into the first bed, and the process is repeated continuously.  A constant flow of oxygen is reliably produced.

More information on How Oxygen concentrators Work available HERE



Oxygen Purity Switch:

Specifications:

- Flow up to 127 SCFH (60 LPM) oxygen

- Rated burst pressure 100 PSI

- Integrated display

- Relay alarm for low oxygen purity

- Analog or digital output

- Optional remote monitoring (wireless monitoring & data logging kit)

- Optional visual strobe light

- Optional audible alarM

- Calibrated at atmospheric pressure (can be calibrated for up to 25 PSI upon request).



Downloads:

AS-W User Manual

AS-W Specifications

More Information

Manufacturer Air Sep
Listing Description 4000-4600 SCFH @ 45-65 PSI
Internal Compressor No
O2 Delivery PSI 45+ PSI
Nominal Gas Flow Rate 4000-4600 SCFH
Operating Pressure 45-65 PSI
Max Pressure 65 PSI
Gas Connections 1" Female NPT
Dimensions (LxWxH) 122" wide x 87" deep x 196" tall
Operational RH Range 0-85% humidity
Operational Temperature Range 40 - 104-deg F
Power Requirements 120 V ~ ±10%, 50/60 Hz, 3.0 A or 220 V ~ ±10%, 50/60 Hz, 1.0 A
Lead Time 2-weeks
Warranty 1 Year
Country of Origin USA
Oxygen Production 251 + SCFH
Description Requires 800 CFM air @ 90 PSI
