Ambient Destruct Media (small)

Production

The honeycomb Ozone Filter, is made by high temeperature heating treatment process with alum. honeycomb coated by MnO Catalyst. Ozone would be translated into oxygen for an instant, while the filter is impacted by the ozone in air.

Advantage

• Ozone can be decomposed by catalyst filter at room temperature.
• The lower pressure drop can be obtained due to simple filter construction.
• When the filter working space is limited, to increasing filter efficiency can be realized by changing the hole density of the honeycomb filter.
• The more cleaning air working in the system, the more long filter life could be obtained.

Detailed Parameters

Catalyst Function:

• Change O3 to O2 rapidly at room temperature.

Active Component of Catalyst:

• Manganese based composite metal oxides

Appearance of Catalyst Filter

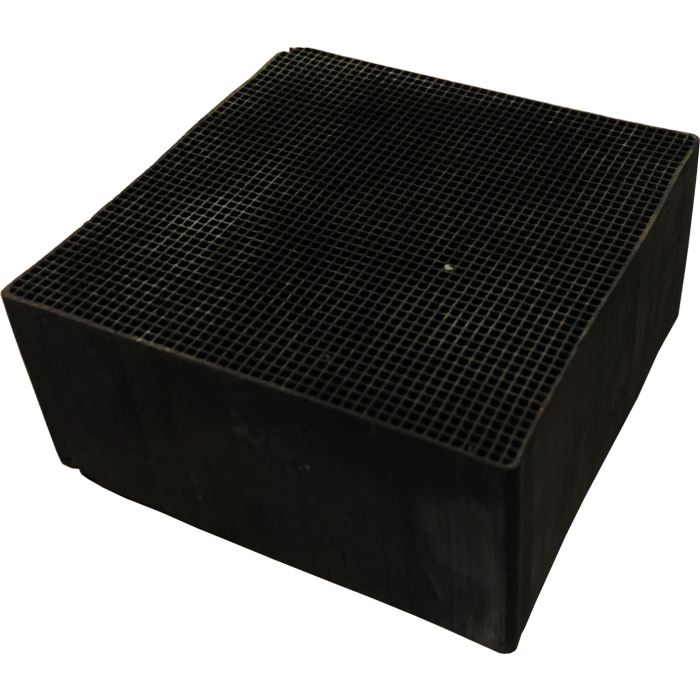

• Honeycomb filter 100x100x50mm. 150 holes per square inch

Surface Area of Activated Carbon:

• >1500m2/g

Purification Efficiency:

• 95-99% (Depending on working conditions and quantity of catalyst filters used in one section.)

Filter Life-Span:

• >10,000 hours (under the clean air system)

Storage:

• Keep dry at room temperatures
