CH-1

Details:

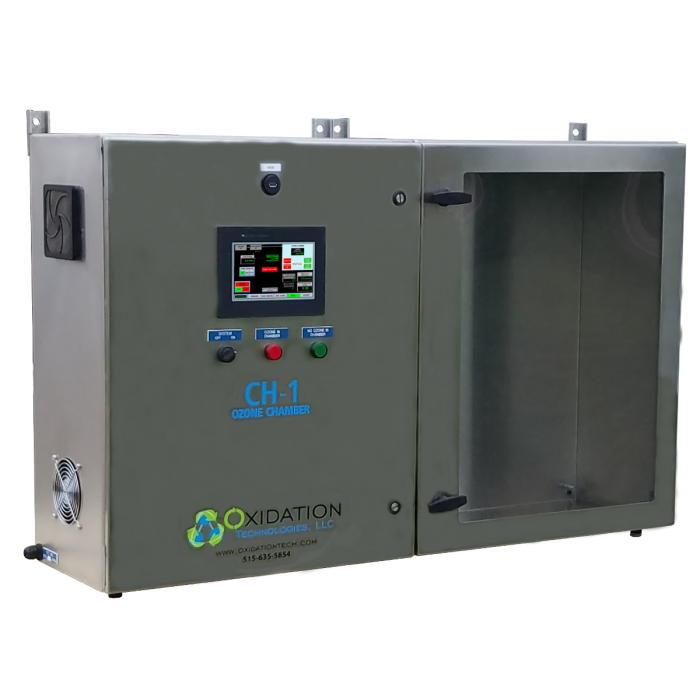

The CH-1 Ozone Chamber is designed to maintain ozone levels of 25-200 PPHM, and is primarily used in accordance with ASTM D 1149 for testing materials.

This system is made out of stainless steel and includes a large window to view the items tested in real time.

Ozone and temperature levels are automatically maintained using PID control in the control system.

The CH-1 Ozone Chamber has a very simple touch screen interface allowing users to enter Ozone and Exposure Time set points.

Each exposure test can record the data and be exported to a computer.

Features:

Automated Operation - Completely automated operation - choose your desired ozone level and treatment time, then press START.  Touch screen user interface will display current and past operation during operation; however, ho human interaction is required during the process.

Ozone and Temperature Control - Ozone and temperature levels are automatically maintained using PID control in the control system.

Infinite Ozone Range - Any ozone level desired can be selected with the touch screen use interface.  Enter any level of ozone from 25 - 200 pphm (.25 - 2 ppm).

Precise Ozone Measurement - Ozone levels in the chamber are measured by a UV based ozone analyzer.  Ozone detection accuracy of 2% is standard with a resolution of 1 ppb.  Ozone levels are displayed on the user interface and logged for later review.  The ozone measurement obtained by the UV ozone analyzer is used by the PLC control system to increase or decrease ozone levels in the chamber by altering power output to the integrated ozone generator.

Testing standards - The CH-1 Ozone Chamber is designed specifically for ASTM D 1149, ISO1431, and K6259 testing standards.  We have taken these standards into consideration when developing the automation system and environmental chamber.

Integrated Data Logging - Data logging is a standard part of this system.  Trend graphs will be available on the color display to visually determine past ozone levels and temperatures.  Data can also be downloaded to your PC and saved as a .CSV file for reporting purposes.  All alarm conditions and potential faults are also logged on the system

Remote Monitoring - Optional remote monitoring allows the system to be connected to the internet and controlled remotely from any location in the world.  The complete color display is available on your PC, tablet, or even smartphone.   The same operations performed while in front of the machine can be performed remotely.  All logged data can also be viewed and downloaded remotely if desired.

Ozone Destruct Cycle - When pre-set testing time is complete the CH-1 ozone chamber automatically enters an ozone destruct cycle.  In this cycle, the ozone inside the chamber is safely catalyzed back to oxygen with an ozone destruct device.  The user interface display will provide an ambient ozone level inside the chamber and alert when it is safe to enter the chamber.

Minimal Maintenance - Maintenance on the CH-1 chamber is very minimal.  No major replacement parts are required.  Regular filter changes, and monitor calibrations are required annually.

Made in the USA - The CH-1 Ozone Chamber is assembled completely in the USA.  The Ozone Generator, UV ozone analyzer, and control system are all built in the USA with the highest manufacturing standards.  Service and support for the CH-1 chamber is available from our service reps and distribution network.

Operation

Operation of the CH-1 Ozone Chamber is simple and automated.  Place the objects to be tested inside the large chamber in the required configuration for testing.  On the touch screen user interface choose the ozone level, and temperature required, set the desired ozone treatment time, and press START.  The system will automatically generate and maintain the proper ambient ozone level for the required time interval.  When the treatment time is finished, an ozone destruct cycle will begin to safely catalyze all ozone back to oxygen quickly.

Optional Chamber Dimensions

Larger systems are custom built to exact preferred dimensions. For more information visit the CH-3 webpage.

Downloads:

CH-1 Brochure

Ozone Exposure Video Demonstration

Video Overview

Applications:

     -Testing materials for accelerated age testing

     -Scientific studies/research

     -Surface Adhesion Testing

     -Product quality control

     -Research and Development
