UV-106-L Ozone Analyzer

Low range precision UV Ozone Analyzer.  Range 0-100 ppm, with resolution of 0.0001 ppm (0.1 ppb) resolution allows for low range ozone measurement with great accuracy in a compact, easy to use package.

Ozone Information

$4,600.00

The UV-106-L is a low range ozone analyzer featuring less than ppb resolution.  Ozone levels are measured at 0.1 ppb and can read ozone up to 100 ppm.

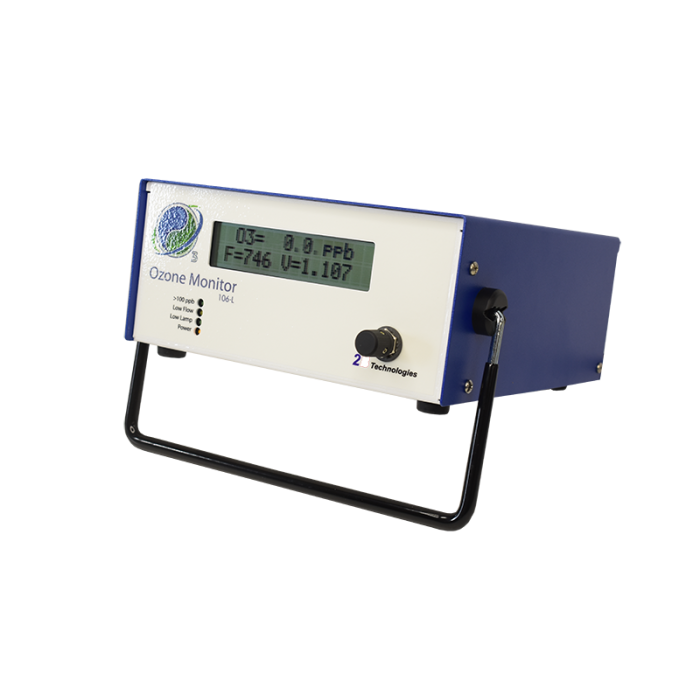

Bench mount ozone analyzer is compact and easy to use.  The UV-106-L can be purchased in either the bench mount or NEMA enclosure.

Integrated sample pump will pull a sample of ozone from your process or location into the analyzer and measure ozone in that gas stream.  A UV lamp and receptor are used to determine the quantity of ozone in gas by determining the rate of ozone absorption by the UV lamp.  This method of ozone detection will offer accurate detection of ozone at low levels (down to 0.1 ppb) while eliminating most cross-sensitivity from other gasses.



Features

  • Measurement based on UV absorption
  • Low power consumption; can be battery operated
  • Internal data logger with real time clock
  • On-board microprocessor with interactive menus includes data averaging options of 10 s, 1 m, 5 m and 1 hr
  • USB and RS-232 output of time/date, O3 concentration, internal temperature and pressure
  • Analog output (0-2.5 V and 4-20 mA) of ozone concentration in user selected units
  • Two level relay for control purposes (e.g., control of ozone source or turn warning light on and off)
  • Long-life pump (15,000 hr)

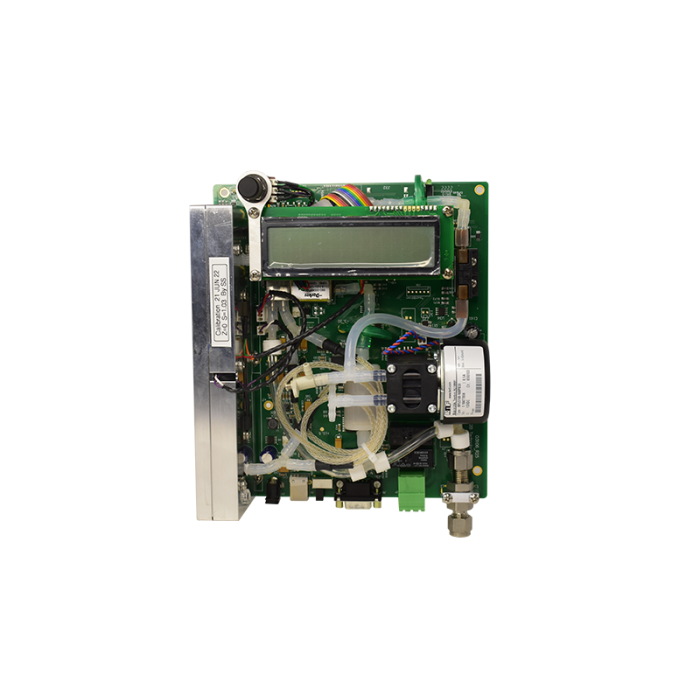

The Model UV-106 was designed as an "Ozone Analyzer on a board" in which nearly all of the components are mounted directly to the printed circuit board.  Therefore, the UV-106 can be purchased without an enclosure for OEM applications.

UV-106L OEM Ozone Analzyer

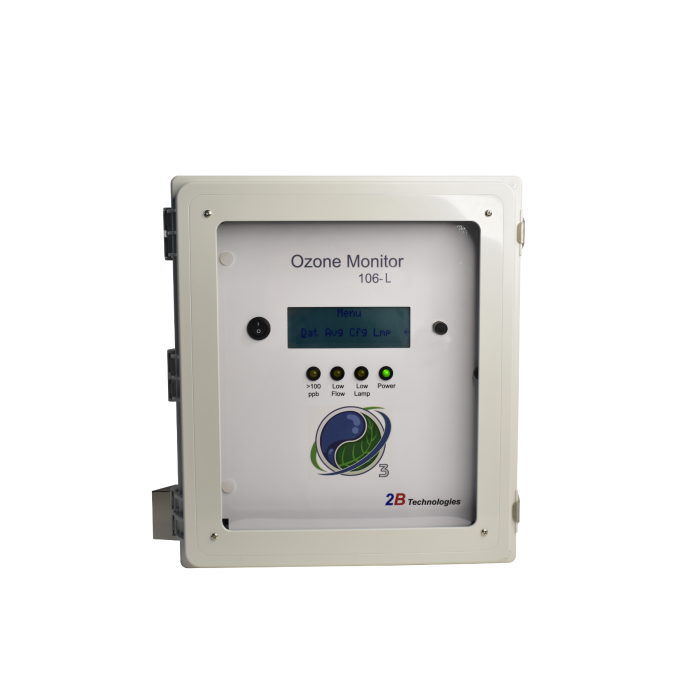

For applications where a wall mount analyzer, or rugged enclosure for harsh environments are a better fit, the NEMA enclosure can be used for the UV-106 Ozone Analyzer.
UV-106L NEMA Ozone Analzyer


Filters

We highly recommend replacing the filter frequently to prevent contamination of the flow path by particulate matter.



Picture of Filter Housing: Product: FILTERHS

Downloads

UV-106-L Manual
More Information
Manufacturer 2B Technologies
Call For Price No
Gas Ozone (O3)
Range 0-100 ppm
Resolution 0.0001 ppm
Response Time 10 seconds
Sensor type UV Analzyer
Sampling Method Fan
Alarms Relays
Power Requirements 12 VDC with supplied adapter
Field Replaceable Battery No
Warranty 1 Year
