ATL-160
Magnum-160 Ozone Generator is an extremely efficient air cooled ozone generator.
160 g/hr ozone from only 30 LPM Oxygen @ 6.6% by weight.
- SKU
- ATL-160
Related Products
Description / ATL-160

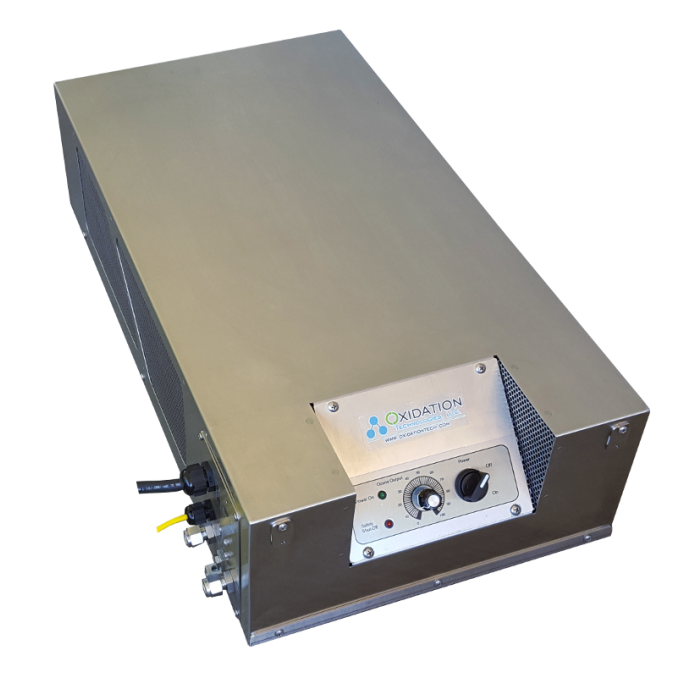

The ATL-160 Ozone Generator is an air-cooled ozone generator designed to produce 160 g/hr ozone from only 30 LPM of oxygen. This extremely efficient ozone generator is great for water treatment due to the high ozone concentration.
When high ozone concentrations are required for high dissolved ozone levels the ATL-160 is a great option. No other air-cooled ozone generator on the market can provide as high of ozone concentrations as the ATL-160 Ozone Generator.
Features:
-Low oxygen requirements for ozone generation, very efficient
-High-pressure cell produces ozone under pressures up to 100 PSI
-Variable ozone output with onboard dial, or remote control options
-Remote control safety shut-off
-Low operating costs with low power requirements and oxygen requirements
-Stainless steel enclosure
-Optional bench mount or rack mount enclosures to best fit your application
Materials of Constructions:
-Enclosure: Brushed Stainless Steel/Aluminum
-High Precision Machined Ozone Generator Cell tested at up to 150 PSIG for leaks
-O3/O2 Gas Tubing: PTFE/304 Stainless Steel/Brass
Ozone Generator Performance Chart:
18.6 g/hr @ 11.6% by weight from 2.0 LPM O2 flow
58.6 g/hr @ 10.49% by weight from 7.0 LPM O2 flow
72.1 g/hr @ 9.02% by weight from 10.0 LPM O2 flow
94.7 g/hr @ 7.9% by weight from 15.0 LPM O2 flow
120 g/hr @ 7.5% by weight from 20.0 LPM O2 flow
142 g/hr @ 7.1% by weight from 25.0 LPM O2 flow
159 g/hr @ 6.6% by weight from 30.0 LPM O2 flow
173 g/hr @ 6.2% by weight from 35.0 LPM O2 flow
Common Applications:
-Water Treatment
-Groundwater Remediation
-Bottled water
-Aquaculture
-Cooling Tower
-Grain Treatment
-Odor Removal
-Wastewater Treatment
-Pharmaceutical
-Food Processing
Downloads:
More Information
| Feed Gas | Oxygen |
|---|---|
| Nominal Gas Flow Rate | 30 LPM oxygen flow to produce 160 g/hr ozone. Higher flows produce more ozone. |
| Operating Pressure | 20 - 50 PSI nominal (higher pressure units available) |
| Max Pressure | 50 PSI standard, up to 100 PSI optional |
| Manufacturer | Absolute Ozone |
| Cooling Method | Air Cooled |
| Corona Cell | Aluminum , Ceramic Plate |
| Gas Connections | 1/4" compression fittings |
| Dimensions (LxWxH) | 7" x 16" x 24" |
| Operational Temperature Range | 35 - 95-deg F |
| Max O3 % | 10% + |
| Power Requirements | 208-230 VAC, 50/50 Hz, 3-phase - 10 amp |
| Lead Time | 2-weeks |
| Warranty | 5 Year |
| Country of Origin | Canada |
| Description | Enclosure Dimensions: 24-inch height x 16-inch width x 7-inch depth Generator Weight: 51 lbs. Shipping Weight: 56 lbs Shipping Dimensions: 26-inch x 20-inch x 10-inch |
| Ozone Output | 160 g/hr ozone from 35 LPM oxygen @ 6.2% by weight |
| Unit Features | - Great for odor removal, grain treatment, aquaculture and more - Ozone output with onboard dial - High pressure cell produces ozone under pressures up to 100 PSI - Oxidation Technologies can be repair and uprade these in-house |
