ATL-60
- SKU
- ATL-60
Description / ATL-60

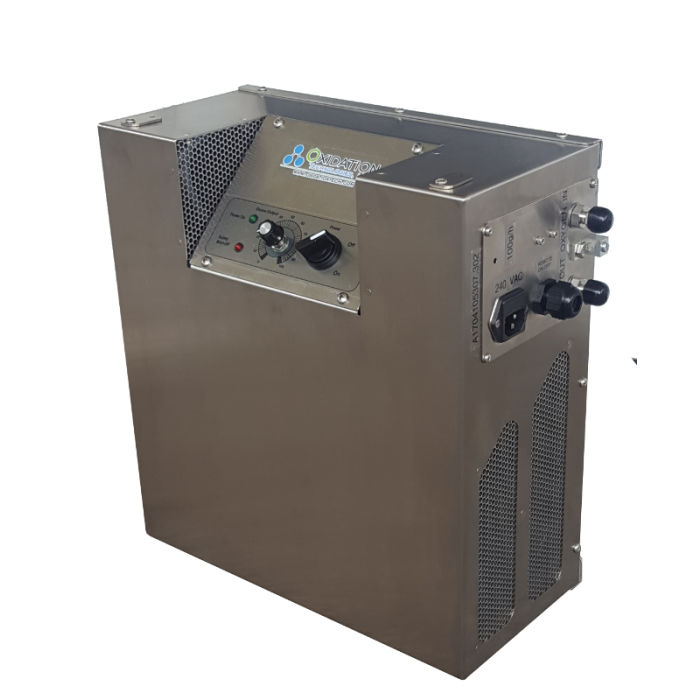

The ATL-60 Ozone Generator is an air-cooled ozone generator designed to produce 60 g/hr ozone from only 10 LPM of oxygen. This extremely efficient ozone generator is great for water treatment due to the high ozone concentration.
When high ozone concentrations are required for high dissolved ozone levels the ATL-60 is a great option. No other air-cooled ozone generator on the market can provide as high of ozone concentrations as the ATL-60 Ozone Generator.
Features:
-Low oxygen requirements for ozone generation, very efficient
-High-pressure cell produces ozone under pressures up to 100 PSI
-Variable ozone output with onboard dial, or remote control options
-Remote control safety shut-off
-Low operating costs with low power requirements and oxygen requirements
-Stainless steel enclosure

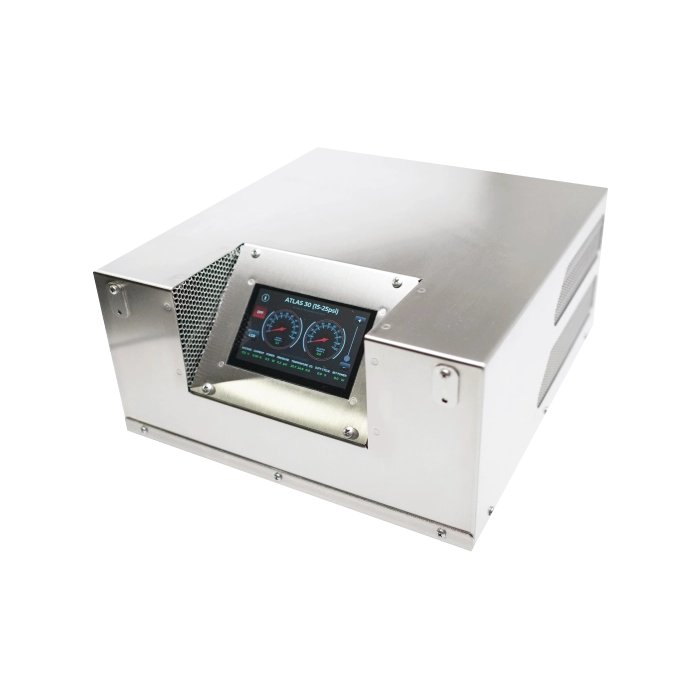

-Optional bench mount or rack mount enclosures to best fit your application
Materials of Constructions:
-Enclosure: Brushed Stainless Steel/Aluminum
-High Precision Machined Ozone Generator Cell tested at up to 150 PSIG for leaks
-O3/O2 Gas Tubing: PTFE/304 Stainless Steel/Brass
Ozone Generator Performance Chart:
5.5 g/hr @ 14% by weight from 0.5 LPM O2 flow
9.8 g/hr @ 12.3% by weight from 1.0 LPM O2 flow
32.9 g/hr @ 10.3% by weight from 4.0 LPM O2 flow
46 g/hr @ 9.6% by weight from 6.0 LPM O2 flow
53.4 g/hr @ 8.3% by weight from 8.0 LPM O2 flow
59.4 g/hr @ 7.4% by weight from 10.0 LPM O2 flow
62.5 g/hr @ 6.5% by weight from 12.0 LPM O2 flow
Common Applications:
-Water Treatment
-Groundwater Remediation
-Bottled water
-Aquaculture
-Cooling Tower
-Grain Treatment
-Odor Removal
-Wastewater Treatment
-Pharmaceutical
-Food Processing
Downloads:
More Information
| Call For Price | No |
|---|---|
| Feed Gas | Oxygen |
| Nominal Gas Flow Rate | 10 LPM oxygen flow to produce 60 g/hr ozone. Higher flows produce more ozone. |
| Operating Pressure | 20 - 50 PSI nominal (higher pressure units available) |
| Max Pressure | 50 PSI standard, up to 100 PSI optional |
| Manufacturer | Absolute Ozone |
| Cooling Method | Air Cooled |
| Corona Cell | Aluminum , Ceramic Plate |
| Gas Connections | 1/4" compression fittings |
| Dimensions (LxWxH) | 7" x 19" x 14" |
| Operational Temperature Range | 35 - 95-deg F |
| Max O3 % | 10% + |
| Power Requirements | 120 VAC 8-amp 50/60 Hz. (220 VAC 6-amp 50/60Hz power optional) |
| Lead Time | 2-Weeks |
| Warranty | 5 Year |
| Country of Origin | Canada |
| Description | Enclosure Dimensions: 14-inch height x 19-inch width x 7-inch depth Generator Weight: 32 lbs. Shipping Weight: 38 lbs Shipping Dimensions: 19-inch x 24-inch x 11-inch |
| Ozone Output | 60 g/hr ozone from 10 LPM oxygen @ 7.4% by weight |
| Unit Features | - Great for odor removal, grain treatment, aquaculture and more - Ozone output with onboard dial - High pressure cell produces ozone under pressures up to 100 PSI - Oxidation Technologies can be repair and uprade these in-house |
