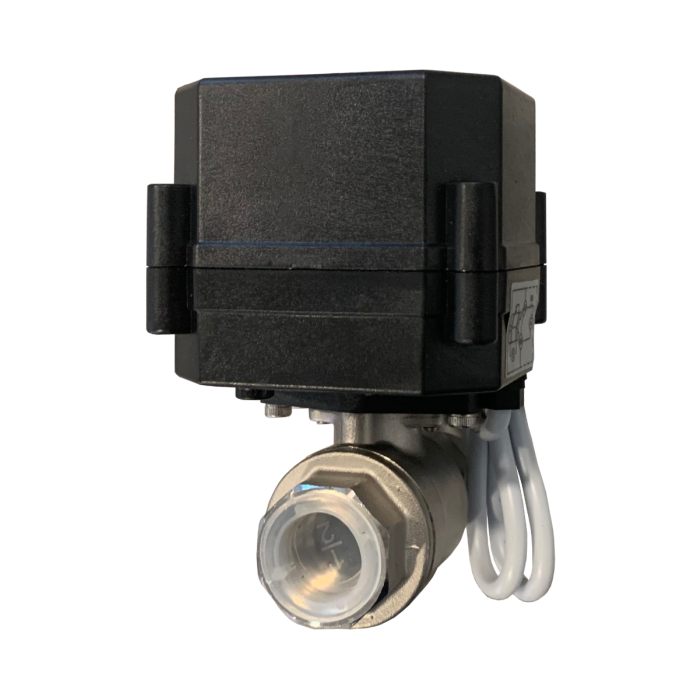

1" Motorized Ball Valve Normally Closed (2-wire)
1" Motorized Ball Valve Normally Closed (2-wire)
The M21SV-series features durable 1” NPT stainless steel valves with FKM seals and a versatile 110–240 VAC actuator. These 2-way, 2-position valves provide unrestricted flow when open and secure shutoff up to 175 psi. Ideal for gravity-fed and pressurized systems, they are available in 2- and 3-wire versions for various applications.
- SKU
- MBV-16-NC 2-wire
- Size
- 1"
- Material of construction
- Stainless Steel
Related Products
Description / 1" Motorized Ball Valve Normally Closed (2-wire)
Ehcotech M21SV-Series Motorized Ball Valves:
The Ehcotech M21SV-series offers reliable, high-performance motorized ball valves designed for general-purpose applications. Featuring a durable 1” NPT stainless steel body with FKM seals, these 2-way, 2-position valves handle pressures from 0 to 175 psi. Available in 2- and 3-wire versions, the valves are powered by a versatile 110 to 240 VAC actuator, making them ideal for both gravity-fed and pressurized systems. With unrestricted flow when open and secure shutoff under pressure when closed, the M21SV-series is built for dependable operation in demanding environments.
Valve Body:
- 1" NTP Female Threads
- 0-215 PSI Press Rating
- Stainless Steel Body
- Stainless Steel Ball
Valve Actuator:
- 110-240 VAC 50/60Hz with automatic voltage detection
- 8 Watt maximum power draw
- Standard cable length: 20"
- Stainless Steel Gears
- Cycle time: 4 seconds

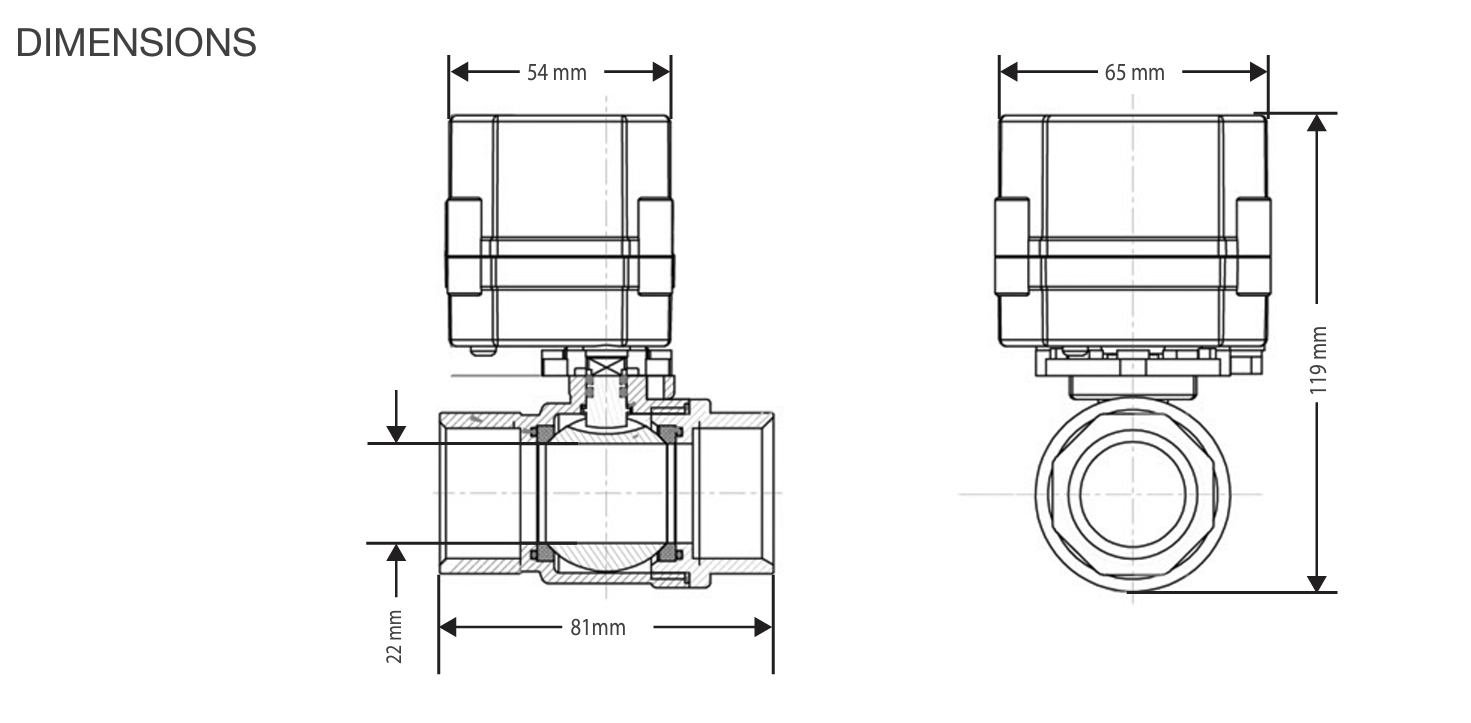

Dimensions:
Downloads:
More Information
| Manufacturer | Oxidation Technologies |
|---|---|
| Listing Description | The M21SV-series features durable 1” NPT stainless steel valves with FKM seals and a versatile 110–240 VAC actuator. These 2-way, 2-position valves provide unrestricted flow when open and secure shutoff up to 175 psi. Ideal for gravity-fed and pressurized systems, they are available in 2- and 3-wire versions for various applications. |
| Features | Stainless Steel |
| Material of construction | Stainless Steel |
| Operating Pressure | 0-215 PSI |
| Max Pressure | 215 PSI |
| Gas Connections | 1" NTP Female Threads |
| Dimensions (LxWxH) | 81mm x 65mm x 119 mm |
| Operational Temperature Range | 0-265 degrees F |
| Power Requirements | 110 to 240 VAC, or 50/60 Hz |
| Lead Time | 2-3 weeks |
| Warranty | 1 Year |
| Size | 1" |
