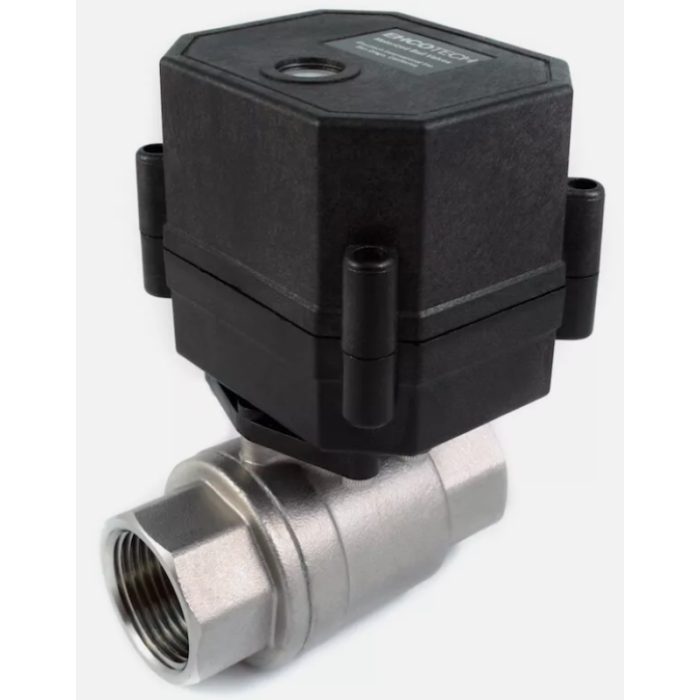

2" Motorized Ball Valve - Normally Closed (3-wire)
2" Motorized Ball Valve - Normally Closed (3-wire)
The 2" Motorized Ball Valve is a robust 2-way, 2-position motorized ball valve with a 3-wire 110 to 240 VAC actuator. Featuring a stainless steel body and 2” NPT ports, it is ideal for gravity-fed and pressurized systems. This valve provides reliable flow control for demanding applications.
- SKU
- MBV-32-NC 3-wire
- Size
- 2"
- Material of construction
- Stainless Steel
Related Products
Description / 2" Motorized Ball Valve - Normally Closed (3-wire)
2” Motorized Ball Valve - Normally Closed (3-Wire):
This general-purpose 2-way, 2-position motorized ball valve features a 3-wire 110 to 240 VAC actuator for reliable control. With a durable stainless steel body and 2” NPT ports, it is ideal for both gravity-fed and pressurized systems. Designed for efficiency and durability, it ensures dependable performance in various applications.
Valve Body:
- 2" NTP Female Threads
- 0-175 PSI Press Rating
- 265 F Max Media Temp
- Stainless Steel Body
- Stainless Steel Ball
Valve Actuator:
- (3 Wire) 110-240 VAC 50/60Hz with automatic voltage detection
- 12 Watt maximum power draw
- Standard cable length: 20"
- Stainless Steel Gears
- Cycle time: 8 seconds

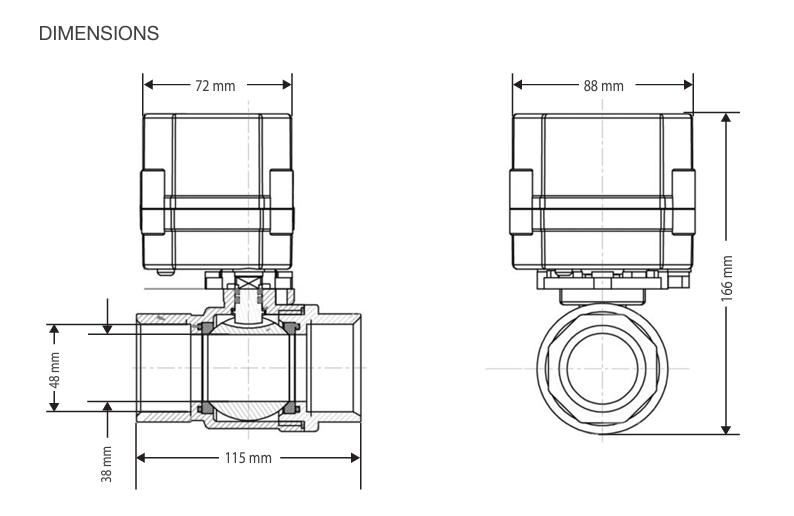

Dimensions:
Downloads:
More Information
| Manufacturer | Oxidation Technologies |
|---|---|
| Listing Description | The 2" Motorized Ball Valve is a robust 2-way, 2-position motorized ball valve with a 3-wire 110 to 240 VAC actuator. Featuring a stainless steel body and 2” NPT ports, it is ideal for gravity-fed and pressurized systems. This valve provides reliable flow control for demanding applications. |
| Material of construction | Stainless Steel |
| Operating Pressure | 0-215 psi |
| Max Pressure | 215 psi |
| Gas Connections | 2" NTP Female Threads |
| Operational Temperature Range | 0-265 degrees F |
| Power Requirements | 110 to 240 VAC, or 50/60 Hz |
| Lead Time | 2-3 weeks |
| Warranty | 1 Year |
| Size | 2" |
