OG-5000

OG-5000 Oxygen Generator will produce 5000 SCFH oxygen at 93% purity from 1,000 CFM compressed air at 45 PSI of pressure.

SKU
OG-5000

Customizable Options:

Related Products

Description / OG-5000

OG-5000 Oxygen Generator is an industrial oxygen concentrator great for continuous oxygen production.  Compressed air must be supplied to the OG-5000.  This compressed air is separated via Pressure Swing Absorption (PSA) technology.  Oxygen is captured in a storage tank and can be supplied to the point of use at any flow rate required up to 4000 SCFH at pressures of 45 - 60 PSI.



Features:

Dependable:

OG-5000 Oxygen Concentrator is built to provide thousands of hours of continuous, reliable service. The Zeolite sieve is factory sealed in solid steel tanks and rarely needs replacement. With very few moving parts, our generators are built to provide thousands of hours of continuous, reliable service Routine maintenance is as simple as changing an air filter.

Durable

OG-5000 is built with precision-welded tank assemblies (ASME coded) and oxygen-clean brass tubing and valves which allow them to operate in extreme conditions.

Made in the USA

Every PLC-controlled generator is assembled and tested in our North Tonawanda, NY production facility.



What is Pressure Swing Adsorption (PSA):

Clean, dry compressed air is fed into the first molecular sieve bed.  Nitrogen is adsorbed, while oxygen is allowed to flow through.  When the sieve in the first bed becomes full of nitrogen, the airflow is then directed into the second bed.  As the second bed separates the oxygen from the nitrogen, the first bed vents its nitrogen into the atmosphere.  Compressed air is once again fed into the first bed, and the process is repeated continuously.  A constant flow of oxygen is reliably produced.

More information on How Oxygen concentrators Work available HERE

The OG-5000 Oxygen Concentrator requires compressed air for operation.  Typical installation of the entire system is outlined below.

  • Air compressor will provide at least 1,000 CFM compressed air at 90PSI or greater

  • Particulate filter will remove most dust, and oil from air stream

  • Refrigerant air dryer is used to remote moisture from air and provide 40-deg F dew point

  • Coalescing filter will remove any final oil mist and moisture from air flow

  • Air storage tank is necessary to provide sufficient air storage for oxygen generator purging

  • Oxygen Generator will purge nitrogen from air and capture oxygen

  • Oxygen storage tank will store oxygen and provide consistent oxygen flow and pressure to point of use

  • We also suggest installing an oxygen filter downstream of the oxygen storage tank to filter any zeolite dust from the oxygen concentrator

Oxygen generator layout



External components of the OG-5000 shown below.  OG-5000 is a simple system to install and operate.

Oxygen generator components





Oxygen Purity Switch:



Specifications:

- Flow up to 127 SCFH (60 LPM) oxygen

- Rated burst pressure 100 PSI

- Integrated display

- Relay alarm for low oxygen purity

- Analog or digital output

- Optional remote monitoring (wireless monitoring & data logging kit)

- Optional visual strobe light

- Optional audible alarM

- Calibrated at atmospheric pressure (can be calibrated for up to 25 PSI upon request).



Downloads:

OG-5000 Specifications

More Information

Manufacturer OGSI
Listing Description 5000 SCFH @ 45 PSI
Internal Compressor No
O2 Delivery PSI 45+ PSI
Nominal Gas Flow Rate 5000 SCFH
Operating Pressure 45-60 PSI
Max Pressure 65 PSI
Gas Connections Air inlet 3" NPT, Oxygen outlet 3/4" Female NPT
Dimensions (LxWxH) 97" wide x 72" deep x 192" tall
Operational RH Range 0-85% humidity
Operational Temperature Range 35 - 95-deg F
Power Requirements 120 VAC, 60 Hz, 1-phase, 6amp (220 VAC optional)
Lead Time 2-weeks
Warranty 1 Year
Country of Origin USA
Oxygen Production 251 + SCFH
Description Requires 1,000 CFM air @ 90 PSI

We found other products you might like!

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.

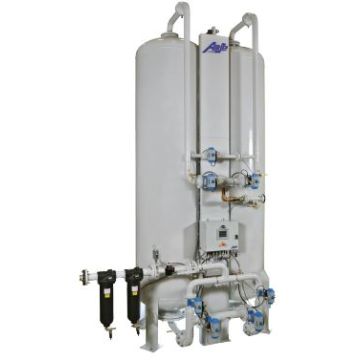

AS-Z
Call For Price
OXM-12L Oxygen Purity Meter
Call For Price

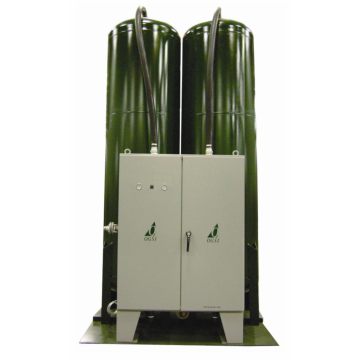

OG-4000 Oxygen Generator
