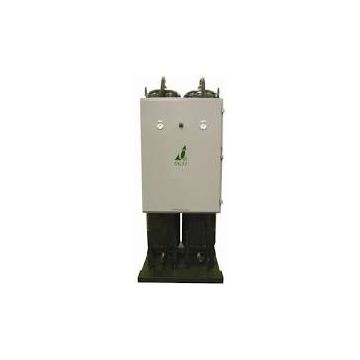

OXO-300

OXO-300 Oxygen Generator will produce 275 - 350 SCFH oxygen at 93% purity at 45-55 PSI of pressure.

$17,250.00

OXO-300 Oxygen Generator is an industrial oxygen concentrator great for continuous oxygen production.  Compressed air must be supplied to the OXO-300.  This compressed air is separated via Pressure Swing Absorption (PSA) technology.  Oxygen is captured in a storage tank and can be supplied to the point of use at any flow rate required up to 350 SCFH at pressures of 45 - 55 PSI.



Features:

Simple to Operate

The OXO-300 Oxygen Concentrator can be operated in automatic operation allowing for automated operation of the air compressor and oxygen concentrator.  The OXO-300 has a built-in pressure switch that will start/stop the oxygen concentrator based on oxygen pressures in the downstream oxygen storage tank.

Using a quality air compressor with an air pressure switch will allow for automated air compressor operation providing for a completely automated system.

No human oversight is required for operation, simply consume oxygen gas as needed, the OXO-300 will start/stop to maintain set oxygen pressure in the oxygen storage tank.



Simple to Install

The OXO-300 Oxygen Concentrator is shipped with an oxygen storage tank that is equipped with all required valves, pressure gauges and tubing.  Set-up the OXO-300, connect one tube from the tank to the OXO-300 and supply the OXO-300 with compressed air.

Compressed air is supplied via 1" ID Tubing from the compressed air source.  Simply connect compressed air from the compressed air tank that is installed in your facility or supplied as a dedicated unit to this system.

No wires or electrical connectors other than the 120 VAC power cord for the OXO-300 is required for operation.



Dependable:

The OXO-300 Oxygen Concentrator is built to provide thousands of hours of continuous, reliable service. The Zeolite sieve is factory sealed in solid steel tanks and rarely needs replacement. With very few moving parts, our oxygen concentrators are built to provide thousands of hours of continuous, reliable service.  Routine maintenance consists of filter replacement every few months and rebuilding valves every 16,000 hours of operation.  Sieve material will require replacement after 5-10 years depending upon air quality.



Durable

OXO-300 is built with precision-welded tank assemblies (ASME coded) with stainless steel screens to hold sieve material for air separation.  Air/oxygen is plumbed through brass, and stainless steel valves for purging an oxygen oxygen capture.



Made in the USA

The OXO-300 Oxygen Concentrator is manufactured by Oxidation Technologies.  Tanks and skid are welded and powder coated locally (within 30 miles). All final assembly, and wiring is completed in our factory in Inwood, IA.





Specifications:

Product Flow 275 - 350SCFH
Product Pressure 45-55 PSI
Product Concentration 93% +/- 2% nominal
Product Dew Point -100°F (-73°C)
Dimensions (W x D x H) 34" wide x 26" deep x 79" tall
Weight 750 lbs

Physical Connections

Compressed Air Inlet

Product Gas Outlet



3/4" Female NPT

3/8" Femlae NPT

Feed Air Requirements

Flow Rate = Based on O2 flow settings

Pressure: 90 psig minimum

Temperature: 122°F maximum

Power Requirements 120 VAC 50/60 Hz, 3.0 Amp  (220 VAC, and 24 VDC optional)





Typical Applications:

  • Ozone Generator feed-gas
  • Wastewater treatment (odor)
  • Biogas
  • Fish Farming, Aquaculture, and Hydroponics
  • Manufacturing: cutting, brazing, soldering, thermal, chemical oxidation
  • Glass work, glass blowing



Air-Flow Demand:

O2 Product Flow Feed Air Requirement
275 SCFH O2 Flow 48 CFM Air
300 SCFH O2 Flow 55 CFM Air
325 SCFH O2 Flow 61 CFM Air
350 SCFH O2 Flow 67 CFM Air



Installation:

The OXO-300 can be supplied with compressed air that is clean and dry from an on-site source.  However, if necessary a dedicated air compressor can be provided to provide compressed air to the OXO-300 oxygen concentrator.

Packaged air compressors are available with integrated air filtration, refrigerant air dryers, all tank mounted to an air receiver tank.  These air compressors are automated with pressure switches to operate automatically as compressed air is demanded.

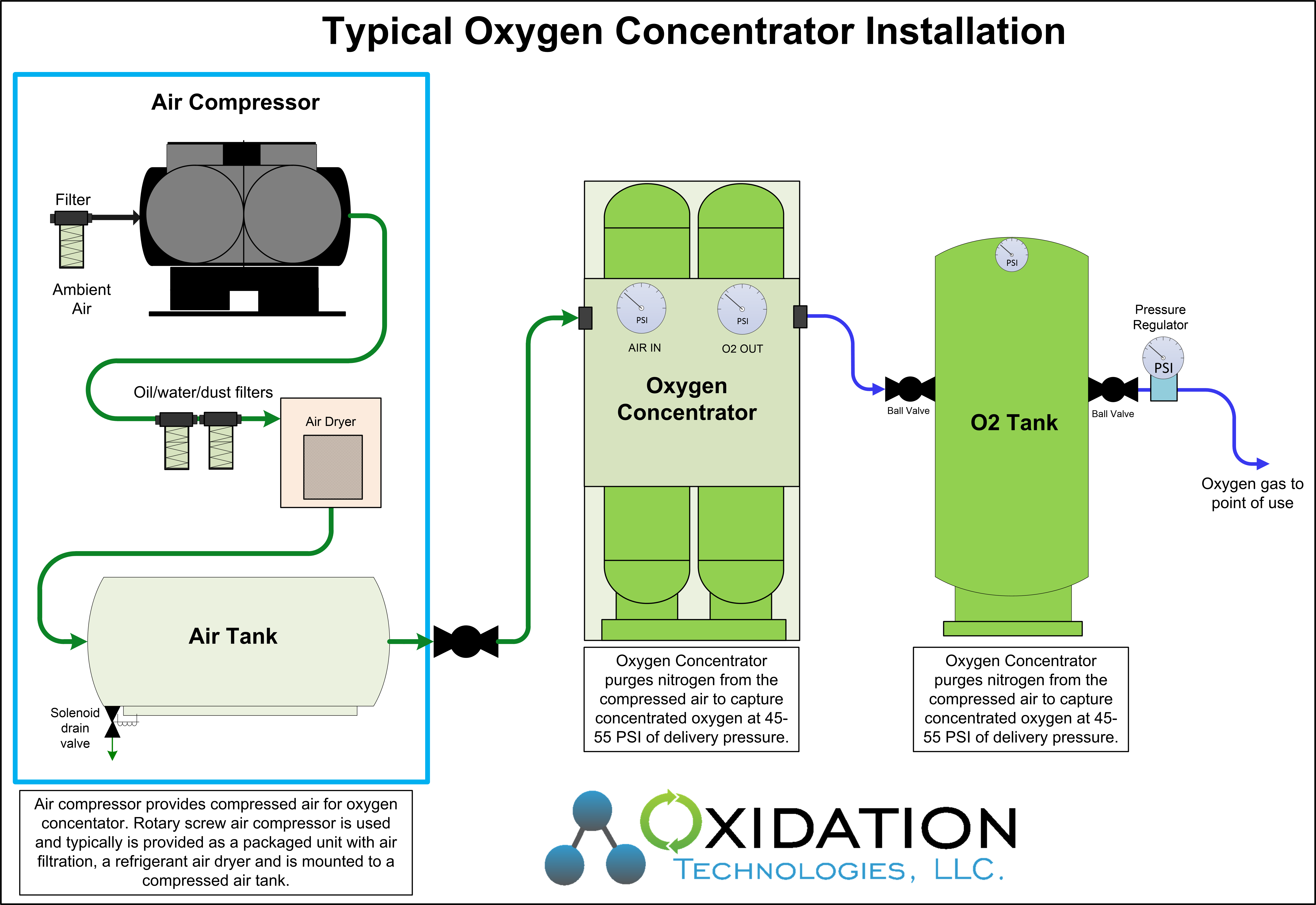

Diagram below shows a common installation of the OXO-300 Oxygen Concentrator.

Typical oxygen concentrator install



What is Pressure Swing Adsorption (PSA)

Clean, dry compressed air is fed into the first molecular sieve bed.  Nitrogen is adsorbed, while oxygen is allowed to flow through.  When the sieve in the first bed becomes full of nitrogen, the airflow is then directed into the second bed.  As the second bed separates the oxygen from the nitrogen, the first bed vents its nitrogen into the atmosphere.  Compressed air is once again fed into the first bed, and the process is repeated continuously.  A constant flow of oxygen is reliably produced.

Oxygen generator PSA



The OXO-300 Oxygen Concentrator requires compressed air for operation.  Typical installation of entire system is outlined below.

  • Air compressor will provide at least 23 CFM compressed air at 90PSI or greater

  • Particulate filter will remove most dust, and oil from air stream

  • Refrigerant air dryer is used to remote moisture from air and provide 40-deg F dew point

  • Coalescing filter will remove any final oil mist and moisture from air flow

  • Air storage tank is necessary to provide sufficient air storage for oxygen generator purging

  • Oxygen Generator will purge nitrogen from air and capture oxygen

  • Oxygen storage tank will store oxygen and provide consistent oxygen flow and pressure to point of use

  • We also suggest installing an oxygen filter downstream of the oxygen storage tank to filter any zeolite dust from the oxygen concentrator







Oxygen Purity Meter:

Optional oxygen purity switch can be added to the oxygen concentrator as an alarm. Simple oxygen purity monitoring. Provides relay contacts to alert of potential problems in your oxygen generation system.

Features

  • Powered and wired into oxygen generator

  • Oxygen plumbed through unit, no oxygen losses

  • Reliable ultrasonic sensor technology

  • Dual DPDT relay outputs, alarms triggered at > 85% O2 and > 75% O2 respectively.

  • Integrated LCD display

  • Relay alarm for low oxygen purity

  • Analog or digital output

  • Optional remote monitoring

  • Optional visual strobe light

  • Optional audible alarm



Downloads:



More Information
Manufacturer Oxidation Technologies
Call For Price Yes
Listing Description 275 - 300 SCFH @ 45-55 PSI
Internal Compressor No
O2 Delivery PSI 45+ PSI
Nominal Gas Flow Rate 300 SCFH
Operating Pressure 45-55 PSI
Max Pressure 55 PSI
Gas Connections 3/8" Female NPT
Dimensions (LxWxH) 34" wide x 26" deep x 79" tall
Operational RH Range 0-85% humidity
Operational Temperature Range 35 - 95-deg F
Power Requirements 120 VAC, 60 Hz, 1-phase, 6amp (220 VAC optional)
Lead Time 2-weeks
Warranty 1 Year
Country of Origin USA
Oxygen Production 251 + SCFH
Description Requires 55 CFM air @ 90 PSI
