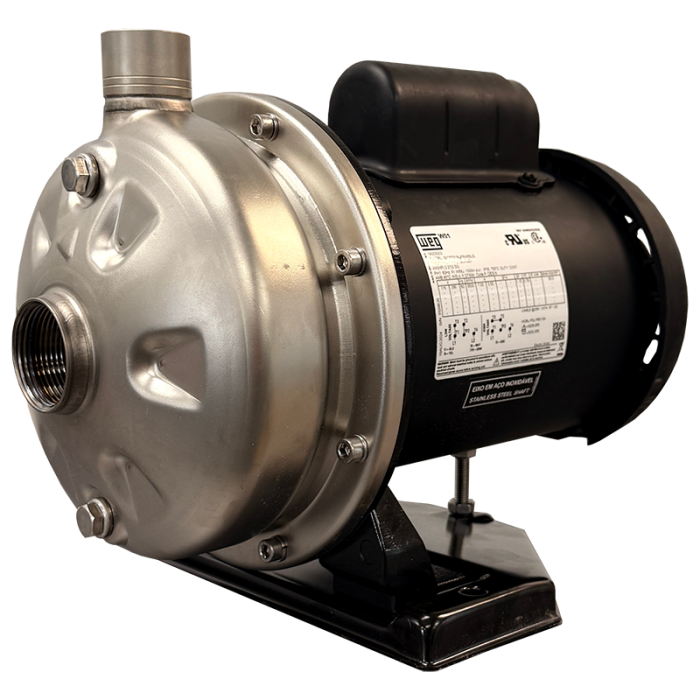

WP-1 Pump

Part Number: WP-1

$657.00

The WP-1 is a great option for efficiently dissolving ozone into water, or pumping ozone water. We recommend using the WP-1 with our Venturi-584.



Key Features:

    >Close Coupled Design  - saves space and simplifies maintenance, as well as installation

    >Stainless Steel Liquid End Components  - high quality, corrosion resistant components

    >Versatile Mounting  - can be installed horizontally or vertically

    >Back Pullout Construction  - allows for assembly and overhaul of the impeller and seal without distorting suction and discharge connections

    >Top Centerline Discharge and Foot Support Under Casing  - nsures self-venting and reduces misalignment from pipe loads

    >High-Efficiency  - lowers operating costs



Applications:

    >Plant Services

    >Water Supply Systems

    >Liquid Transfer

    >Water Treatment

    >Irrigation



WP-1 +584 Venturi   WP-1 + 684 Venturi   WP-1 + 784 Venturi
Venturi Inlet PSI Venturi Outlet PSI Venturi Inlet PSI Venturi Outlet PSI Venturi Inlet PSI Venturi Outlet PSI
76 55 70 50 69 55
72 50 60 40 66 50
63 40 50 30 55 40
53 30 41 21 46 30
44 21 32 10 40 20
35 10     30 10



Downloadable Content:

     Brochure

     Operation Manual

More Information
Manufacturer Oxidation Technologies
Call For Price No
HP 0.5
Material of construction Stainless Steel
Lead Time In Stock
Country of Origin USA
