NEW Electrochemical sensor, 0-50ppm range, RS-232 transmitting module, 10% or better accuracy, humidity compensated, eliminates most VOC interferences, pre-calibrated field replaceable sensor.
The SM-7 Sensor can be used as a stand-alone oem solution with RS-232 communications, or used as the sensor module with the OS-4 or OS-6 Ozone Monitors.
The SM-7 boasts the SM-EC Electrochemical sensor with a range of 0-50 ppm. This sensor will be more accurate, and work better in high humicity areas than the standard SM-X sensor used in the SM-6 Sensor Module. This is a great option for food storage and other industrial applications where cross-sensitivity to ozone is a concern from other gasses in the area.
- Laundries using ozone.
- Large noisy factory environments.
- Casinos and other ozonated public areas.
- Agricultural storage areas.
- Food processing plants.
- 25ppb sensitivity with 5ppb resolution.
- Wide operating range (.02-50ppm).
- Electrochemical Sensor
- Wide detection range
- Low Power
- Low Maintenance
- Uses easily available 8-24 VDC power.
- Small enough to mount almost anywhere.

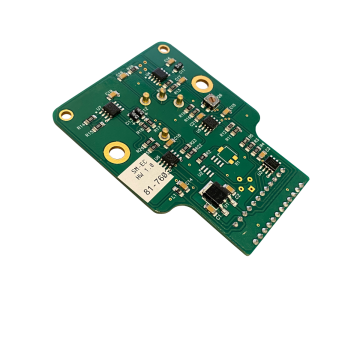

The SM-EC is an electrochemical ozone sensor module for use with our OS-6 digital instrument. This new technology from Eco Sensors provides accurate ppb-level detection and resolution over a wide (.2-50 ppm) concentration range. The sensor module is compensated for temperature and humidity effects, with little to no cross sensitivity to VOC’s. The SM-EC makes our digital instruments more accurate at both ppb and high ppm levels of ozone, enabling improved monitoring and control for our users.
|Call For Price||No|
|Response Time||1 second|
|Operational Temperature Range||35 - 100 deg F|
|Operational RH Range||0 - 85% RH|
|Power Requirements||12 VDC|
|Field Replaceable Battery||No|
