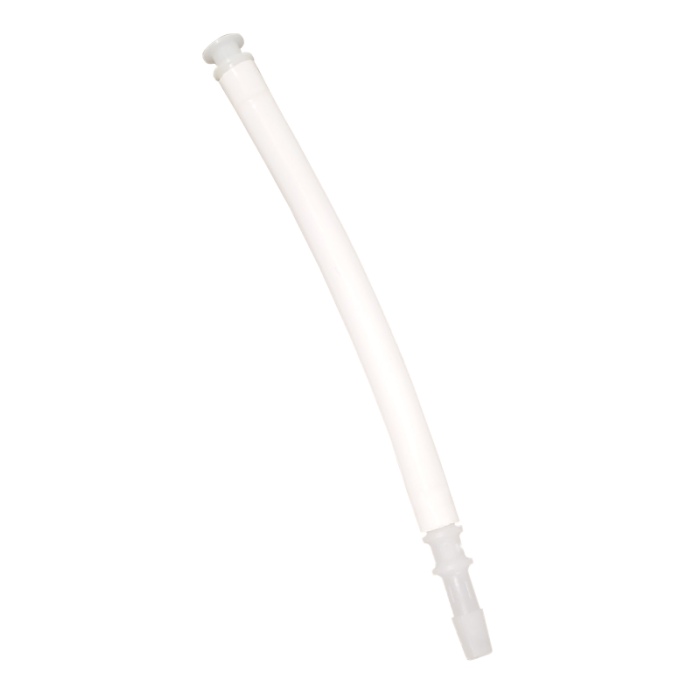

PTFE Diffuser

PTFE Material offers great flexibility allowing this diffuser to fit into a wide variety of containers or where you want ozone bubbled into a liquid.  This is a porous PTFE material that is flexible and bendable as your application requires.

Bubbles that are produced from this device are 20 microns.  This tube can handle flows of 10 LPM for every 12" of tubing and pressures up to 20 PSI.

Specifications:

• Outside Diameter (OD) =  3/8"
• Indside Diameter (ID) = 5/16"
• End connection for customer tubing = 1/4" barb
• Bubble size = 20 micron
• Max operating pressure = 20 PSI
• Max gas flow = 10 LPM per 12" of tubing

Features:

• Flexible tubing can be orientated by bending to fit
• PTFE will not be affected by iron, calcium or other minerals that will plug stainless steel diffusers
• Custom lengths available
• Easy to clean (dishwasher safe)
• Great for ozonated olive oil or any application where purity is important

We offer the PTFE diffuser in 4 standard lengths.  Custom lengths are available for $20 per foot. Contact us with your custom length request.

Standard lengths offered:

• 4"
• 8"
• 12"
• 24"
