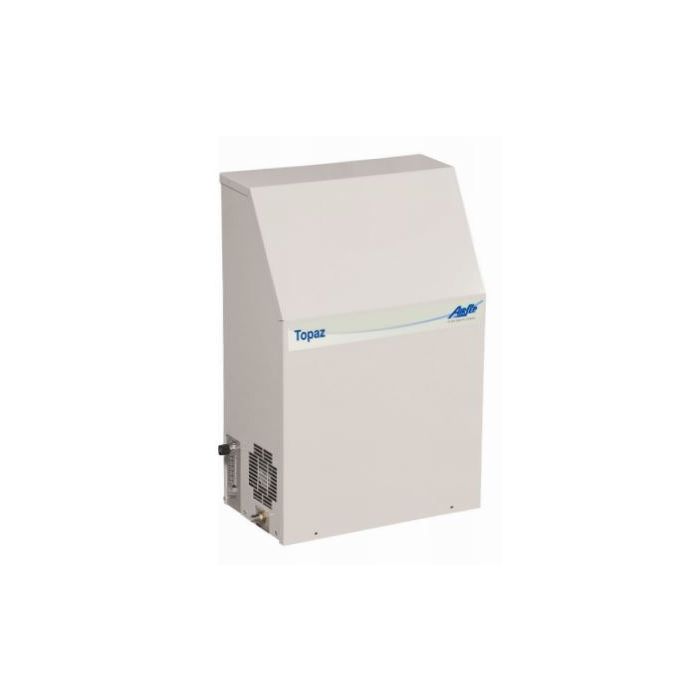

Topaz Ultra
21 SCFH oxygen production at 20 PSI is produced by the Topaz Ultra oxygen concentrator module.
Place your order today and we will ship it as soon as possible.
- SKU
- Topaz Ultra
Description / Topaz Ultra
Specifically designed for reliability, energy efficiency, and ease-of-use, there are thousands of Topaz PSA Oxygen Generators currently in use throughout the world. The Topaz’s ability to deliver up to 95% oxygen concentration make it a great fit for a wide range of commercial applications.
Features:
-Self-Contained
-Heavy Duty Metal Enclosure
-Advanced Engineering
-Ozone Resistant/High Temperature Process Tubing
-Optional Oxygen Concentration Monitor
-Wall or Rack Mounting
Do you want to use an oxygen concentrator to supply your new hard shell hyperbaric chamber, but can't seem to keep the flow up when the pressure increases? The standard 10 LPM oxygen concentrator may be rated to produce up to 20 psi, but when used to supply oxygen to hard shell hyperbaric chambers, the flow dwindles and will stop before getting there. On top of the pressure within the chamber, the concentrator needs to overcome check valves as well, and there just is not enough pressure available. A properly sized boost compressor can solve this problem and allow any oxygen concentrators you have available to provide the pressure you need. This boost compressor is a good option if you have a number of concentrators that are not doing the job of getting oxygen into your chamber. The O2 Boost comes with DISS fittings that are used with supplying hyperbaric chambers.
Product Characteristics:
|
Performance Data: Product Flow Oxygen Delivery Pressure |
21 SCFH 20 PSI (138 kPa) |
| Product Concentration | Up to 95% |
| Product Dew Point | -100°F (-73°C) |
|
Dimensions (WxDxH) |
19 x 10 x 27 inches (48 x 25 x 68 cm) |
|
Weight |
58 lbs (26 kg) (Add 4 lbs for 220 V Unit) (Add 20 lbs for Stainless Steel) |
|
Physical Connections Product Gas Outlet |
1/4" NPT-M/B-M size oxygen adapter |
| Ambient Operating Conditions |
Locate the oxygen concentrator system in a well-ventilated area that is protected from weather elements. Temps should remain between 40°F (4°C) and 112°F (44°C) |
| Control Power Requirements (Single Phase) |
120 V ~ ± 10%, 60 Hz, 5.0 A 220 V ~ ± 10%, 50 Hz, 2.5 A |
Typical Applications:
Manufacturing
-Glass Work/Blowing
-Brazing/Sodering/Jewelry
-Thermal/Chemical Oxidation
Environmental
-Ozone (Generator) Feed Gas
-Waste/Water Treatment
-Environmental Remediation
Additional
-Fish Farming
-Aquaponics
-Hydroponics
| Product | Listing Description | Price |
|---|---|---|
 10 LPM Flowmeter
|
10 LPM Flowmeter for Onyx Ultra AirSep Part Number: FM056-1 |
$15.00
|
 8 amp Circuit Breaker
|
8 amp Circuit Breaker for the Onyx, Onyx Plus, Onyx Ultra, Topaz and Topaz Plus AirSep Part Number: CR001-1 |
$15.00
|
 Aluminum Case Capacitor for Onyx Ultra and Topaz Ultra
|
Aluminum Case Capacitor for Onyx Ultra and Topaz Ultra AirSep Part Number: CC012-8 |
$15.00
|
 Brass Compression Nut
|
Brass compression nut AirSep Part Number: F0135-2 |
$6.00
|
 Heat Exchanger
|
The heat exchanger reduces the temperature of the compressed air. The heat exchanger located at the bottom center of the compressor. AirSep Part Number: HX002-2 |
$10.00
|
 Mount Sandwich
|
Mount Sandwich 30lbs AirSep Part Number: MO007-1 |
$10.00
|
 Rebuild Compressor Kit for the Onyx or Topaz
|
Replacement Trigon compressor kit for the Topaz Oxygen Generator. AirSep Part Number: CO012-11 |
$62.00
|

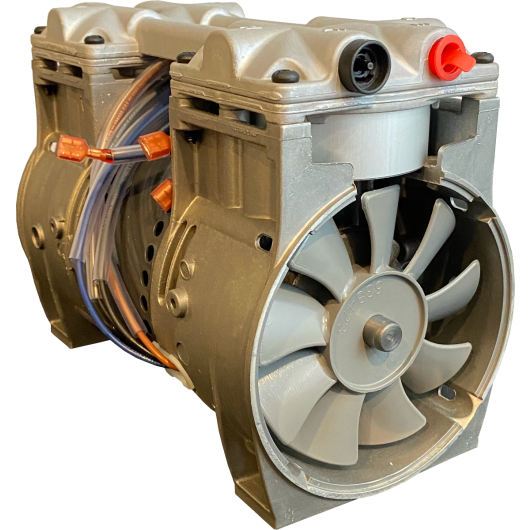

 Topaz Ultra 120/60 Compressor
|
Replacement compressor for the Topaz Ultra Oxygen Generator. Replacement for Topaz Ultra 120 V, 60 Hz unit after 12,000 hours AirSep Part Number: CO305-1 |
$330.00
|

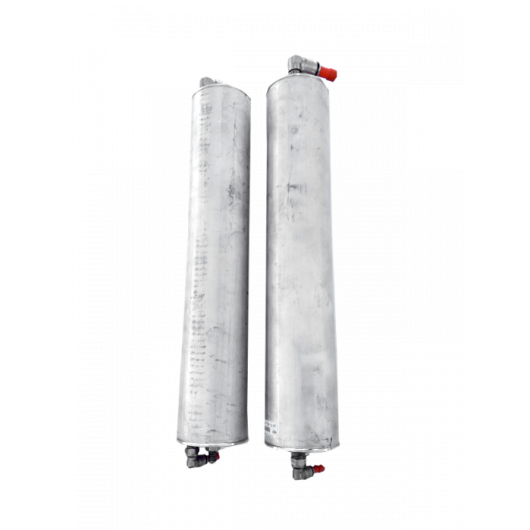

 Topaz Ultra Sieve Beds
|
Replacement set of Sieve beds for the Topaz Oxygen Generator. Replacement for Topaz Ultra 120 VAC and 240 VAC units. AirSep Part Number: BE303-1 |
$264.00
|
10 LPM Flowmeter
Listing Description
10 LPM Flowmeter for Onyx Ultra
AirSep Part Number: FM056-1
8 amp Circuit Breaker
Listing Description
8 amp Circuit Breaker for the Onyx, Onyx Plus, Onyx Ultra, Topaz and Topaz Plus
AirSep Part Number: CR001-1
Aluminum Case Capacitor for Onyx Ultra and Topaz Ultra
Listing Description
Aluminum Case Capacitor for Onyx Ultra and Topaz Ultra
AirSep Part Number: CC012-8
Brass Compression Nut
Listing Description
Brass compression nut
AirSep Part Number: F0135-2
Heat Exchanger
Listing Description
The heat exchanger reduces the temperature of the compressed air. The heat exchanger located at the bottom center of the compressor.
AirSep Part Number: HX002-2
Mount Sandwich
Listing Description
Mount Sandwich 30lbs
AirSep Part Number: MO007-1
Rebuild Compressor Kit for the Onyx or Topaz
Listing Description
Replacement Trigon compressor kit for the Topaz Oxygen Generator.
AirSep Part Number: CO012-11
Topaz Ultra 120/60 Compressor
Listing Description
Replacement compressor for the Topaz Ultra Oxygen Generator. Replacement for Topaz Ultra 120 V, 60 Hz unit after 12,000 hours
AirSep Part Number: CO305-1
Topaz Ultra Sieve Beds
Listing Description
Replacement set of Sieve beds for the Topaz Oxygen Generator. Replacement for Topaz Ultra 120 VAC and 240 VAC units.
AirSep Part Number: BE303-1
What is Pressure Swing Adsorption (PSA):
Clean, dry compressed air is fed into the first molecular sieve bed. Nitrogen is adsorbed, while oxygen is allowed to flow through. When the sieve in the first bed becomes full of nitrogen, the airflow is then directed into the second bed. As the second bed separates the oxygen from the nitrogen, the first bed vents its nitrogen into the atmosphere. Compressed air is once again fed into the first bed, and the process is repeated continuously. A constant flow of oxygen is reliably produced.
More information on How Oxygen concentrators Work available HERE
Downloads:
More Information
| Manufacturer | Air Sep |
|---|---|
| Listing Description | 21 SCFH @ 20 PSI |
| Internal Compressor | Yes |
| O2 Delivery PSI | 20 PSI |
| Nominal Gas Flow Rate | 21 SCFH |
| Operating Pressure | 20 PSI |
| Gas Connections | 1/4" NPT-M/B-M Size Oxygen Adapter |
| Dimensions (LxWxH) | 19 x 10 x 27 inches |
| Operational RH Range | NA |
| Operational Temperature Range | NA |
| Power Requirements | 120V ~ ±10%, 60 Hz, 6.0 A or 220V ~ ±10%, 50 Hz, 3.0 A |
| Lead Time | In Stock |
| Warranty | 1 Year |
| Country of Origin | USA |
| Oxygen Production | 21-24 SCFH |
| Description | Turnkey unit with built-in compressor |
