O2 Pressure Boost
O2 Pressure Boost
Boost oxygen pressure from standard packaged Oxygen Concentrator to 50 PSI.
Accommodates oxygen input flow-rates from 10-30 LPM and will boost up to 50 PSI
Used Option HERE
The O2 Boost has a new look going forward!
- SKU
- O2 Pressure Boost
- Color
- White
Related Products
Description / O2 Pressure Boost
Boost oxygen pressure from standard packaged Oxygen Concentrator to 50 PSI.
Accommodates oxygen input flow-rates from 10-30 LPM and will boost up to 50 PSI

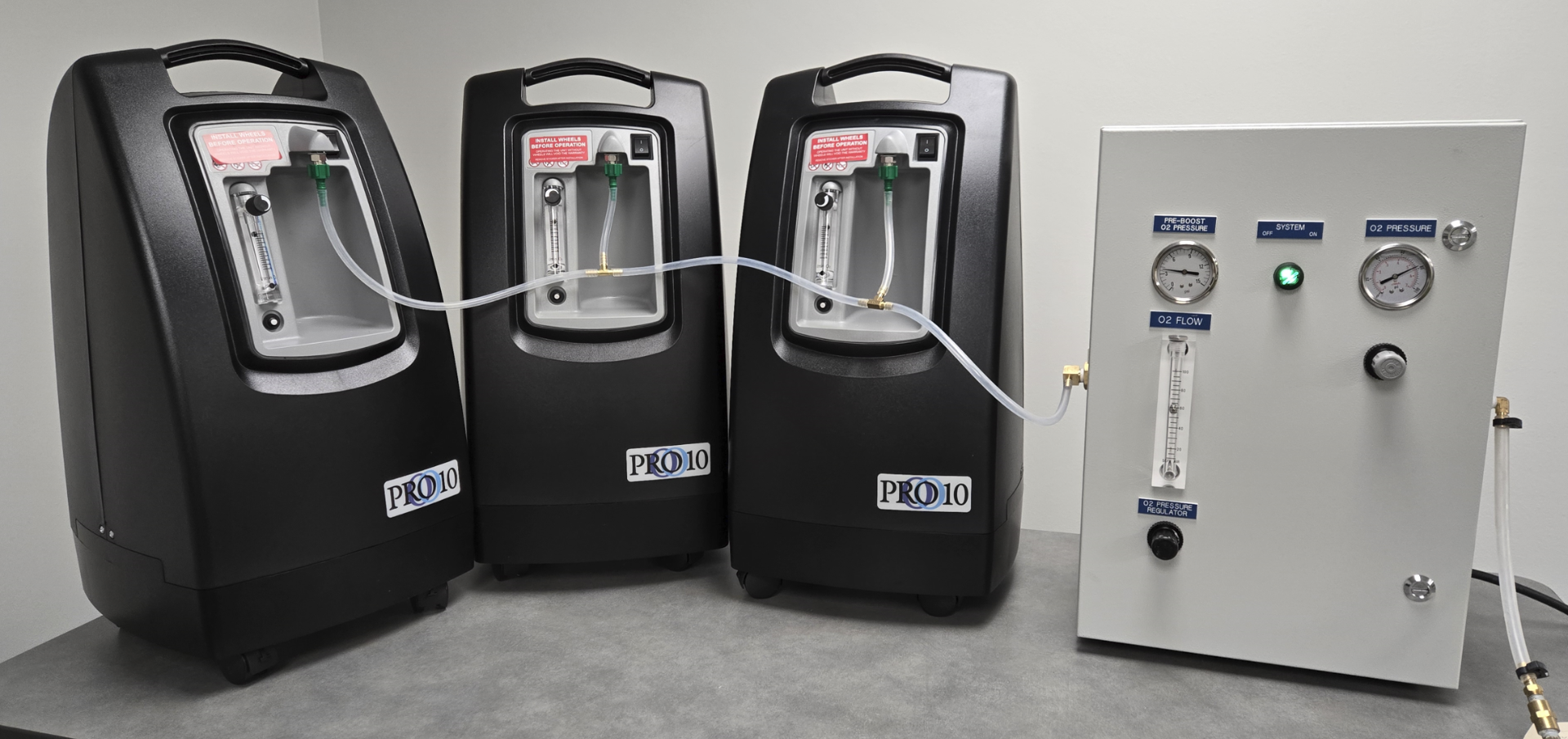

The O2 Pressure Boost is designed to boost oxygen pressure from standard packaged oxygen concentrators to higher pressures. No oxygen storage tanks, or ancillary equipment required. Simply plug the O2 Pressure Boost into 120 VAC electrical power, hook up your oxygen concentrator tubing, and increase oxygen pressure up to 50 PSI for your higher-pressure applications.

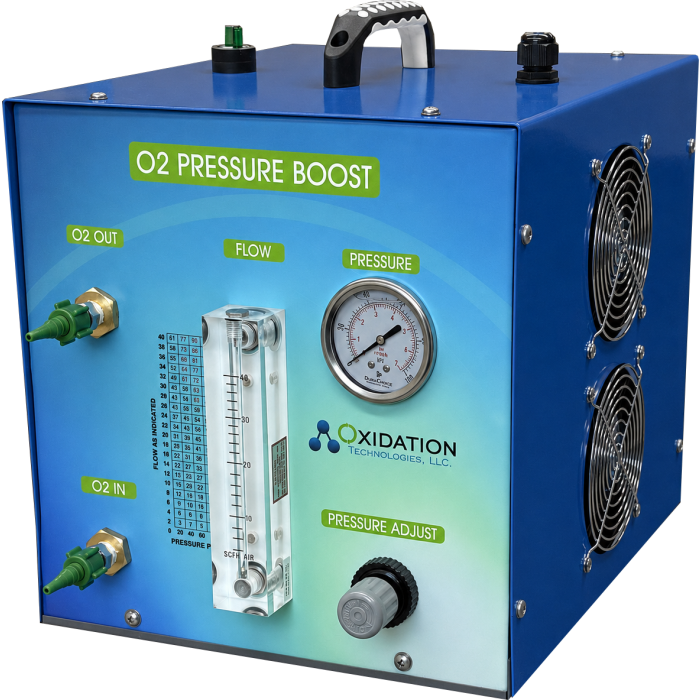

The O2 Boost has a new look with the same components. We've condensed the unit and added helpful visuals and tips to the design face and back.
Features:
- Maintains oxygen flow of your oxygen concentrators at up to 50 PSI
- Accomodates oxygen input flow-rates from 10-30 LPM
- Panel mounted oxygen flow-meter to indicate oxygen flow
- Panel mounted pressure gauge indicates pre-boost oxygen pressure
- Panel mounted output pressure gauge indicates the boosted pressure to the point of use
- Oxygen pressure regulators allow for oxygen pressure regulation on-site to match the required application
- Requires only 120 VAC electrical power
- 3/8" Female NPT inlet/outlet fittings for oxygen gas connections
Note: The O2 Pressure Boost can be set-up for higher oxygen pressures than 50 PSI upon request. Please contact our office for higher pressure application and requirements.
Common Applications:
- Nanobubble generation
- Glass blowing torches
- Veterinary clinics
- Hyperbaric oxygen (HBOT)
- Biogas
- Or any application where higher pressure oxygen is requied
Packaged Oxygen Concentrators:
Oxidation Technologies also manufactures packaged high-pressure oxygen concentrators. This simplifies operation and long-term maintenance along with providing a smaller footprint.

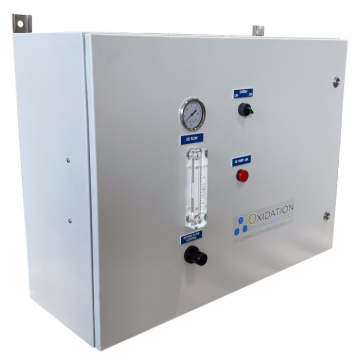

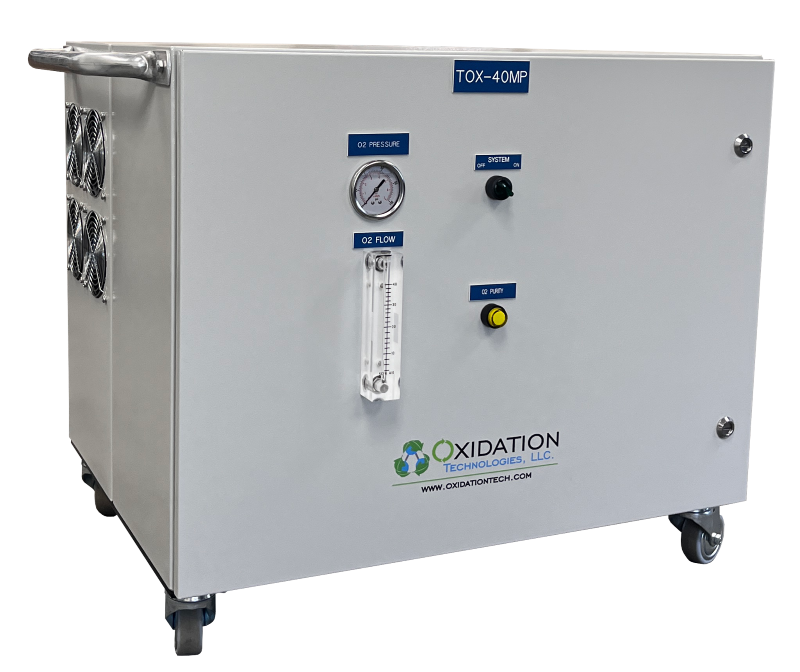

| TOX-MP Series provides oxygen pressure up to 50 PSI - Link here |  |

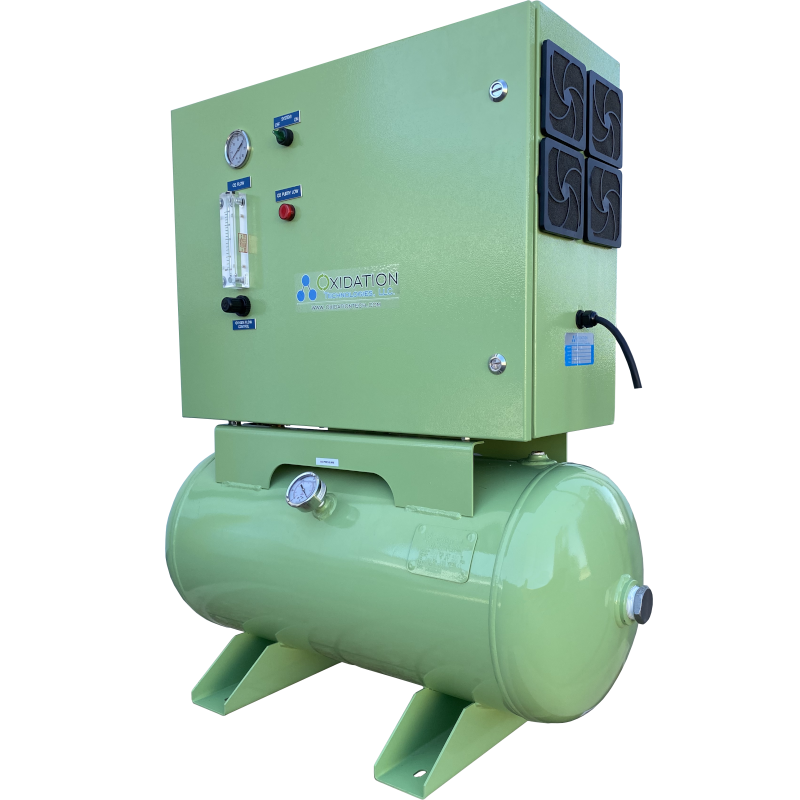

| TOX-HP Series provides oxygen pressure up to 90 PSI - Link here |  |
Downloads:
O2 Pressure Boost Video:
More Information
| Manufacturer | Oxidation Technologies |
|---|---|
| Listing Description | O2 Pressure Boost only 50 PSI Pressure boost |
| Internal Compressor | Yes |
| O2 Delivery PSI | 45+ PSI |
| Nominal Gas Flow Rate | 10-30 LPM |
| Operating Pressure | 10-50 PSI |
| Max Pressure | up to 50 PSI outlet pressure (higher pressures available upon request) |
| Dimensions (LxWxH) | Old Design 10" deep x 16" long x 24" tall New Design 12" deep x 12" Long x 12" tall |
| Operational Temperature Range | 35 - 95-deg F |
| Power Requirements | 120 VAC |
| Lead Time | 2-week lead time |
| Warranty | 1 Year |
| Country of Origin | USA |
| Description | Boost oxygen pressure from any Oxygen Concentrator to 50 PSI |
