UV-106MH-OEM

Medium/High range precision UV Ozone Analyzer with an OEM configuration.  Versatile analyzer has a range 0-10,000 ppm, with resolution of 0.1 ppm  resolution allows for medium range ozone measurement up to 10,000 ppm.  The OEM configuration is designed as an "Ozone Analyzer on a board" in which nearly all of the components are mounted directly to the printed circuit board. This analyzer can also read in ozone in % by volume up to 1% ozone by volume.

$5,760.00
4 weeks

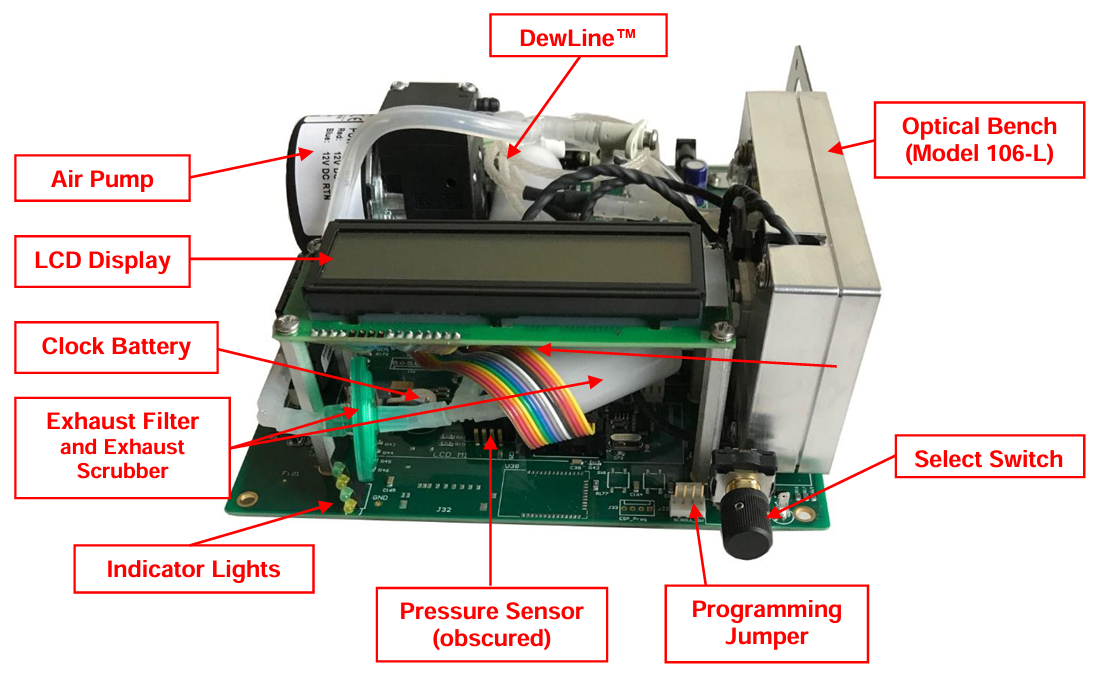

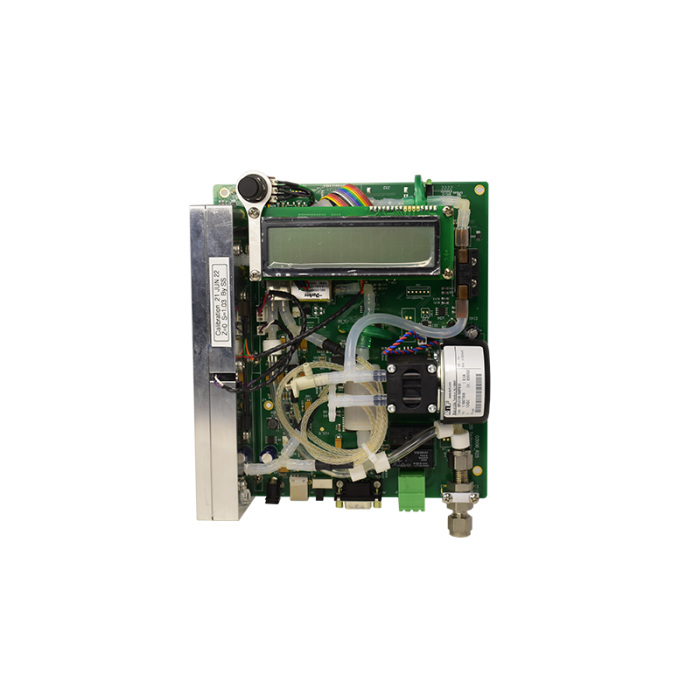

The UV-106-MH is a medium/high range ozone analyzer with an OEM configuration featuring ozone measurements up to 10,000 ppm with low range measurement of ozone down to 0.1 ppm. The OEM configuration is designed as an "Ozone Analyzer on a board" in which nearly all of the components are mounted directly to the printed circuit board.

Integrated sample pump will pull a sample of ozone from your process or location into the analyzer and measure ozone in that gas stream.  A UV lamp and receptor are used to determine the quantity of ozone in gas by determining the rate of ozone absorption by the UV lamp.  This method of ozone detection will offer accurate detection of ozone at levels up to 10,000 without compromising low range detection below 1 ppm, while eliminating most cross-sensitivity from other gasses.



Features:

- Measurement based on UV absorption

- OEM Configuration

- 0-10,000 PPM by volume measurements

- 0.1 PPM resolution

- Low power consumption; can be battery operated

- Internal data logger with real time clock

- On-board microprocessor with interactive menus includes data averaging options of 10 s, 1 m, 5 m and 1 hr

- USB and RS-232 output of time/date, O3 concentration, internal temperature and pressure

- Analog output (0-2.5 V and 4-20 mA) of ozone concentration in user selected units

- Two level relay for control purposes (e.g., control of ozone source or turn warning light on and off)

Standard Enclosure:

The UV-106 comes standard in a bench mount configuration making it simple to set up for many applications.

Standard Enclosure



For applications where a wall mount analyzer, or rugged enclosure for harsh environments are a better fit, the NEMA enclosure can be used for the UV-106-M Ozone Analyzer.



Test ozone output from industrial ozone generator



Downloads:

More Information
Manufacturer Oxidation Technologies
Call For Price No
Gas Ozone (O3)
Resolution 0.1 ppm
Response Time 10 seconds
Sensor type UV Analzyer
Sampling Method Fan
Alarms Relays
Power Requirements 12 VDC with supplied adapter

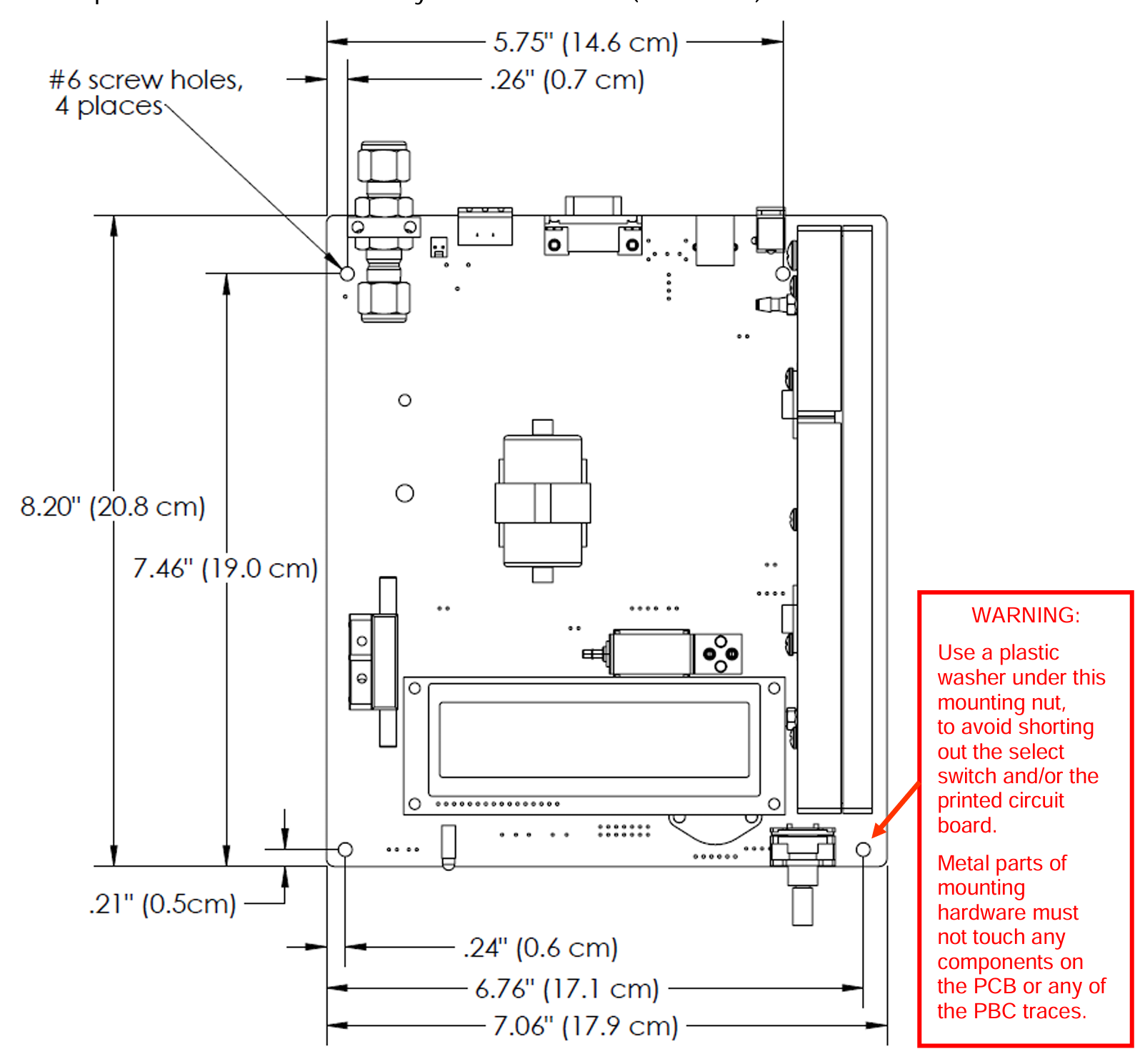

Size 95 × 210 × 216 mm (3.75 × 8.25 × 8.50 in)
Field Replaceable Battery Yes
Warranty 1 Year
Audible Alarm No
Calibration Annually
Range 0-10,000 ppm
Unit Features

- OEM Configuration

- Includes datalogging with software

- Low power consumption; can be battery operated

- Two level relay for control purposes

- Long-life pump (15,000 hr)

Sensor Range

0-10,000 ppm (O3)
