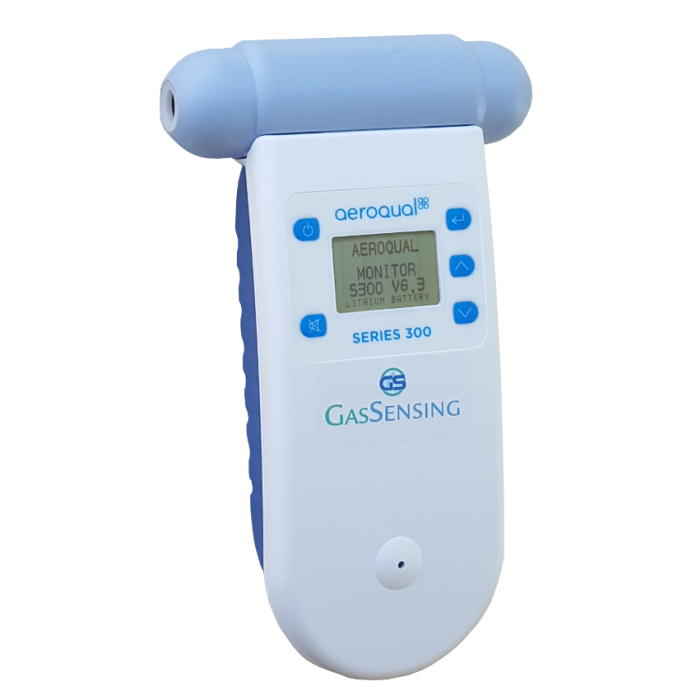

Aeroqual Series 300 Monitor (S-300) with Ozone Sensor Head
The Aeroqual Series 300 Monitor with Sensor Head gives you the benefits of both a Controller and a Portable. It has relays and voltage outputs, letting you interface with control systems, equipment, or dataloggers. But it is battery-powered, so you can take it with you when necessary. Like all of the Aeroqual handhelds, the Series 300 is available with a variety of sensor head options, letting you specify the gas and range that you need (see the drop-down list above). This kit comes with a single sensor head, but additional sensor heads can be purchased on our Replacement Sensors page.
How to Order:
Step-1: Choose your gas sensor from the Sensor Head drop down box. For more information on gas sensors see our Replacement Sensors page
Step-2: Choose your options and required related products. Note: Aeroqual sensors are extremely versatile and customizable. Should you have questions, feel free to call or e-mail.
Step-3: Add to cart, the monitor and options necessary. When in the cart you can continue shopping to add additional Sensors to your order.
- Fits comfortably in the hand
- One monitor compatible with up to 30 different sensor
- Audible alarm functionality
- Changing sensors takes seconds and can be done anywhere
- Remote sensor capability
- Long life lithium battery technology
- Zero and span calibrate in the field
- Source and leak detection
- Process control
- Health and safety monitoring
- Indoor air quality
- Monitor Base
- LCD Display
- Lithium battery and charger
- 0-5 VDC output
- Zero and span calibration adjustment
- Low and high audible alarm
Sensor heads for the Series-500 are interchangeable, allowing you to detect many gasses with one device. Using the optional carry cases you can keep your Series-500, optional accessories, and spare sensor heads all in one safe, portable case.
Each sensor head will fit each handheld device. Simply pull the sensor out and put a different sensor in its place. The S-500 will recognize the sensor and display the proper range and gas on the screen.
Replacement (or additional) sensor heads are available for all of the gases listed above. You can find their details and pricing on our Replacement Sensors page!
Note: sensors for the optional enclosure, R13, outdoor enclosure, or environmental enclosure are all calibrated specifically for an enclosure. Please specify when ordering if you are using sensor in an enclosure.
Data logging with the AQ-300 is possible with an external data logger, such as, the DL-3. Using the 0-5 vdc output signal from the Series-300 the DL-3 can log and save gas measurements. This is a great addition for your Series-300 monitor if data logging needs are a new requirement, or if portability of your data is a requirement.
View a brochure with specifications on the Series-200, 300, and 500.
|Call For Price||No|
|Gas||Ammonia (NH3), Carbon Dioxide (CO2), Carbon Monoxide (CO), Chlorine (Cl2), Dual - CO, CO2, Formaldehyde (CH2O), Hydrogen (H2), Hydrogen Sulfide (H2S), Methane (CH4), Nitrogen Dioxide (NO2), NMHC, Ozone (O3), Perc (C2Cl4), Sulfur Dioxide (SO2), Triple, CO, CO2, VOC, VOC|
|4-20 mA Output||No|
|Relays||1 Alarm Relay + 1 Control Relay|
|Field Replaceable Sensor||Yes|
|Min, Max, Avg||Yes|
|Voltage Output||0-5 V|
|Power Requirements||12V DC via supplied adapter|
|Field Replaceable Battery||Yes|
