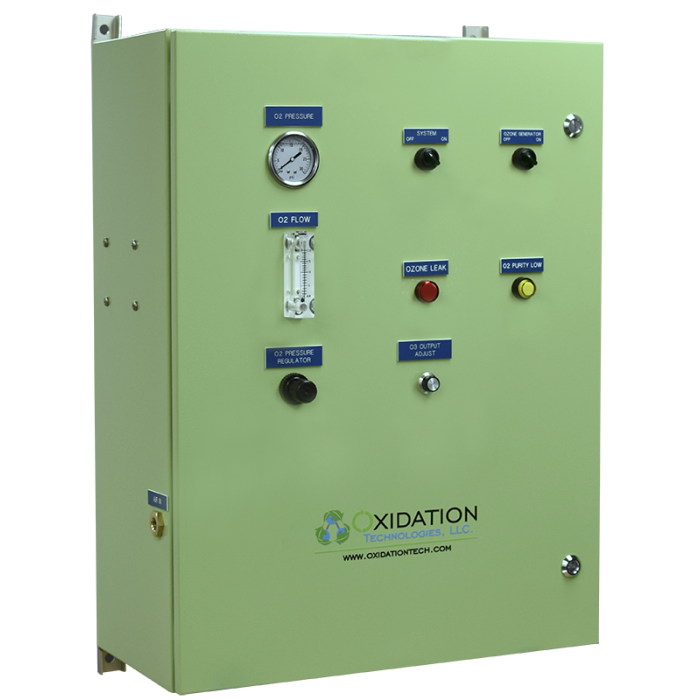

This turnkey ozone generator includes the ozone generator and oxygen concentrator integrated into one system. OXG-60 produces 60 g/hr ozone from integrated oxygen concentrator. Air cooled, wall mount, or floor standing generator is extremely versatile and easy to use.


4 week lead time

The OXG line of ozone generators are turnkey ozone generators with integrated oxygen concentrators.  Simply plug into electrical power and produce both oxygen and ozone from one device.  Easy to use, and powerful ozone generator for multiple industrial applications.

The OXG-60 produces 60 g/hr ozone from oxygen at 7% by weight.  Only 10 LPM of oxygen is required to produce the 60 g/hr ozone.

The OXG-60 is built in a stainless steel enclosure as standard equipment for great corrosion resistance and maximum durability.


Key Features:

- Turnkey ozone generator with integrated oxygen concentrator

- Produces 60 g/hr ozone from oxygen

- Produces 10 LPM oxygen for ozone production

- Very efficient ozone generator produces high concentrations of ozone

- Wall mountable

- Flow meter is standard

- Adjustable output Standard

- Easy to install and operate

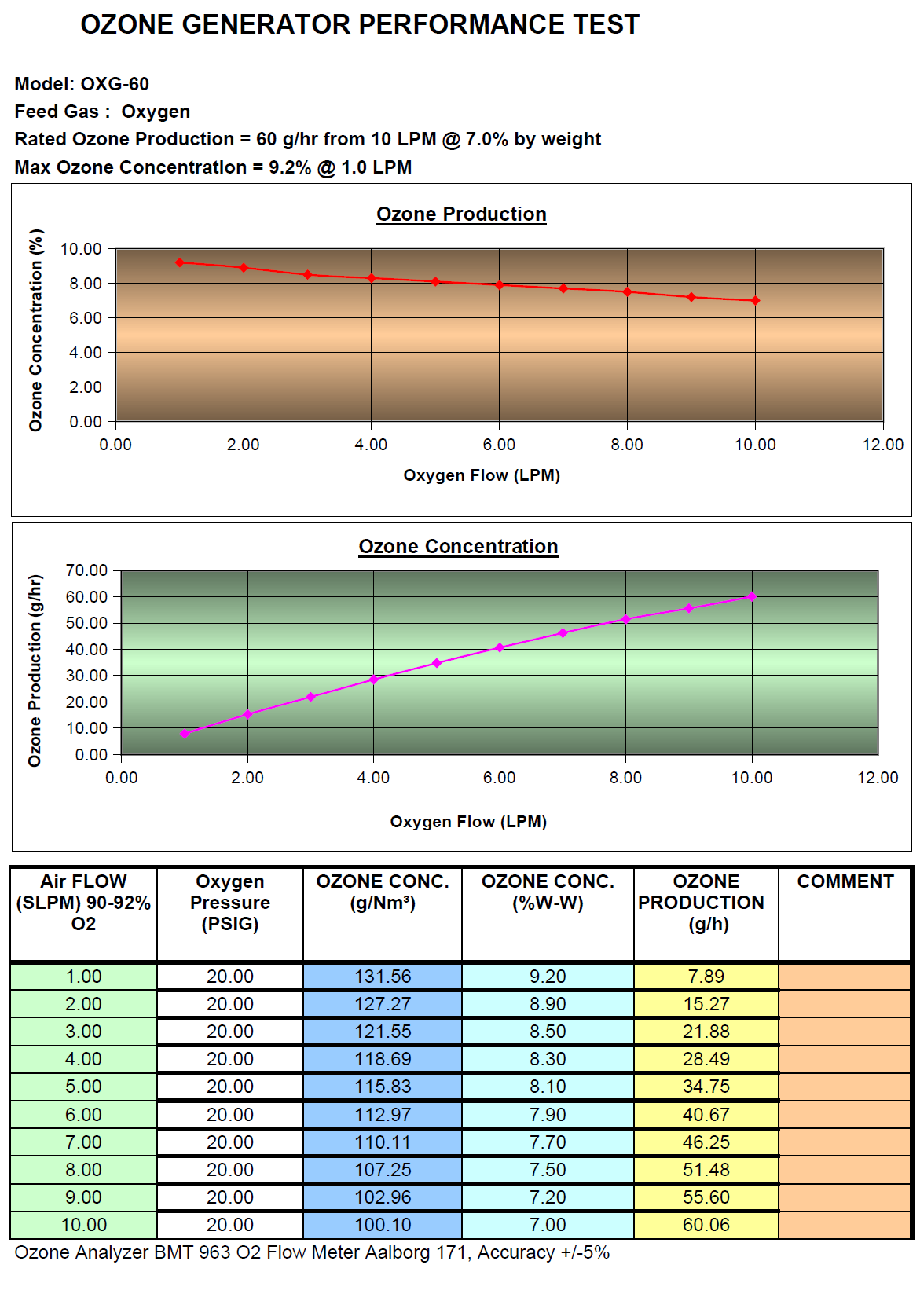

Ozone Generator Performance Chart - Ozone Production from Oxygen:

Common Applications:

     -Water treatment


     -Odor control

     -Agricultural applications

     -Ultrapure water applications


Options are available for the OXG-60 to configure in any way you need.  Standard options for ordering online are listed blow.  For other options, you may require please contact our office for help to ensure we configure exactly to your needs.

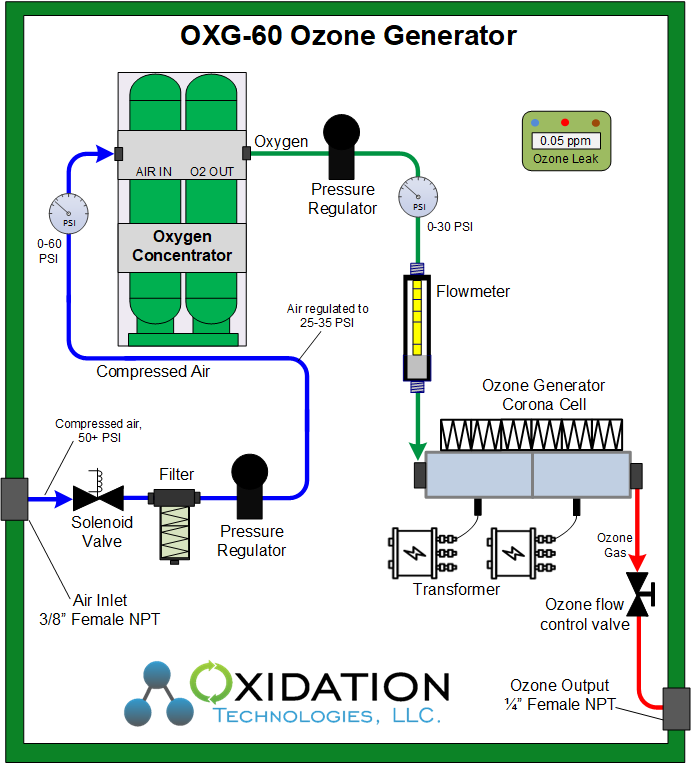

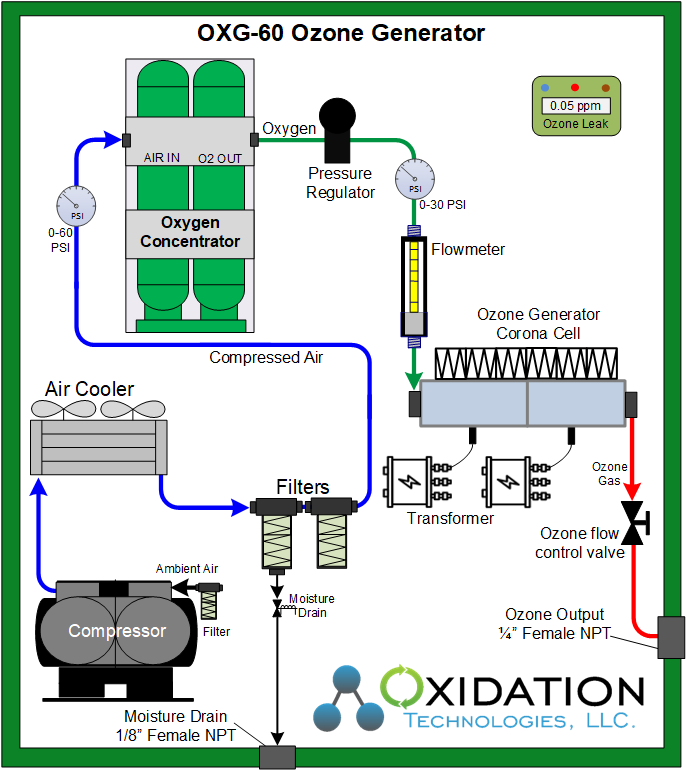

     -External Compressed Air - the OXG ozone generators incorporated an oil-less compressor to provide compressed for the ozone generator.  In very humid or poor air quality environments it is preferred to use compressed air for your high-quality source.  We will remove the compressor, and replace with air solenoid valve, pressure regulator, and 2-stage air filtration.

     -Ozone Leak Sensor - for safety an ozone leak sensor should be used with every ozone generator.  We can incorporate this sensor directly into the ozone generator.



OXG Series Brochure

More Information
Call For Price No
Feed Gas Built-in O2 Concentrator
Nominal Gas Flow Rate 10 LPM oxygen to produce 60 g/hr ozone
Operating Pressure 5 PSI
Max Pressure 9 PSI
Manufacturer Oxidation Technologies
Cooling Method Air Cooled
Corona Cell Quartz , Stainless Steel
Gas Connections 3/8" compression fittings
Dimensions (LxWxH) 12" x 26" x 38"
Operational Temperature Range 35 - 95-deg F
Max O3 % 7.5% - 10%
Power Requirements 120 VAC, 60 Hz, 1-phase, 10amp (220 VAC optional)
Lead Time 1-week
Warranty 1 Year
Country of Origin USA
Description 26" wide x 12" deep x 38" tall
Ozone Output

60 g/hr ozone from 10 LPM oxygen@ 4.5% by weight

Unit Features

- Turnkey ozone generator with integrated 10 LPM oxygen concentrator

- Adjustable Ozone Output

- Oxidation Technologies can repair and upgrade these via in person service calls
