*Please Note* the F12-D currently has a lead time of approximately 3 weeks. However, we do have several pre-configured F12-D's in-stock.

     -F12-D with Integral Sensor Holder

     -F12-D with Remote Sensor Holder & Junction Box

     -F12-D with Sensor Holder & 6 Foot Cable

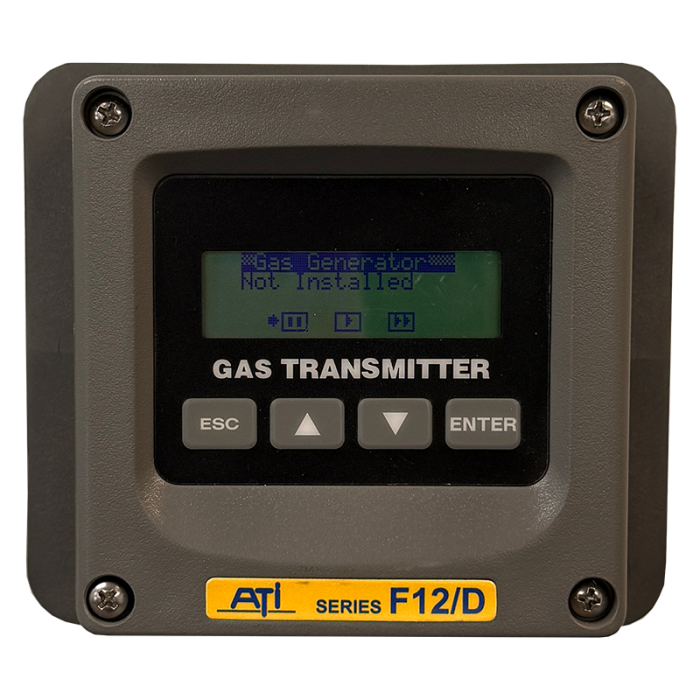

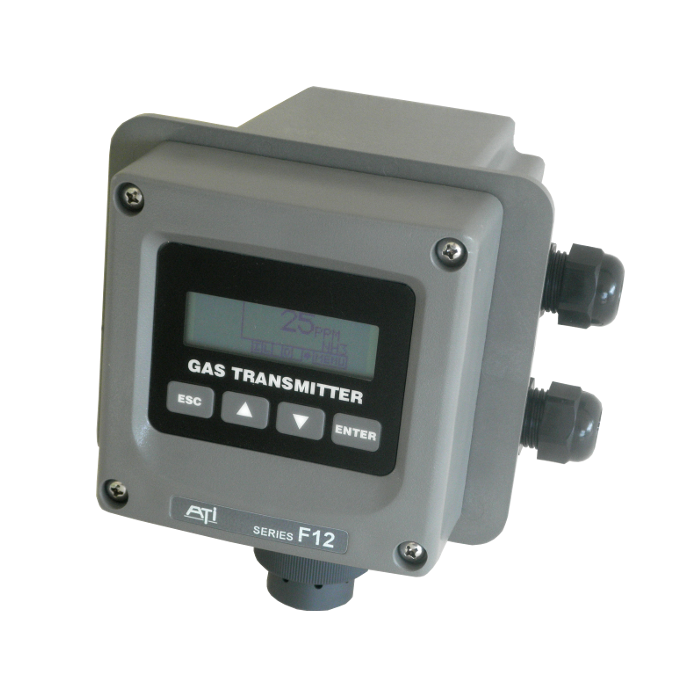

The Series F12D Ozone Transmitter is well suited for all general purpose applications where toxic gas measurement is required. The F12D version provides a complete AC powered instrument with 3 alarm relays (SPST) availbale for exteral alarming. There are 4 different ozone sensor ranges to choose from.  See below for details.

There are 4 available ozone sensors to choose from:

0-1000 ppb

• 0-1000 ppb standard range
• 0-500 ppb minimum range
• 0-2000 ppb maximum range
• Units of measure = ppb (parts per billion)
• 1 ppb resolution

0-2 ppm

• 0-2 ppm standard range
• 0-1 ppm minimum range
• 0-5 ppm maximum range
• Units of measure = ppm (parts per million)
• 0.01 ppm resolution

0-20 ppm

• 0-20 ppm standard range
• 0-5 ppm minimum range
• 0-200 ppm maximum range
• Units of measure = ppm (parts per million)
• 0.1 ppm resolution

0-1,000 ppm

• 0-1,000 ppm standard range
• 0-200 ppm minimum range
• 0-1,000 ppm maximum range
• Units of measure = ppm (parts per million)
• 1 ppm resolution

F12 Transmitteres use ATI's standard smart sensor for maximum flexibility.  Sensors are easily exchanged and contain all calibration constants in sensor memory, eliminating the need for field calibration of transmitters.  Sensors may be calibrated separetely on the bench and then simply plugged into the transmitter.  Calibrationdata is read into the transmitter automatically and no other adjustments are normally required.  In addition to ozone, there are over 30 other gas sensors available to be used with the F12.  See below or click here for full list.

For Intrinsically Safe (IS) installations, the F12 transmitter is available as an F-12is version.  One version provides for easy interface to RS-484 networks using a standard MODBUS communication protocol.  A second version provides a complete AC powered instrument with 3 alarm relays (SPST) available for external alarming.

F12 Options (how to order):

Note: The F-12 is highly customizable to fit your every need.  Please review the options closely to ensure you choose the right configration for your application.  Please call if you have any questions or need help configuring the right sensor for your application.

Sensor Module: Choose the gas and range of detection required for your application

Transmitter Type:

     -12-30VDC model for RS-485 communication is standard

     -115-230vac, 50/60Hz power with relay board

     -12-30VDC power with relay board

Choose the voltage that is right for you.

Sensor Holder Style:

The sensor of the F12 can be mounted in a variety of ways

     -Integral sensor is standard and contains the standard sensor holder integrated into the enclosure of the F12 out the bottom of the enclosure

     -Remote Sensor holder with Junction box allows for a remote mout sensor at a custom length of the customers choosing, (greater than the standard 6' cable)

     -Integral heated sensor holder provides a heated sensor in the integral sensor holder

     -Remote heated sensor holder with junction box allows for a remote mount sensor at custom length with a heated sesnor

     -Duct mount sensor holder provides a duct mount sensor for duct, or pipe mount application

     -Remote sensor holder with 6 foot cable provides a remote mount sensor in a pre-wired 6'cable, this cable length is fixed and cannot be chaned

Digital Output:

     -Standard 4-20 mA output is provided with all sensors

     -HART interface is available for all sensors

     -Modbus interface is only available for RS-485 sensors, and 115 VAC sensors.

F12 Features:

Interchangeable Sensors: Every transmitter will accept up to 45 different sensor modules, greatly reducing the need for multiple transmitter models.

Sensor Auto-Test: ozone generators permanently installed on the sensor verify sensor operation by providing a “bump test” of the sensor from daily to once a week.

Smart Sensor Modules: Plug-in sensors store calibration data, allowing sensors to be calibrated separately from the transmitter. This allows bench calibration (or factory calibration) of sensors to reduce the necessity for carrying calibration gas around the plant.

Alarm & Relay Option: A non-IS version of the transmitter provides 3 integral alarm relays. Relays are programmable for setpoint, hysteresis, on-delay, off-delay, and other variables. Systems with alarms are available for operation from 12-30 VDC supplies or from 115 or 230 VAC power.

Serial Communication Interface: The IS version of the transmitter is available with HART™ communications. The HART protocol supports the HART Universal and Common Practice Commands at 1200 baud using the Bell 202 FSK modem standard. The non-IS versions of the transmitter are available with MODBUS™ communications. The MODBUS protocol supports 9600 baud access to concentration and status information, and supports alarm setup and many other functions.

LCD Graphics Display: ozone Concentrations are displayed in large, easy to read numbers. The display also provides alarm indication and complete menus for setting up operating parameters.

Internal Data Logger: Measured ozone values are stored at user definable intervals and can be recalled when needed on the LCD display. Data can be downloaded using a HART™ or MODBUS™ interface.

Sensor Calibration History: Each time a sensor is zeroed or calibrated, the data is stored in memory. Calibration history can be recalled and sensor condition reviewed by operating personnel whenever necessary.

Non-Intrusive Operation: Operating functions such as calibration, alarm setup, alarm reset, data view, and setup options are all available using sealed front panel switches on the face of the Nema 4X transmitter enclosure.

Heated Sensor Option: For use in applications where condensation is a problem, this heater option keeps the sensor above the dew point to eliminate loss of sensitivity due to moisture blockage on the sensor face.

Output Simulation: Transmitter analog output can be set to user definable values and relay outputs can be set to specific states for complete simulation of detection system operation. Output and alarms may also be inhibited for maintenance and calibration.

Click HERE to add additional gas sensors to your order.

F12 Accessories:

Calibration Adapter: The F12 can be calibrated by performing a zero calibration, and then the calibration adapter is required.

Flowcell Assembly: Allows the F12 to measure a sample gas flowing past the sensor. Sealed flowcell assembly is safe to use and provides accurate gas measurement of sample gas. Use in sample stream with a sample pump or sampler (example: A21 Gas Sampler)

Sensor Module Keeper: Can hold up to 4 sensors and keeps them ready for operation so complete sensor changes and sensor warm-up can be made in less than 1 minute.

Duct Sensor Adapter: Allows the sensors to be held in this adapter, and then secured to a duct or pipe. It has a 1 1/2" MNPT connection.

Panel Mount Bracket: Can be used to panel mount the F12. NOTE: this comes with the standard F12.

RAP-1: Alarm panel that offers visual and audible alarms to indicate gas levels that are unsafe.

RAP-2: Alarm panel that offers visual and audible alarms to indicate when Ozone levels are unsafe.

F12 Specifications:

Ozone Sensor Cross Sensitivities:

Chart below shows the gasses that are cross sensitive and will create a false response to the H10 Ozone Sensor.

Note: 0-1000 ppm low range ozone sensor (H10-14) may exhibit low response to certain other gases not listed.  When applying this sensor to specific applications, it is good practice toverify whether or not any of these potential interferences are present and might present interference issues.

Cross-sensitifity data is approximate and based on exposure under 100 ppm.

Downloads:

F12 Product Spec Sheet

F12 Product Manual

F12 Support Drawings

Links to more info:

Calibration information

ATI Specific Calibration Information

Auto-test Generator

The Auto-test option verifies the serviceability of the transmitter on a prescribed schedule by exposing the sensor to a small amount of ozone, and verifying a minimum response. Three attempts per test are made, and if the sensor does not respond on the third attempt, a fault alarm is triggered (may be optionally disabled).

The test is performed at a specific time of day, and may be scheduled to repeat every 1 to 14 days. The date and time of the next test is available for editing, and the test may be triggered manually at any time, without affecting the preset schedule.

The Auto-test option requires a E18 ozone generator, which must be compatible with the installed sensor’s gas type, and full-scale range. Table below lists gas compatible generators and sensors.

Preconfigured F12D's - These are kept in Stock

Product	Sensor Range	Integrated Relays	Unit Features	Price
Intrinsically Safe F12 Monitor w/ Local Sensor Holder (Preconfigured)	Gas Dependent	No	- Intrisically Safe - Loop powered 4-20 mA output - 12-30 VDC Power - Integral sensor holder	As low as $1,400.00
F12-is Gas Monitor with Sensor Holder & 6ft Cable	0-1,000 ppb 0-2 ppm 0-20 ppm 0-1,000 ppm	No	- Intrinsically Safe - Loop powered 4-20 mA output - 12-30 VDC Power - Remote sensor with 6-foot sensor cable	As low as $1,524.75
Preconfigured F12-D Monitor w/ Sensor Holder & 6ft Cable	0-1,000 ppb 0-2 ppm 0-20 ppm 0-1,000 ppm	Yes	- 120/220 VAC Electrical Power - Remote sensor with 6-foot sensor cable - 3-relay outputs (use settable) - 4-20 mA output	As low as $1,725.00
Preconfigured F12-D Monitor w/ Remote Sensor Holder & Junction Box	0-1,000 ppb 0-2 ppm 0-20 ppm 0-1,000 ppm	Yes	- 120/220 VAC Electrical Power - Remote sensor (up to 100 feet) - 3-relay outputs (use settable) - 4-20 mA output	As low as $1,700.00
Preconfigured F12-D Monitor w/ Local Sensor Holder	0-1,000 ppb 0-2 ppm 0-20 ppm 0-1,000 ppm	Yes	- 120/220 VAC Power - Integral sensor holder - 3-relay outputs (use settable) - 4-20 mA output	As low as $1,880.00
F12-D Gas Monitor with Integral Sensor Holder (12-30 VDC)		Yes	- 12-30 VDC Power - Integral sensor holder - 3-relay outputs (use settable) - 4-20 mA output	As low as $1,975.00

Configurable F12's - Build to Order

Product	Sensor Range	Unit Features	Price
Configurable F12 Ozone Monitor (Intrinsically Safe)	Gas Dependent	-Intrinsically Safe Design -4-20 mA Output -Can be Loop Powered -Remote Sensor Options -Optional Auto-Test Generator -Digital Communications	As low as $1,290.00
Configurable F12-D Ozone Monitor	0-2 ppm 0-20 ppm 0-1,000 ppm 0-1,000 ppb	-3 Built-In Relays -Preconfigured -Integral Sensor Holder -Field Serviceable Sensor -Digital Communications	As low as $1,300.00

Sensors

We provide each sensor with a standard detection range.  However, for specific applications each sensor can be calibrated to custom ranges.  See list below for min, and max range options for each sensor, along with standard range.

Please contact us with any questions on what sensor might be right for you, or if other sensors are available for your application.

Replacement Sensors for D-16

Product	Maximum Range	Minimum Range	Range	Resolution	Price
ATI Acetic Acid vapor Sensor 0-100 ppm (00-1045)	0-500 ppm	0-100 ppm	0-100 ppm	1 ppm	$435.00
ATI Acetylene Sensor 0-500 ppm (00-1057)	0-2000 ppm	0-200 ppm	0-2000 ppm	1 ppm	$380.00
ATI Acid Gases Sensor 0-20 ppm (00-1038)	0-200 ppm	0-10 ppm	0-20 ppm	0.1 ppm	$435.00
ATI Alcohol Sensor 0-200 ppm (00-1043)	0-500 ppm	0-50 ppm	0-200 ppm	1 ppm	$380.00
ATI Alcohol Sensor 0-2000 ppm (00-1044)	0-2000 ppm	0-500 ppm	0-2000 ppm	1 ppm	$380.00
ATI Ammonia Sensor 0-1000 ppm (00-1011)	0-2000 ppm	0-500 ppm	0-1000 ppm	1 ppm	$540.00
ATI Ammonia Sensor 0-200 ppm (00-1010)	0-500 ppm	0-50 ppm	0-200 ppm	1 ppm	$435.00
ATI Arsine Sensor 0-10 ppm (00-1025)	0-200 ppm	0-10 ppm	0-100 ppm	0.1 ppm	$563.00
ATI Arsine Sensor 0-1000 ppb (00-1024)	0-2000 ppm	0-500 ppm	0-1000 ppm	1 ppb	$563.00
ATI Bromine Sensor 0-2 ppm (00-1000)	0-5 ppm	0-1 ppm	0-2 ppm	0.01 ppm	$380.00
ATI Bromine Sensor 0-20 ppm (00-1001)	0-200 ppm	0-5 ppm	0-20 ppm	0.1 ppm	$355.00
ATI Carbon Dioxide Sensor 0-1% (00-1886)	0-1.5%	0-0.2%	0-1%	0.01%	$675.00
ATI Carbon Monoxide Sensor 0-200 ppm (00-1012)	0-1000 ppm	0-50 ppm	0-200 ppm	1 ppm	$355.00
ATI Chlorine Dioxide Sensor 0-1 ppm (00-1425)	0-5 ppm	0-1 ppm	0-1 ppm	0.01 ppm	$435.00
ATI Chlorine Dioxide Sensor 0-1000 ppm (00-1359)	0-1000 ppm	0-200 ppm	0-1000 ppm	1.0 ppm	$485.00
ATI Chlorine Dioxide Sensor 0-2 ppm (00-1004)	0-5 ppm	0-1 ppm	0-2 ppm	0.01 ppm	$400.00
ATI Chlorine Dioxide Sensor 0-20 ppm (00-1005)	0-200 ppm	0-5 ppm	0-20 ppm	0.1 ppm	$375.00
ATI Chlorine Sensor 0-2 ppm (00-1002)	0-5 ppm	0-1 ppm	0-2 ppm	0.01 ppm	$400.00
ATI Chlorine Sensor 0-20 ppm (00-1003)	0-200 ppm	0-5 ppm	0-20 ppm	0.01 ppm	$355.00
ATI Diborane Sensor 0-10 ppm (00-1027)	0-200 ppm	0-10 ppm	0-10 ppm	0.1 ppm	$540.00
ATI Diborane Sensor 0-1000 ppb (00-1026)	0-2000 ppm	0-500 ppm	0-1000 ppb	1 ppb	$590.00
ATI Dimethylamine (DMA) Sensor 0-100 ppm (00-1450)	0-200 ppm	0-100 ppm	0-100 ppm	1 ppm	$495.00
ATI Ethylene Oxide Sensor 0-20 ppm (00-1039)	0-200 ppm	0-20 ppm	0-20 ppm	0.1 ppm	$380.00
ATI Flourine Sensor 0-20 ppm (00-1007)	0-20 ppm	0-5 ppm	0-20 ppm	0.1 ppm	$355.00
ATI Fluorine Sensor 0-2 ppm (00-1006)	0-5 ppm	0-1 ppm	0-2 ppm	0.01 ppm	$380.00
ATI Formaldehyde Sensor 0-1000 ppm (00-1349)	0-2000 ppm	0-500 ppm	0-1000 ppm	1 ppm	$600.00
ATI Formaldehyde Sensor 0-20 ppm (00-1040)	0-200 ppm	0-20 ppm	0-20 ppm	0.1 ppm	$400.00
ATI Germane Sensor 0-10 ppm (00-1029)	0-200 ppm	0-10 ppm	0-10 ppm	0.1 ppm	$540.00
ATI Germane Sensor 0-1000 PPB (00-1028)	0-200 ppm	0-10 ppm	0-1000 ppb	1 ppb	$590.00
ATI Hydrocarbon Sensor (00-1516)	0-500 ppm	0-50 ppm	0-1000 ppm	1 ppm	$465.00
ATI Hydrogen Bromide Sensor 0-20 ppm (00-1455)	0-200 ppm	0-10 ppm	0-20 ppm	0.1 ppm	$435.00
ATI Hydrogen Chloride Sensor 0-20 ppm (00-1017)	0-200 ppm	0-10 ppm	0-20 ppm	0.1 ppm	$435.00
ATI Hydrogen Cyanide Sensor 0-20 ppm (00-1018)	0-200 ppm	0-10 ppm	0-20 ppm	0.1 ppm	$435.00
ATI Hydrogen Fluoride Sensor 0-20 ppm (00-1019)	0-200 ppm	0-10 ppm	0-20 ppm	0.1 ppm	$465.00
ATI Hydrogen Peroxide Sensor 0-1000 ppm (00-1169)	0-2000 ppm	0-200 ppm	0-1000 ppm	1 ppm	$575.00
ATI Hydrogen Peroxide Sensor 0-20 ppm (00-1042)	0-100 ppm	0-10 ppm	0-20 ppm	0.1 ppm	$400.00
ATI Hydrogen Selenide Sensor 0-10 ppm (00-1031)	0-200 ppm	0-10 ppm	0-10 ppm	0.1 ppm	$540.00
ATI Hydrogen Selenide Sensor 0-1000 ppb (00-1030)	0-2000 ppb	0-500 ppb	0-1000 ppb	1 ppb	$590.00
ATI Hydrogen Sensor 0-2000 ppm (00-1041)	0-2000 ppm	0-500 ppm	0-2000 ppm	1 ppm	$435.00
ATI Hydrogen Sensor 0-4% (00-1013)	0-10%	0-1%	0-4%	0.01%	$410.00
ATI Hydrogen Sulfide Sensor 0-50 ppm (00-1020)	0-200 ppm	0-10 ppm	0-50 ppm	0.1 ppm	$400.00
ATI Hydrogen Sulfide Sensor 0-500 ppm (00-1469)	0-1000 ppm	0-200 ppm	0-500 ppm	1 ppm	$465.00
ATI Iodine Sensor 0-2 ppm (00-1036)	0-5 ppm	0-1 ppm	0-2 ppm	0.01 ppm	$380.00
ATI Iodine Sensor 0-20 ppm (00-1037)	0-200 ppm	0-5 ppm	0-20 ppm	0.1 ppm	$355.00
ATI Nitric Oxide Sensor 0-200 ppm (00-1021)	0-500 ppm	0-50 ppm	0-200 ppm	1 ppm	$400.00
ATI Nitrogen Dioxide Sensor 0-20 ppm (00-1022)	0-200 ppm	0-10 ppm	0-20 ppm	0.1 ppm	$380.00
ATI NOx Sensor 0-200 ppm (00-1181)	0-500 ppm	0-50 ppm	0-200 ppm	1 ppm	$380.00
ATI Oxygen Sensor 0-25% (00-1014)	0-25%	0-5%	0-25%	0.01%	$375.00
ATI Ozone Sensor 0-1,000 ppb (00-1163)	0-2,000 ppb	0-500 ppb	0-1000 ppb	1 ppb	$435.00
ATI Ozone Sensor 0-1000 ppm (00-1358)	0-1000 ppm	0-200 ppm	0-1000 ppm	1 ppm	$500.00
ATI Ozone Sensor 0-2 ppm (00-1008)	0-5 ppm	0-0.01 ppm	0-2 ppm	0.01 ppm	$400.00
ATI Ozone Sensor 0-20 ppm (00-1009)	0-200 ppm	0-0.1 ppm	0-20 ppm	0.1 ppm	$350.00
ATI Peracetic Acid Vapor sensor 0-2 ppm (00-1704)	0-5 ppm	0-1 ppm	0-2 ppm	0.1 ppm	$765.00
ATI Peracetic Acid Vapor sensor 0-20 ppm (00-1705)	0-100 ppm	0-10 ppm	0-20 ppm	1 ppm	$715.00
ATI Phosgene Sensor 0-100 ppm (00-1016)	0-100 ppm	0-5 ppm	0-10 ppm	0.1 ppm	$540.00
ATI Phosgene Sensor 0-2ppm (00-1015)	0-5 ppm	0-1 ppm	0-2 ppm	0.01 ppm	$540.00
ATI Phosphine Sensor 0-10 ppm (00-1033)	0-200 ppm	0-10 ppm	0-10 ppm	0.1 ppm	$540.00
ATI Phosphine Sensor 0-1000 ppb (00-1032)	0-2000 ppb	0-500 ppb	0-1000 ppb	1 ppb	$590.00
ATI Phosphine Sensor 0-1000 ppm (00-1034)	0-2000 ppm	0-200 ppm	0-1000 ppm	1 ppm	$620.00
ATI Silane Sensor 0-10 ppm (00-1035)	0-200 ppm	0-10 ppm	0-10 ppm	0.1 ppm	$535.00
ATI Sulfur Dioxide Sensor 0-20 ppm (00-1023)	0-200 ppm	0-10 ppm	0-20 ppm	0.1 ppm	$380.00
