Ozone detection and measurement accurately is possible with the Series-500 Gas Detector. This data can also be logged easily with this device to review later, or for reporting purposes.
The Series-500 from Aeroqual has the most user friendly and powerful data logging software in the industry. This great tool will allow for review and production of charts, or tables within the Aeroqual desktop software, or exporting to a spreadsheet format.
The Series-500 has the capability to store data on it’s internal memory. A total of 8,188 data points can be recorded at time intervals from 1 minute to 30 minutes. This will allow for long term data storage on the device. Data logging intervals can be chosen from 1 minute, to any duration the user chooses. At 5-minute intervals the Series-500 can store data for over 28 days.
Screen shot below shows the table and graph view available in the Aeroqual data logging software. User can choose either table or graph mode, and can choose timeframe to capture data from.
Click image for larger view
Screen below shows the Daily View mode. User can choose to show a summary of data showing each day’s summary of min, max, and average captured data.
Click image for larger view

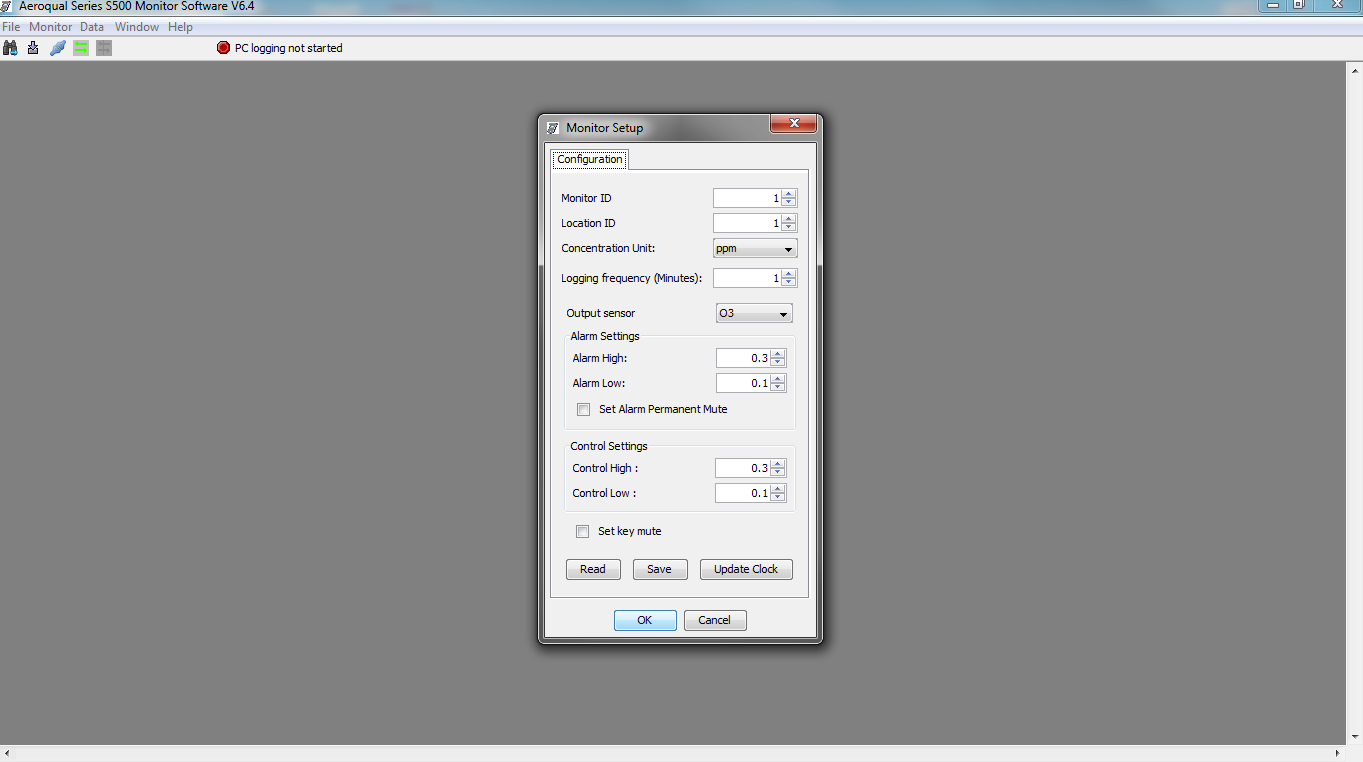

Screen below shows the monitor set-up that can be performed from the Aeroqual Software. Using this softwate the monitor can be plugged into the PC and set-up without having to access the monitor. This is useful for outdoor, or potentially remote monitoring stations. Monitor logging intervals, alarm, and relay set-points can all be changed from your PC.
Click image for larger view
External Data Logger
Also available is an external data logger in the event the Series-500 must remain stationary while data is retrieved and brought to another location. For these purposes we supply the DL-3 data logger.
Using the 0-5 VDC output signal from the S-500 the DL-3 can log and save gas measurements. This handy device is compact and simply unplugs from the cord and can be taken back to the office to download and record the data.
