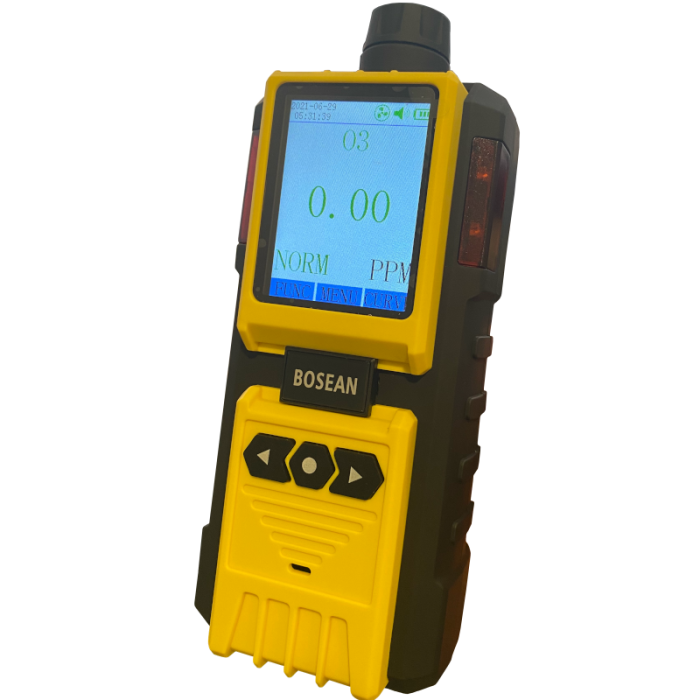

K-600 Ozone Detector
K-600 Ozone Detector
The K-600 is a compact portable gas detector with a wide range of gas selection and ranges.
Please contact us if you are not seeing the range you are needing! We can have a custom ranges made.
- SKU
- K-600
Related Products
Description / K-600 Ozone Detector
The K-600 Portable Gas Detector is great for a multitude of applications. From refinery workers, to firefighters, to maintenance engineers, the K-600 is perfect for detecting all kinds of gas leaks. The K-600 is capable of detecting a wide ragne of gases and its gas curve display allows for extremely easy reading of the air being detected. The user-friendly LCD display makes the K-600 easy to understand and operate. The K-600 is made with a built-in pump which adopts an advanced integrated circuit, enhancing the monitors sensitivity. The high-strength plastic and non-slip ruber make this K-600 water-proof and dust-proof. The K-600 comes with a cord and wall-port for charging the device.
Overview:
| Accuracy | </= 5% F.S. |
| Response Time | </= 30s |
| Operating Environment | -20C - 50C |
| Humidity | 95% RH (no dew) |
| Power Source | DC3.7V Li-on battery, 3200mAh |
| Working Time | >8 hours continuously (without alarming) |
| Charging Time | 6h-8h |
| Sensor Life | 2 years |
| Weight | Approx. 400g (with battery |
| Dimension | 130mm x 67 mm x 30 mm (LxWxH) |
Key Features:
-Gas pump sampling with high sensitivity
-32-bit built-in MCU for high reliability
-Easy operation
-Compact design for easy carrying
-High strength plastics and anti-slip rubber make this sensor high strength (water, dust and explosion-proof)
-Compatible with computers for storing and printing data records
-Gas curve display
Calibration:
Your Bosean sensor will need to be sent back to us to be calibrated. Please click here to see more information on our calibration services, as well as our calibration pricing. Contact Us Today to get your sensor calibrated. *Please Note: There may be additional costs depending on replacement sensor pricing.

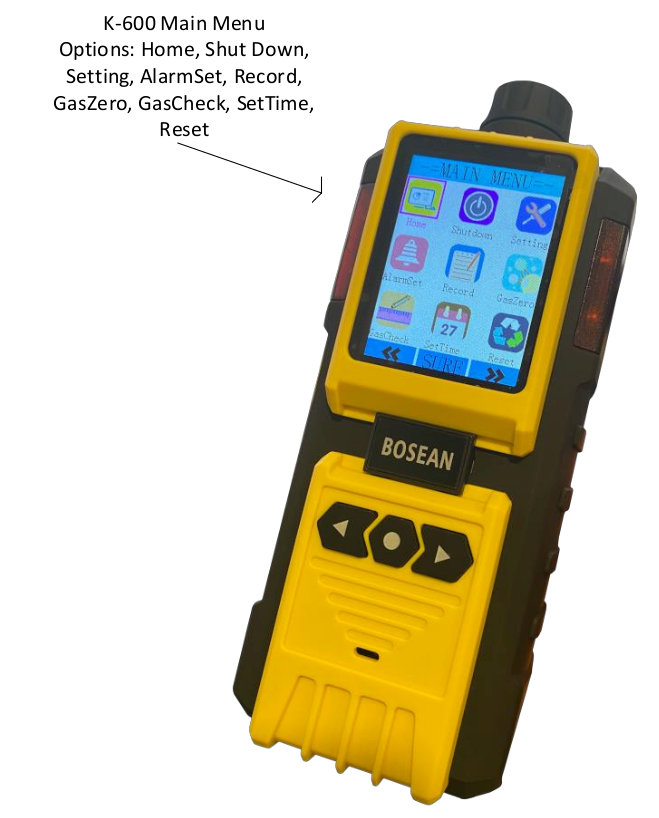

How to use the K-600:
Blog Posts:
Ozone Leak Detection with the K-600
The K-600 is an excellent, budget-friendly device to use for ozone leak detection.

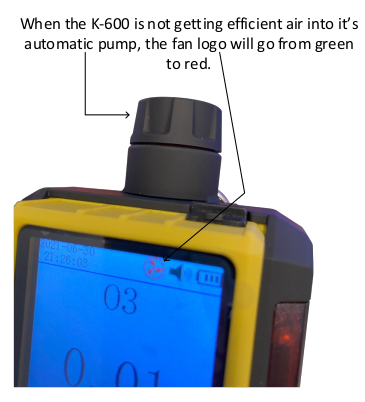

The internal sample pump flows sample gas past the sensor for quick response of elevated ozone levels. The sample gas inlet is located conveniently at the top of the device to allow it to pull sample gas from specific locations and joints. Tubing can be connected to the sample gas inlet to allow for more remote ozone leak detection.
The K-600 Ozone Detector is available with two separate ozone detection ranges.
- 0-1 ppm is ideal of human safety levels of 0.1 ppm and small leak detection. Use care not to overrange this sensor when using for leak detection.
- 0-100 ppm is useful for ozone leak detection with minimal concern for over-ranging but will not provide sufficient low-rate detection for human safety.
Advantages of The K-600 for Ozone Leak Detection
- Budget-friendly option for ozone leak detection
- Long-life battery, minimal recharging requirements
- Compact design
- Allows for tubing to be connected to the sample gas inlet
Click HERE for additional information on ozone leak detection
Specifications:
| Model | Range | Resolution | Low Alarm | High Alarm |
| Ammonia (NH3) | 0-100 ppm | 0.1 ppm | 25 ppm | 50 ppm |
| Benzene (C6H6) | 0-100 ppm | 0.1 ppm | 20 ppm | 50 ppm |
| Carbon Dioxide (CO2) | 0-50,000 ppm | 1 ppm | 1000 ppm | 2000 ppm |
| Carbon Monoxide (CO) | 0-100 ppm | 1 ppm | 35 ppm | 200 ppm |
| Chlorine (Cl2) | 0-20 ppm | 0.1 ppm | 5 ppm | 10 ppm |
| Combustibles (EX) | 0-100% LEL | 1% LEL | 20% LEL | 50% LEL |
| Ethanol (C2H5OH) | 0-100% LEL | 1% LEL | 20% LEL | 50% LEL |
| Ethylene (C2H4) | 0-100% LEL, 0-20 ppm | 1% LEL, 1 ppm | 20% LEL, 5 ppm | 50% LEL, 10 ppm |
| Ethylene Oxide (C2H4O) | 0-100 ppm | 1 ppm | 10 ppm | 15 ppm |
| Formaldehyde (CH20) | 0-10 ppm | 1 ppm | 2 ppm | 5 ppm |
| Hydrogen (H2) | 0-1000 ppm | 1 ppm | 35 ppm | 200 ppm |
| Hydrogen Chloride (HCL) | 0-10 ppm | 0.1 ppm | 10 ppm | 20 ppm |
| Hydrogen Cyanide (HCN) | 0-10 ppm | 0.1 ppm | 10 ppm | 20 ppm |
| Hydrogen Sulfide (H2S) | 0-100 ppm | 1 ppm | 10 ppm | 20 ppm |
| Methane (CH4) | 0-100% LEL | 1% LEL | 20% LEL | 50% LEL |
| Nitric Oxide (NO) | 0-250 ppm | 1 ppm | 20 ppm | 50 ppm |
| Nitrogen Dioxide (NO2) | 0-20 ppm | 0.1 ppm | 5 ppm | 10 ppm |
| Oxygen (O2) | 0-30% vol | 0.1% vol | 19.5% vol | 23.5% vol |
| Ozone (O3) | 0-1 ppm, 0-100 ppm | 0.1 ppm | 5 ppm | 10 ppm |
| Phosphine (PH3) | 0-20 ppm | 0.1 ppm | 0.3 ppm | 5 ppm |
| Propane (C3H8) | 0-100% LEL | 1% LEL | 20% LEL | 50% LEL |
| Sulfur Dioxide (SO2) | 0-20 ppm | 0.1 ppm | 2 ppm | 5 ppm |
| VOC | 0-100 ppm | 0.1 ppm | 20 ppm | 50 ppm |
Downloadable Content:
More Information
| Manufacturer | Bosean |
|---|---|
| Rental Period | Weekly |
| Gas | Ammonia (NH3), Benzene, Carbon Dioxide (CO2), Carbon Monoxide (CO), Chlorine (Cl2), Ethanol, Ethylene, Ethylene Oxide (ETO), Formaldehyde (CH2O), Hydrogen (H2), Hydrogen Chloride (HCl), Hydrogen Cyanide (HCN), Hydrogen Sulfide (H2S), Methane (CH4), Nitric Oxide (NO), Nitrogen Dioxide (NO2), Oxygen (O2), Ozone (O3), Phosphine (PH3), Propane, Sulfur Dioxide (SO2), VOC |
| 4-20 mA Output | No |
| Field Replaceable Sensor | No |
| Min, Max, Avg | No |
| Voltage Output | None |
| Datalogging | No |
| Rechargeable | Yes |
| Field Replaceable Battery | Yes |
| Warranty | 1 Year |
| Audible Alarm | Yes |
| Calibration | Annually |
| Sensor Life | 2 years |
| Range | Gas Dependent |
| Unit Features | - Gas pump sampling with high sensitivity - Easy operation - Compact design for easy carrying - High strength plastics and anti-slip rubber make this sensor high strength (water, dust and explosion-proof) - Compatible with computers for storing and printing data records |
| Sensor Range | Gas Dependent - Custom Gases and Ranges Avalible |
| Sensor Range | 0-1 ppm (Human Safety) |
