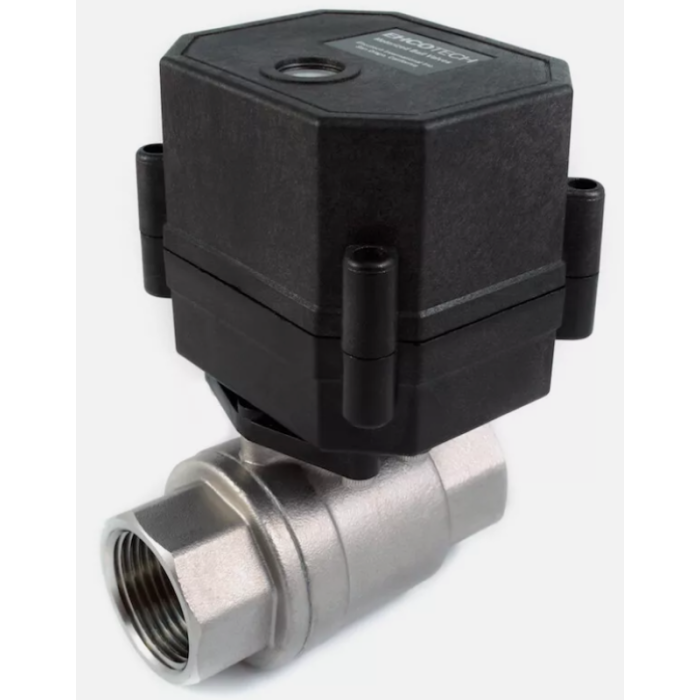

1.5" Motorized Ball Valve - Normally Closed (3-wire)
The valves are durable 2-way, 2-position motorized ball valves with a 2-wire 110 to 240 VAC actuator. Featuring a stainless steel body and 1-1/2” NPT ports, they are ideal for both gravity-fed and pressurized systems. These valves deliver reliable flow control for a variety of applications.
- SKU
- MBV-24-NC 3-wire
- Size
- 1-1/2"
- Material of construction
- Stainless Steel
Description / 1.5" Motorized Ball Valve - Normally Closed (3-wire)
1.5" Motorized Ball Valve - Normally Closed (3-wire):
The Motorized Ball Valves are durable 2-way, 2-position motorized ball valves with a 2-wire 110 to 240 VAC actuator. Featuring a stainless steel body and 1-1/2” NPT ports, they are ideal for both gravity-fed and pressurized systems. These valves deliver reliable flow control for a variety of applications.
Valve Body:
- 1-1/2" NTP Female Threads
- 0-175 PSI Press Rating
- 265 F Max Media Temp
- Stainless Steel Body
- Stainless Steel Ball
Valve Actuator:
- (2 Wire) 110-240 VAC 50/60Hz with automatic voltage detection
- 12 Watt maximum power draw
- Standard cable length: 20"
- Stainless Steel Gears
- Cycle time: 8 seconds
Dimensions:
Downloads:
More Information
| Manufacturer | Oxidation Technologies |
|---|---|
| Listing Description | The valves are durable 2-way, 2-position motorized ball valves with a 2-wire 110 to 240 VAC actuator. Featuring a stainless steel body and 1-1/2” NPT ports, they are ideal for both gravity-fed and pressurized systems. These valves deliver reliable flow control for a variety of applications. |
| Features | Stainless Steel |
| Material of construction | Stainless Steel |
| Operating Pressure | 0-175 PSI |
| Max Pressure | 175 PSI |
| Gas Connections | 1-1/2" NPT Female Threads |
| Dimensions (LxWxH) | 115 mm x 88 mm x 166 mm |
| Operational Temperature Range | 0-265 degrees F |
| Power Requirements | 110 to 240 VAC, or 50/60 Hz |
| Lead Time | 1-2 week lead time |
| Warranty | 1 Year |
| Size | 1-1/2" |
