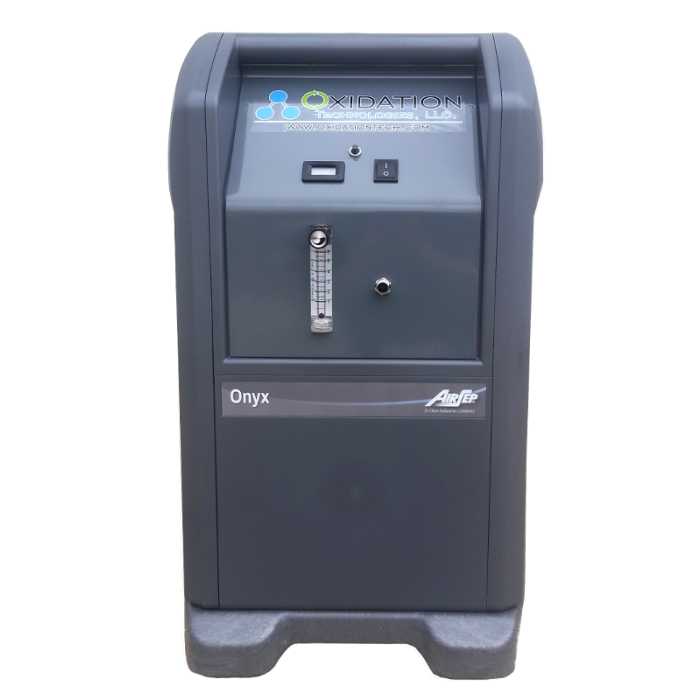

Onyx
12 SCFH oxygen production at 9 PSI is produced by the Onyx oxygen concentrator module.
- SKU
- Onyx
Related Products
Description / Onyx
Specifically designed for reliability, energy efficiency, and ease-of-use, there are thousands of Onyx PSA Oxygen Generators currently in use throughout the world. The Onyx’s reliability, low noise level, and ability to deliver up to 95% oxygen concentration make it a perfect fit for many applications.
Features:
-Self-Contained
-Transportable
-Advanced Engineering
-Easy to Install and Maintain
-Low Operating Cost
Product Characteristics:
|
Performance Data: Product Flow Oxygen Delivery Pressure |
12 SCFH 9 PSI (62 kPa) |
| Product Concentration | Up to 95% |
| Product Dew Point | -100°F (-73°C) |
|
Dimensions (WxDxH) |
16 x 15 x 29 inches (40 x 37 x 72 cm) |
|
Weight |
51 lbs (24 kg) (Add 1 lb for 220 V Unit) |
|
Physical Connections Product Gas Outlet |
1/4" FNPT JIC-8 |
| Ambient Operating Conditions |
Locate the oxygen concentrator system in a well-ventilated area that is protected from weather elements. Temps should remain between 40°F (4°C) and 112°F (44°C) |
| Control Power Requirements (Single Phase) |
120 V ~ ± 10%, 60 Hz, 5.0 A 220 V ~ ± 10%, 50 Hz, 2.5 A 220 V ~ ± 10%, 60 Hz, 2.3 A |
Typical Applications:
Manufacturing
-Glass Work/Blowing
-Brazing/Sodering/Jewelry
Environmental
-Ozone (Generator) Feed Gas
-Environmental Remediation
Additional
-Fish Farming
-Laboratory Experiments
-Aquaponics
-Hydroponics
| Product | Listing Description | Price |
|---|---|---|

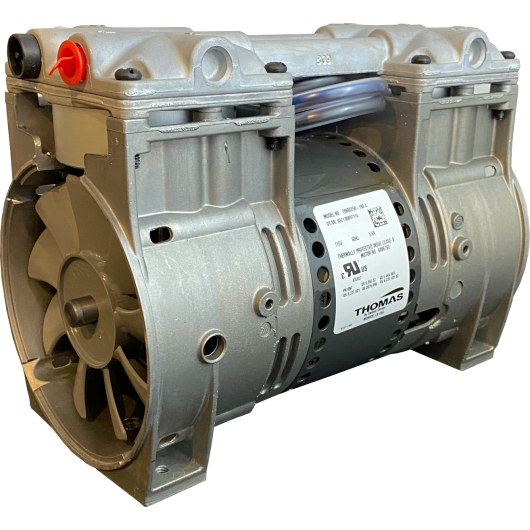

 120/60 Compressor for Topaz or Onyx
|
Replacement compressor for the Topaz Oxygen Generator. Replacement for Topaz 120 V, 60 Hz unit after 12,000 hours AirSep Part Number: CO240-1 |
$260.00
|
 8 amp Circuit Breaker
|
8 amp Circuit Breaker for the Onyx, Onyx Plus, Onyx Ultra, Topaz and Topaz Plus AirSep Part Number: CR001-1 |
$15.00
|

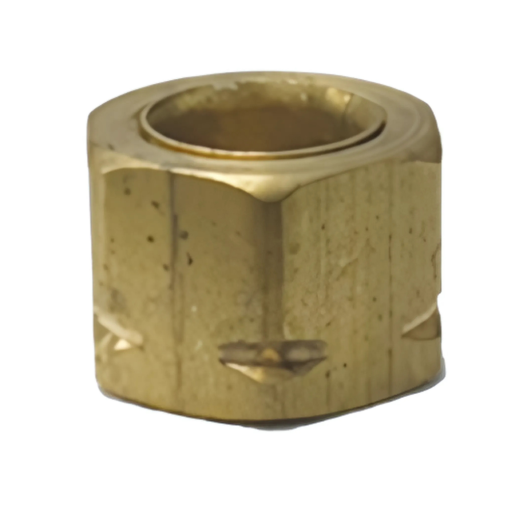

 Brass Compression Nut
|
Brass compression nut AirSep Part Number: F0135-2 |
$6.00
|

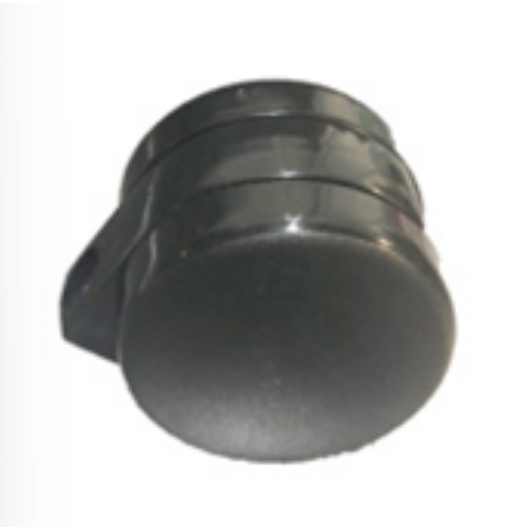

 Caster Wheel for the Onyx, Onyx Plus and Onyx Ultra
|
Caster Wheel for the Onyx, Onyx Plus and Onyx Ultra AirSep Part Number: CS014-1 |
$50.00
|

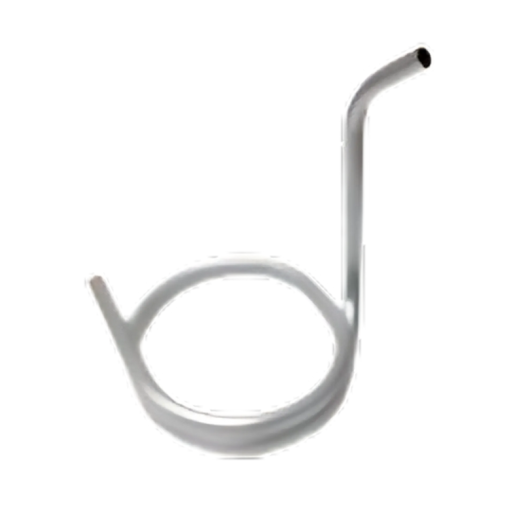

 Heat Exchanger
|
The heat exchanger reduces the temperature of the compressed air. The heat exchanger located at the bottom center of the compressor. AirSep Part Number: HX002-2 |
$10.00
|

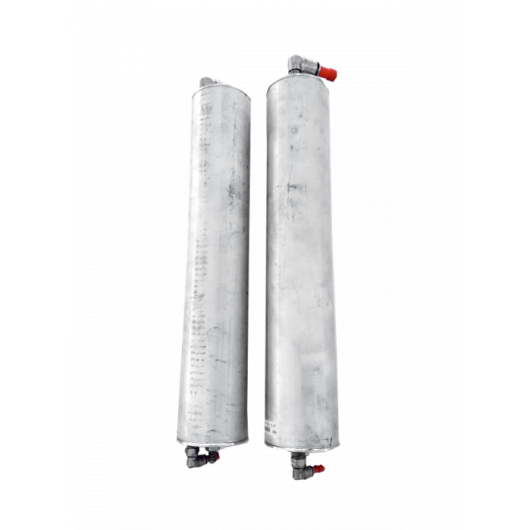

 Onyx Sieve Beds
|
Replacement set of Onyx beds for the Onyx Oxygen Generator. AirSep Part Number: BE036-8S |
$400.00
|
 Rebuild Compressor Kit for the Onyx or Topaz
|
Replacement Trigon compressor kit for the Topaz Oxygen Generator. AirSep Part Number: CO012-11 |
$62.00
|
 Solenoid Valve Rebuild Kit
|
Rebuild Solenoid Valve Kit for the Onyx and Topaz AirSep Part Number: VA034-1 |
$20.00
|
120/60 Compressor for Topaz or Onyx
Listing Description
Replacement compressor for the Topaz Oxygen Generator. Replacement for Topaz 120 V, 60 Hz unit after 12,000 hours
AirSep Part Number: CO240-1
8 amp Circuit Breaker
Listing Description
8 amp Circuit Breaker for the Onyx, Onyx Plus, Onyx Ultra, Topaz and Topaz Plus
AirSep Part Number: CR001-1
Brass Compression Nut
Listing Description
Brass compression nut
AirSep Part Number: F0135-2
Caster Wheel for the Onyx, Onyx Plus and Onyx Ultra
Listing Description
Caster Wheel for the Onyx, Onyx Plus and Onyx Ultra
AirSep Part Number: CS014-1
Heat Exchanger
Listing Description
The heat exchanger reduces the temperature of the compressed air. The heat exchanger located at the bottom center of the compressor.
AirSep Part Number: HX002-2
Onyx Sieve Beds
Listing Description
Replacement set of Onyx beds for the Onyx Oxygen Generator.
AirSep Part Number: BE036-8S
Rebuild Compressor Kit for the Onyx or Topaz
Listing Description
Replacement Trigon compressor kit for the Topaz Oxygen Generator.
AirSep Part Number: CO012-11
Solenoid Valve Rebuild Kit
Listing Description
Rebuild Solenoid Valve Kit for the Onyx and Topaz
AirSep Part Number: VA034-1

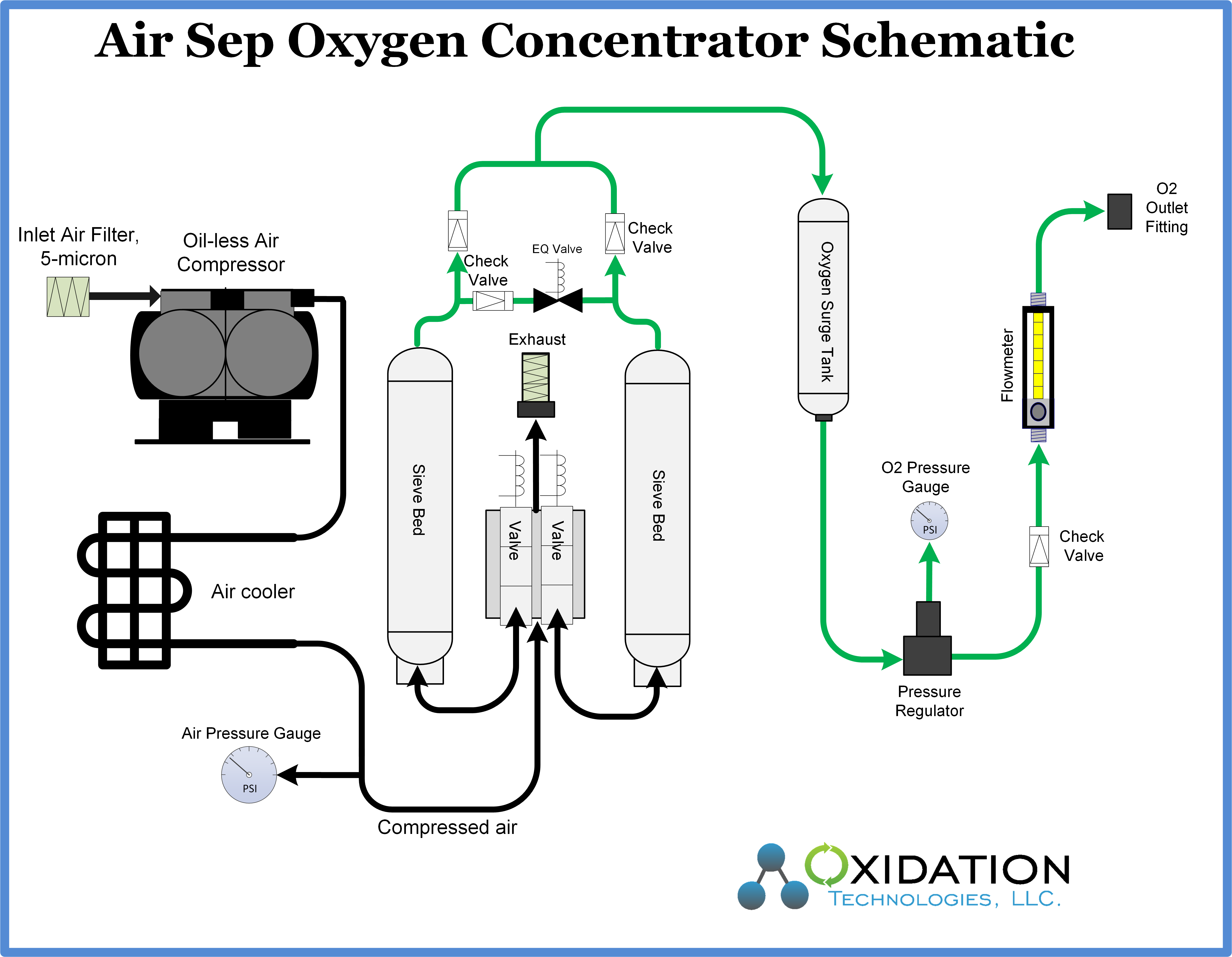

What is Pressure Swing Adsorption (PSA):
Clean, dry compressed air is fed into the first molecular sieve bed. Nitrogen is adsorbed, while oxygen is allowed to flow through. When the sieve in the first bed becomes full of nitrogen, the airflow is then directed into the second bed. As the second bed separates the oxygen from the nitrogen, the first bed vents its nitrogen into the atmosphere. Compressed air is once again fed into the first bed, and the process is repeated continuously. A constant flow of oxygen is reliably produced.
More information on How Oxygen concentrators Work available HERE
Downloads:
More Information
| Manufacturer | Air Sep |
|---|---|
| Listing Description | 12 SCFH @ 9 PSI |
| Internal Compressor | Yes |
| O2 Delivery PSI | 9 PSI |
| Nominal Gas Flow Rate | 12 SCFH |
| Operating Pressure | 9 PSI |
| Max Pressure | 9 PSI |
| Gas Connections | 1/4" FNPT JIC-8 |
| Dimensions (LxWxH) | 16 x 15 x 29 inches |
| Operational RH Range | NA |
| Operational Temperature Range | NA |
| Power Requirements | 120V ~ ±10%, 60 Hz, 5.0 A or 220V ~ ±10%, 50 Hz, 2.5 A or 220V ~ ±10%, 60 Hz, 2.3 A |
| Lead Time | In Stock |
| Warranty | 1 Year |
| Country of Origin | USA |
| Oxygen Production | 12 SCFH |
| Description | Turnkey unit with built-in compressor |
