OXO10-OEM-Assembly
21 SCFH (10 LPM) oxygen production from an OEM oxygen concentrator moduel. Oxygen flows up to 21 SCFH @ 15 PSI. Great plug-and-play option!
- SKU
- OXO10-OEM-Assembly
Related Products
Description / OXO10-OEM-Assembly

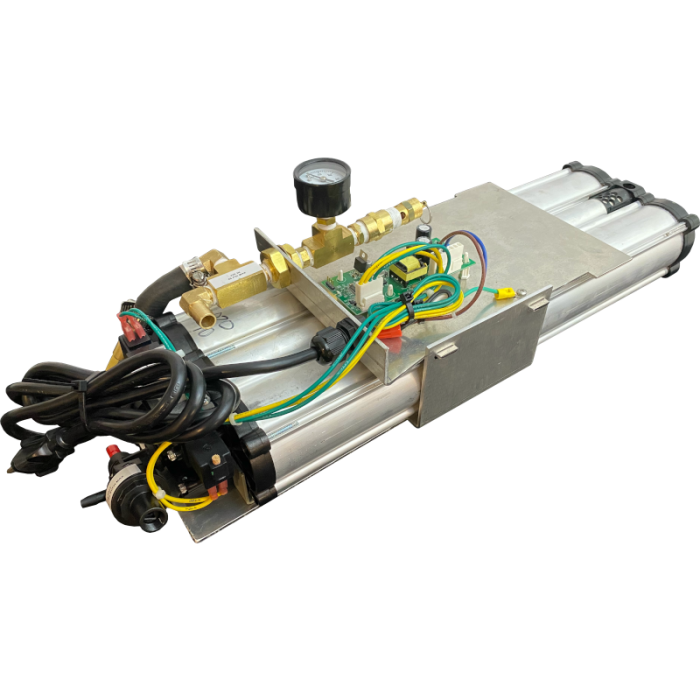

The OXO10-OEM-Assembly is a OEM oxygen concentrator module and requires only electrical power and compressed air for operation. It's compact design makes it great to fit into your existing system where good oxygen purity is required.
Features:
-Packaged OEM oxygen concentrator requires only compressed air and electrical power
-Includes air pressure gauge
-Includes air pressure relief valve for safety
-Reliable Oxygen Production
-Rebuildable design with replaceable sieve beds and valves
-Low-cost long-term operation due to replaceable parts
-Easily Integrated
Product Characteristics:
|
Input Air Requirements: Flow Pressure |
4 SCFM 30 PSI |
|
Performance Data: Product Flow Oxygen Delivery Pressure |
10 LPM (21 SCFH) up to 15 PSI |
| Product Concentration | 90-95% |
| Product Dew Point | -100°F (-73°C) |
| Dimensions (DxH) |
7" wide x 4" deep x 20" tall |
| Weight | 10lbs |
|
Physical Connections Compressed Air Inlet Product Gas Outlet |
3/8" ID tubing 1/4" OD tubing |
| Ambient Operating Conditions |
Locate the oxygen concentrator system in a well-ventilated area that is protected from weather elements. Inside room or enclosure: Temps should remain between 40°F (4°C) and 130°F (54°C) In storage: Temps should remain between 0°F (-18°C) and 140°F (60°C) |
| Control Power Requirements (Single Phase) | 120 V, 50/60 Hz, (220 VAC optional) |
| Compressed Air Input Requirements | Clean Air (oil-less). Max Temp of 170°F (77°C). Performance Rated at 120°F (49°C). |
What is Pressure Swing Adsorption (PSA)
Clean, dry compressed air is fed into the first molecular sieve bed. Nitrogen is adsorbed, while oxygen is allowed to flow through. When the sieve in the first bed becomes full of nitrogen, the airflow is then directed into the second bed. As the second bed separates the oxygen from the nitrogen, the first bed vents its nitrogen into the atmosphere. Compressed air is once again fed into the first bed, and the process is repeated continuously. A constant flow of oxygen is reliably produced.
More Information
| Manufacturer | Oxidation Technologies |
|---|---|
| Listing Description | 21 SCFH @ 15 PSI |
| Internal Compressor | No |
| O2 Delivery PSI | 15 PSI |
| Nominal Gas Flow Rate | 21 SCFH (10 LPM) |
| Operating Pressure | 15 PSI |
| Max Pressure | 15 PSI |
| Gas Connections | 1/4" OD tubing |
| Dimensions (LxWxH) | 7" wide x 4" deep x 20" tall |
| Operational RH Range | NA |
| Operational Temperature Range | NA |
| Power Requirements | 115V, 60 Hz |
| Lead Time | In Stock |
| Warranty | 1 Year |
| Country of Origin | USA |
| Description | Requires 4 CFM @ 30 PSI |
