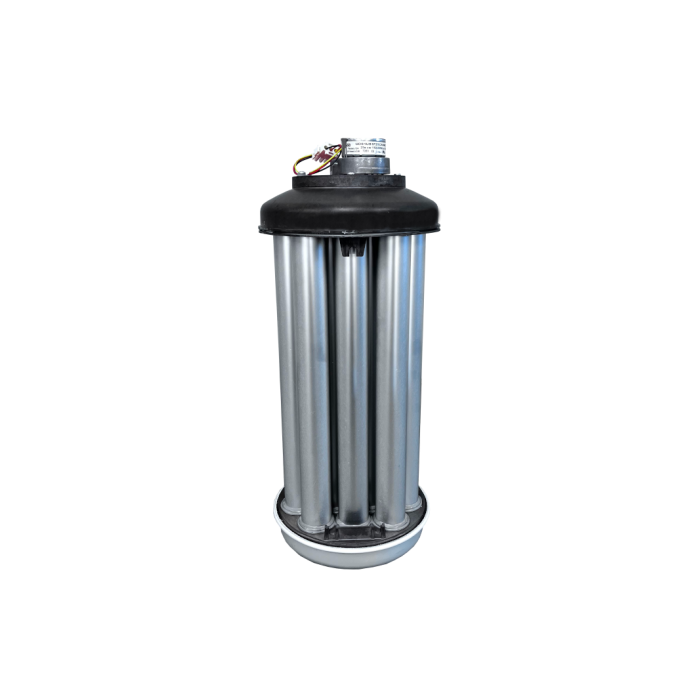

23 SCFH oxygen production at 22 PSI is produced by an ATF-23 oxygen concentrator module.


ATF Oxygen Modules incorporate proven pressure swing adsorption (PSA) principles into a unique patented design, which allows these systems to be compact, efficient, rugged, and lower in cost. ATF modules offer unparalleled design flexibility and enable applications where on-site/on-board oxygen generation was previously impractical.

A patented single rotary distribution valve built into the ATF module continually rotates at low speed by a small motor. The valve is maintenance-free, self-cleaning, insensitive to contamination, and invulnerable to wear. It directs the flow of compressed air to a group of four sieve beds (adsorption), while another four beds are purged into the atmosphere through the valve (desorption). The remaining four of the twelve beds are interconnected through the valve to equalize pressure as the sieve beds sequentially transition between adsorption and desorption. The small amplitutde pressure swings generated by the twelve sieve beds eliminate loud noise pulses, eliminate the need for a pressure regulator, and reduce compressor wear.



     -Reliable Oxygen Production

     -Environmentally Tolerant

     -Constant Pneumatic Impedance

     -Constant Delivery Pressure

     -Easily Integrated


Product Characteristics:

Input Air Requirements:




120 LPM (4.2 SCFM)

22 PSI (152 kPa)

Performance Data:

Product Flow

Oxygen Delivery Pressure


11 LPM (23 SCFH)

7 PSI (48 kPa)

Product Concentration 90-95%
Product Dew Point -100°F (-73°C)
Dimensions (DxH)

8 x 20 inches

21 x 51 cm

Weight 14.7 lbs (6.7 kg)

Physical Connections

Compressed Air Inlet

Product Gas Outlet


1/2" ID tubing

1/4" ID tubing

Ambient Operating Conditions

Locate the oxygen concentrator system in a well-ventilated area that is protected from weather elements.

Inside room or enclosure: Temps should remain between 40°F (4°C) and 130°F (54°C)

In storage: Temps should remain between 0°F (-18°C) and 140°F (60°C)

Control Power Requirements (Single Phase) 120 V / 208-240 V ~ ± 10%, 50 / 60 Hz, 0.025 A or 208-240 V ~ ± 10%, 50 Hz, 0.025A
Typical Power Consumption 3 W
Gear Motor 7371 (FMR 1268) / 7350 (FMR 1250)
Compressed Air Input Requirements Clean Air (oil-less). Max Temp of 170°F (77°C). Performance Rated at 120°F (49°C).

Two Integral Mounting Pads Provided.

Toe Clamps (Optional)

Vertical Mounting Preferred.

Must Be Isolated From Compressor Vibration.

Sequal Part Number

3161V , 3239V


Typical Applications:



     -Oxygen Therapy

     -Veterinary Medicine



     -Glass Work/Blowing


     -Ozone (Generator) Feed Gas

     -Environmental Remediation


     -Fish Farming



What is Pressure Swing Adsorption (PSA)

Clean, dry compressed air is fed into the first molecular sieve bed.  Nitrogen is adsorbed, while oxygen is allowed to flow through.  When the sieve in the first bed becomes full of nitrogen, the airflow is then directed into the second bed.  As the second bed separates the oxygen from the nitrogen, the first bed vents its nitrogen into the atmosphere.  Compressed air is once again fed into the first bed, and the process is repeated continuously.  A constant flow of oxygen is reliably produced.

PSA oxygen generator description


ATF Specifications

ATF Brochure

More Information
Manufacturer Air Sep
Call For Price No
Listing Description 23 SCFH @ 22 PSI
Oxygen Production 21-24 SCFH
Internal Compressor No
O2 Delivery PSI 9 PSI
Nominal Gas Flow Rate 23 SCFH
Operating Pressure 7 PSI
Max Pressure 9 PSI
Gas Connections 1/4" ID tubing
Dimensions (LxWxH) 11" wide x 11" deep x 23" tall
Operational RH Range NA
Operational Temperature Range NA
Power Requirements 120 V / 208-240 V ~ ±10%, 50/60 Hz, 0.025 A or 208-240 V ~ ±10%, 50 Hz, 0.025 A
Lead Time In Stock
Warranty 1 Year
Country of Origin USA
Description Requires 4.2 CFM air @ 4.2 PSI
