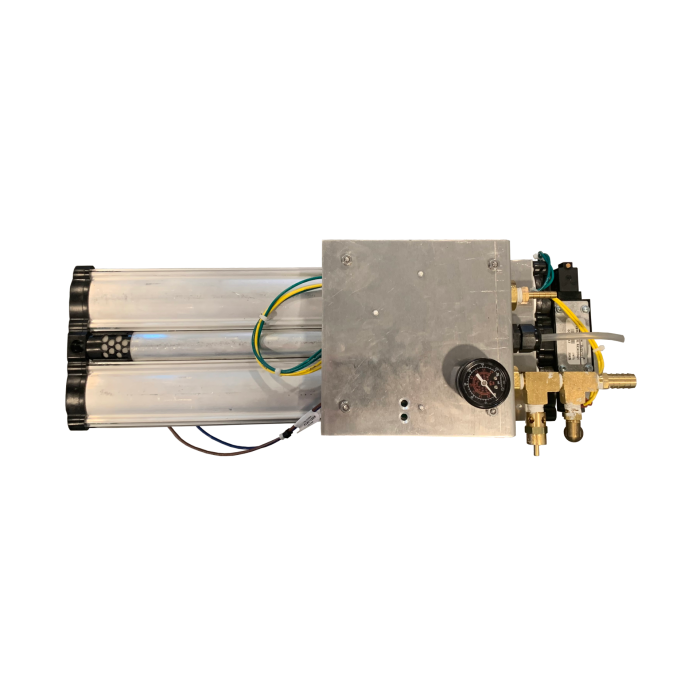

OXO8-OEM-Assembly

16.88 SCFH (8 LPM) oxygen production from an OEM oxygen concentrator moduel.  Oxygen flows up to 16.88 SCFH @ 15 PSI. Great plug-and-play option!

$1,830.00

The OXO8-OEM-Assembly is a OEM oxygen concentrator module and requires only electrical power and compressed air for operation.  It's compact design makes it great to fit into your existing system where good oxygen purity is required.



Features:

     -Packaged OEM oxygen concentrator requires only compressed air and electrical power

     -Includes air pressure gauge

     -Includes air pressure relief valve for safety

     -Reliable Oxygen Production

     -Rebuildable design with replaceable sieve beds and valves

     -Low-cost long-term operation due to replaceable parts

     -Easily Integrated



Product Characteristics:

Input Air Requirements:

Flow

Pressure



4 SCFM

30 PSI

Performance Data:

Product Flow

Oxygen Delivery Pressure



8 LPM (16.88 SCFH)

up to 15 PSI

Product Concentration 90-95%
Product Dew Point -100°F (-73°C)
Dimensions (DxH)

7" wide x 4" deep x 18" tall

Weight 10lbs

Physical Connections

Compressed Air Inlet

Product Gas Outlet



3/8" ID tubing

1/4" OD tubing

Ambient Operating Conditions

Locate the oxygen concentrator system in a well-ventilated area that is protected from weather elements.

Inside room or enclosure: Temps should remain between 40°F (4°C) and 130°F (54°C)

In storage: Temps should remain between 0°F (-18°C) and 140°F (60°C)

Control Power Requirements (Single Phase) 120 V, 50/60 Hz, (220 VAC optional)
Compressed Air Input Requirements Clean Air (oil-less). Max Temp of 170°F (77°C). Performance Rated at 120°F (49°C).
  •

What is Pressure Swing Adsorption (PSA)

Clean, dry compressed air is fed into the first molecular sieve bed.  Nitrogen is adsorbed, while oxygen is allowed to flow through.  When the sieve in the first bed becomes full of nitrogen, the airflow is then directed into the second bed.  As the second bed separates the oxygen from the nitrogen, the first bed vents its nitrogen into the atmosphere.  Compressed air is once again fed into the first bed, and the process is repeated continuously.  A constant flow of oxygen is reliably produced.

PSA oxygen generator description











More Information
Manufacturer Oxidation Technologies
Call For Price No
Listing Description

16.88 SCFH @ 15 PSI

Internal Compressor No
O2 Delivery PSI 15 PSI
Nominal Gas Flow Rate 16.88 SCFH (8 LPM)
Operating Pressure 15 PSI
Max Pressure 15 PSI
Gas Connections 1/4" OD tubing
Dimensions (LxWxH) 7" wide x 4" deep x 18" tall
Operational RH Range NA
Operational Temperature Range NA
Power Requirements 115V, 60 Hz
Lead Time In Stock
Warranty 1 Year
Country of Origin USA
Description Requires 4 CFM @ 30 PSI
