True Catalytic Ozone Destruct Device will safely catalyze ozone to oxygen reliably with no consumables.  The CDU-30 is compatible with wet or dry ozone gas.  For use with wet ozone gas a heater element is required.

The CDU Ozone Destruct Device uses a simple design with all stainless steel and Teflon materials touching ozone gas.  This will provide excellent material compatibility and longevity.

The inlet of the CDU is on the bottom, air flows up through the catalyst bed to the outlet on the top.  Both inlet and outlet use 1/2" Female NPT connections for secure connections.  An air gap is used on the inlet to ensure no short circuiting of the ozone gas and room for any potential condensation to be converted safely to vapor form in the heated area of the destruct unit.  This ensures the catalyst is not damaged by water droplets on the catalyst material.

Flow capacities:

• 30 LPM (63 SCFH) Ozone gas flow rates at concentrations above 10% by weight will be reduced by 99.96%.  Lower flow-rates will increase ozone destruction efficiency linearly, allowing for 100% ozone destruction when applicable.

Standard Features:

CDU-30 Ozone Destruct Unit – Stainless steel destruct unit filled with ozone destruct catalyst.  Shell dimensions are 2” diameter x 10” tall.  With a proper air-gap at inlet and outlet this provides a velocity of 0.76 ft/seconds and a contact time of 1 second.

Inlet/Outlet Fittings – Connections are 1/2" Female NPT connections at the inlet and outlet

Replaceable Catalyst — Catalyst is replaceable easily with a removable threaded cap, screens used to keep the catalyst in place are also replaceable

Replaceable Catalyst:

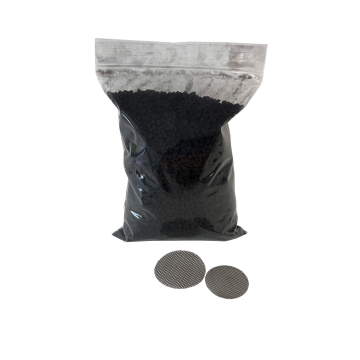

The catalyst material used in the CDU Ozone Destruct Device is completely replaceable.  While the catalyst is expected to have a life of many years in dry gas applications and at least 1 year in wet gas applications it will become contaminated with impurities in the air and loose effectiveness over time.  Replacing the catalyst material is very simple.  The top cap of the CDU is easily removable with a screen and gasket in place.  Old catalyst can be poured out of the top, and replaced.  Complete maintenance should take no longer than 30 minutes.

A complete catalyst replacement kit is available that includes the required catalyst material, replacement screens, and a new gasket.  Follow this link for details and to purchase

CDU-30 Options:

The CDU-30 Ozone Destruct Unit is configurable with the options shown in the purchasing section of this page.  These are detailed below.

Larger units and custom units are available upon request.

Typical Install:

Below is a drawing of a typical installation of the CDU-30 ozone destruct device used with a high concentration ozone analyzer.  In this configuration, ozone generator output can be measured safely in real-time with an ozone analyzer.  The ozone analyzer exhaust will flow to the CDU-30 to safely be reverted to oxygen.

Below is a drawing of the CDU-30 ozone destruct unit installed on an ozone water contact tank.  A heater is required to keep moisture from condensing on the catalyst.

The check-valves shown should be installed to ensure gas flows only one direction through the destruct unit.

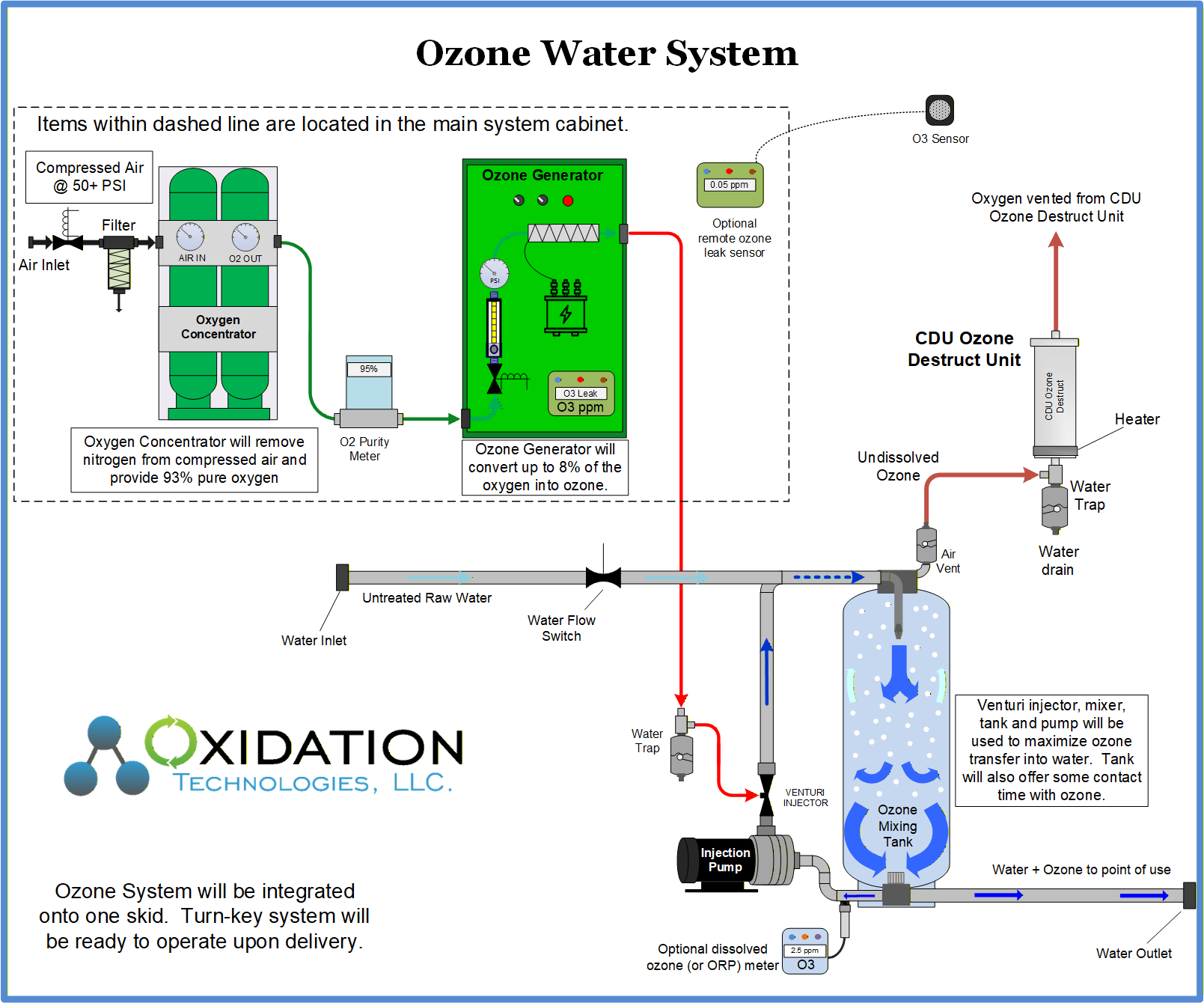

Below is a drawing of the CDU-30 ozone destruct unit installed on an ozone water system with an off-gas vent.  Due to the small water droplets that can escape from the pressurized tank, the water trap is required along with the heater band on the CDU-30.

Drawings:

Below are drawings of the CDU-30

Frequently Asked Questions:

QUESTION: What type of gaseous Ozone Destruct Unit is right for my process?

ANSWER:

There are a variety of factors to consider when determining what device and what configuration you should use. Below are a few of the most common factors to consider.

• Will a High Concentration Destruct Unit or Ambient Air Unit be required?

  • High concentration is commonly referred to “Process Gas” destruct unit

  • High concentration = 1 ppm ozone or greater

  • Ambient = Less than 1 ppm ozone

• Will the gas stream be Wet or Dry? Wet gas streams require a heater band and a specific design inside the destruct unit to eliminate the potential of moisture condensation on the destruct media.

  • Wet = Any air stream with the potential of condensation

  • Dry = Process gas streams with dry-air or oxygen feed-gas directly from an ozone generator

QUESTION: What is a High concentration Ozone Destruct Unit?

ANSWER:

A high-concentration destruct unit will revert ozone (O₃) gas back to oxygen (O₂) in the gas phase at ozone concentrations above 20% by weight. These units will use Carulite-200 catalyst media in a stainless steel shell. Proper design will consider air-speed velocity past the catalyst material. When designed properly, an ozone destruction efficiency of 99.96% will be achieved at peak design flow.  Higher ozone destruct efficiencies are realized at lower flow-rates.

Oxidation Technologies builds the CDU-Series ozone destruct units to work with high-concentration applications. Take note of the Wet or Dry gas flow info below to determine what options may be necessary and how to size the unit properly.

QUESTION: What is the catalyst material used in the CDU-Series Destruct Units?

ANSWER:

Carulite-200 is used as the destruct media in all CDU-Series and High Concentration Ozone Destruct Units. Carulite-200 is a hopcalite-type of catalyst using manganese dioxide and copper oxide. Carulite-200 is a true catalyst method of ozone destruction. 99.96% efficient at rated flow-rates. Works well with dry ozone gas and humid gas such as off-gassed ozone from a water system.  Carulite-200 performs well in both dry and humid gas streams but should be protected from:

• Condensed water
• Volatile organic compounds (VOCs)
• Acids
• Dust contamination

QUESTION: Can I get an SDS (MSDS) for Carulite-200?

ANSWER:

Yes link here – Caulite-200 Safety Data Sheet

QUESTION: How long will Carulite-200 last? Does it require replacement?

ANSWER:

Although Carulite-200 is a true catalyst (not consumed in the reaction), it gradually degrades due to dusting, contamination, or poisoning.

• Typical service life: ~1 year under normal conditions.

• Recommended maintenance: Replace annually to maintain performance and safety.
  Catalyst life may be shorter in humid or contaminated gas streams.

QUESTION: My Carulite-200 Catalyst got wet, do I need to replace it?

ANSWER:

Replacement of the catalyst material is the simplest solution and offers the highest level of confidence moving forward.

However, it can sometimes be recovered.

• Remove it from the destruct unit.

• Bake in an oven at 500°F (260°C) for several hours until completely dry.

• Allow to cool before reuse.
  This process may also remove some VOC or dust contamination. However, for reliability, replacement is usually easier and safer.

QUESTION: Is Carulite-200 safe to handle?

ANSWER:

Yes. Carulite-200 is not classified as hazardous, but it is a fine granular powder. Use normal PPE for dusty materials — gloves, eye protection, and a dust mask or respirator if handling large quantities.

QUESTION: How do I dispose of Carulite-200?

ANSWER:

Carulite-200 is not a hazardous waste substance and can be disposed of in landfills. However, if the Carulite has been poisoned with toxic or hazardous materials, proper disposal criteria of those materials should be followed.

QUESTION: What destruction efficiency can I expect?

ANSWER:

Properly designed ozone destruct units achieve ≥99.96% destruction efficiency at maximum design flow-rate.  Lower flow-rates will achieve higher destruction efficiencies.  Achieving 100% ozone destruction efficiency is reasonable if lower flow-rates are used.

QUESTION: Can the ozone destruct unit handle vacuum or pressure?

ANSWER:

Yes. Standard CDU-Series units are designed for slight vacuum (-5 PSI) or low-pressure (+5 PSI)  applications (typical of ozone off-gas systems).
For pressurized systems, consult Oxidation Technologies for pressure-rated housings and fittings.

QUESTION: How do I know when the catalyst needs replacement?

ANSWER:

Monitor the outlet ozone concentration using an ozone analyzer. If outlet ozone rises above trace levels (typically >0.1 ppm), the catalyst is no longer fully active and should be replaced.

QUESTION: Can I regenerate Carulite-200 indefinitely?

ANSWER:

Baking can dry and partially reactivate Carulite-200, but repeated cycles reduce effectiveness due to the absorption of dust and other contaminants that are not eliminated with temperature alone. It is not indefinitely regenerable. Regular replacement ensures consistent performance.

QUESTION: Do ozone destruct units require maintenance other than catalyst replacement?

ANSWER:

Routine maintenance is minimal:

• Inspect for dust buildup or condensation.

• Verify heater operation (wet gas models).

• Replace catalyst annually or as needed.

• Confirm outlet ozone levels periodically with a monitor.

• Gaskets can be replaced if they are damaged or cracked
• Screens can be replaced if they become damaged

QUESTION: What happens if ozone is vented without destruction?

ANSWER:

Uncontrolled release of ozone can be hazardous. Ozone is a powerful oxidizer and respiratory irritant.
Ozone destruct units ensure worker safety, regulatory compliance, and environmental protection by converting ozone to oxygen before venting.
