True Catalytic Ozone Scrubber will safely catalyze ozone to oxygen reliably with no consumables. Built-in fans flow 250 CFM of air through this device and destroy 90% of the ozone that passes through the catalyst material.

Applications:

- Ozone pack-out rooms

- Disinfection rooms

- Ozone chambers

- Any process where high ambient ozone levels need to be removed safely from the air quickly

Features:

- 250 CFM airflow rate from internal fans

- Catalytic material is used for long-life

- >90% ozone destruction efficiency at high ozone levels

- The catalyst material is replaceable

- Magnetic levitation fans are used for longevity

- No steel ball bearings or other oxidizable metal parts are used

- Destruct catalyst is at the inlet, electrical components and fans are exposed to lower levels of azone only.

- Fans operate on 24 VDC for safety

- External UL listed 24 VDC power supply provided to power from 120 or 220 VAC power.

- Handles provided for easy transport or carrying

- Plastic feet mounted to the bottom provide firm footing on the floor or bench.

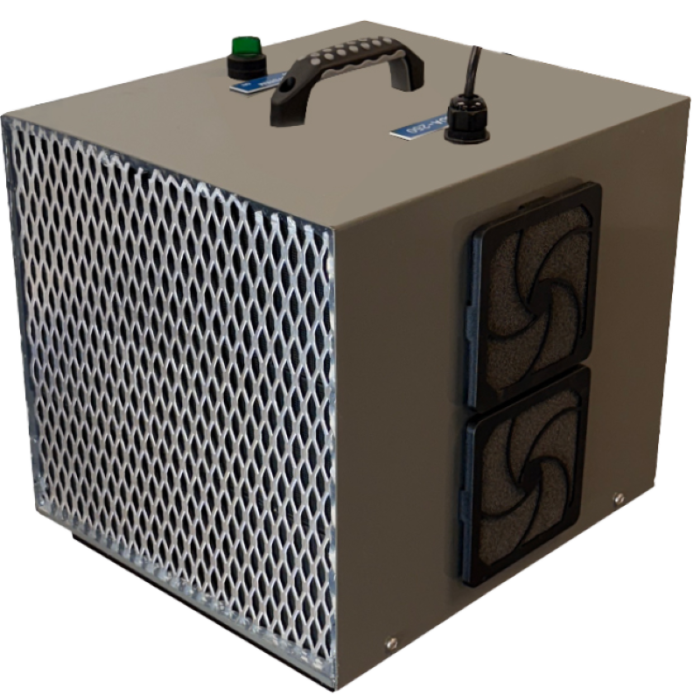

Air flows into the large screened ends on the CDA-250 and exits the fan holes on the sides of the CDA-250.  Catalyst material is placed at the air entry point of the CDA-250, with the fans at the outlet.  This ensures ozone levels in the air are low when passing over the fans and electrical connections inside the CDA-250.  Magnetic levitation fans are used for air-flow this ensures a long fan life and eliminates any steel ball bearings from the fans that could fail due to oxidation over time.

The CDA-250 uses 24 VDC fans for safety.  An external 120/220 VAC to 24 VDC power supply that is UL listed is provided with the CDA-250 to power from either a 120 or 220 VAC power source.

Downloads:

CDA Series Specification Sheet
