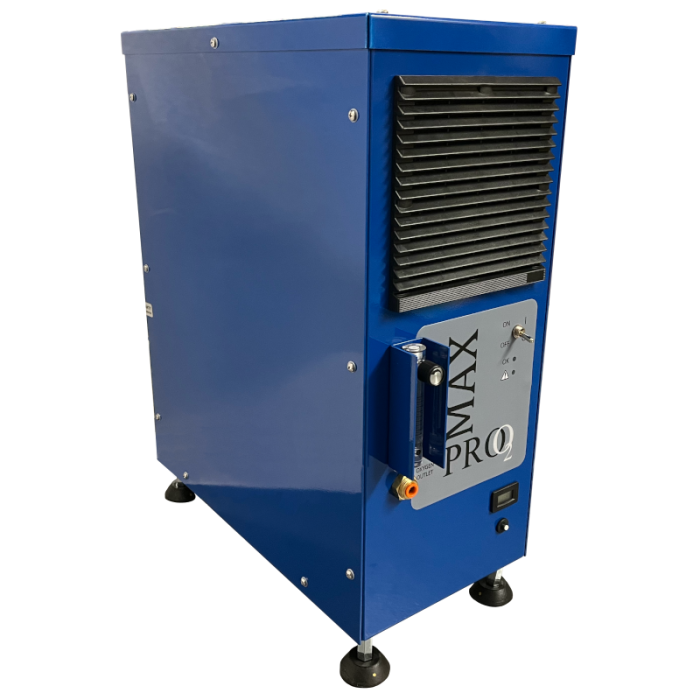

Subzero Max-5 is a water-cooled variant of the ProO2 Max-5 Series! The addition of water cooling technology to your ProO2 Max drastically reduces the temperature of and moisture in the product gas, therefore increasing the life of your machine. Produced in a durable aluminum cabinet to accommodate the components and machinery of the concentrator, while not hindering mobility or convenience of the overall unit. This device produces high-concentration oxygen by filtering room air and using pressure swing adsorption (PSA) to separate nitrogen. Air is drawn in, compressed, and passed through molecular sieve beds that trap nitrogen, allowing oxygen to pass through. While one bed generates oxygen, the other regenerates. The enriched oxygen then flows through a regulator, filter, and outlet for use.

Features:

- Water cooled

- Self-Contained

- Lighweight Aluminum Enclosure

- Advanced Engineering

- Low O2 purity alert

Product Characteristics:

Typical Applications:

Manufacturing:

- Glass Work/Blowing

- Brazing/Sodering/Jewelry

- Thermal/Chemical Oxidation

Environmental:

- Ozone (Generator) Feed Gas

- Waste/Water Treatment

- Environmental Remediation

Additional:

- Fish Farming

- Aquaponics

- Hydroponics

What is Pressure Swing Adsorption (PSA):

Clean, dry compressed air is fed into the first molecular sieve bed.  Nitrogen is adsorbed, while oxygen is allowed to flow through.  When the sieve in the first bed becomes full of nitrogen, the airflow is then directed into the second bed.  As the second bed separates the oxygen from the nitrogen, the first bed vents its nitrogen into the atmosphere.  Compressed air is once again fed into the first bed, and the process is repeated continuously.  A constant flow of oxygen is reliably produced.

More information on How Oxygen concentrators Work available HERE

Downloads:

Max-Series Brochure

User Guide
