MAX-5

10.5 SCFH oxygen production at 7 PSI.

Note: This unit comes with a standard electrical power of 120 VAC, 60 Hz standard. This will automatically be used if not stated otherwise in the eletrical power options below.

SKU
Max-5

Customizable Options:

  $1,840.00

Description / MAX-5

The MAX Series Oxygen Generators are perfect for industrial and commercial applications and delivers 90% purified O2.  Built in a lightweight enclosure and designed with a built-in moisture seperator to remove any water vapor before it enters the sieve beds.  This allows for increased O2 purity, and also maximizes the life of the sieve beds.  The compressor sit on 2 fans that help keep the operating temperature inside the box low.  The sides of the enclosure are removable to allow for easy serving when needed.  The unit has replaceable cabinet filters which protect the parts from environmental debris entering the unit.  Replacement compressor inlet filter also acts a secondary screen against particles from entering the compressor.  The Max Series comes equipped with a O2 sensors that if purity drops below 85% the board will alarm to alert of this drop in oxygen purity.



Features:

- Self-Contained

- Lighweight Aluminum Enclosure

- Advanced Engineering

- Low O2 purity alert



Product Characteristics:

Performance Data:

Product Flow

Oxygen Delivery Pressure



10.5 SCFH

7.5 PSI

Product Concentration Up to 95%

Dimensions (WxDxH)

 22.6 x 10.5 x 26.8 inches (57.4 x 26.7 x 68.1 cm)

Weight

62 lbs (28.13 kg)

Ambient Operating Conditions

Locate the oxygen concentrator system in a well-ventilated area that is protected from weather elements.

Temps should remain between 40°F (4°C) and 112°F (44°C)

Note - if the environment gets above 95 deg F and standing water is present on nearby surfaces or floor, provision must be made to remove excess moisture from the air.

Connection

The MAX-5 oxygen concentrator comes with a 1/4" barb outlet connection

Tubing

There is a 3/8" push-in connector on the unit for 3/8" OD tubing, however it also comes with an adapter so that 1/4" ID tubing can be used.



Typical Applications:

Manufacturing:

- Glass Work/Blowing

- Brazing/Sodering/Jewelry

- Thermal/Chemical Oxidation

Environmental:

- Ozone (Generator) Feed Gas

- Waste/Water Treatment

- Environmental Remediation

Additional:

- Fish Farming

- Aquaponics

- Hydroponics





What is Pressure Swing Adsorption (PSA):

Clean, dry compressed air is fed into the first molecular sieve bed.  Nitrogen is adsorbed, while oxygen is allowed to flow through.  When the sieve in the first bed becomes full of nitrogen, the airflow is then directed into the second bed.  As the second bed separates the oxygen from the nitrogen, the first bed vents its nitrogen into the atmosphere.  Compressed air is once again fed into the first bed, and the process is repeated continuously.  A constant flow of oxygen is reliably produced.

More information on How Oxygen concentrators Work available HERE



Downloads:

Max-Series Brochure

User Guide

More Information

Manufacturer Misc
Listing Description

10.5 SCFH @ 7 PSI

Internal Compressor Yes
O2 Delivery PSI 9 PSI
Nominal Gas Flow Rate 10.5 SCFH
Operating Pressure 7 PSI
Max Pressure 7 PSI
Dimensions (LxWxH) 22.6 x 10.5 x 26.8 inches
Operational RH Range 0-85%
Operational Temperature Range 35-95 deg F
Power Requirements 120V/60 Hz or 230V/50Hz
Lead Time In Stock
Warranty 1 Year
Country of Origin USA
Oxygen Production 12 SCFH
Description Turnkey unit with built-in compressor

We found other products you might like!

Navigating through the elements of the carousel is possible using the tab key. You can skip the carousel or go straight to carousel navigation using the skip links.
Onyx
$1,797.00
OG-15 Oxygen Concentrator
$5,482.00

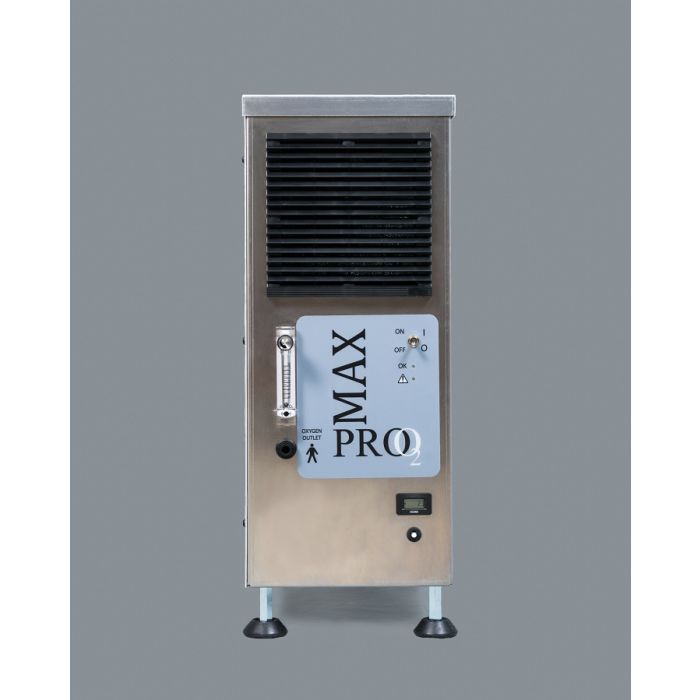

Max Pro O2 Generator Series
