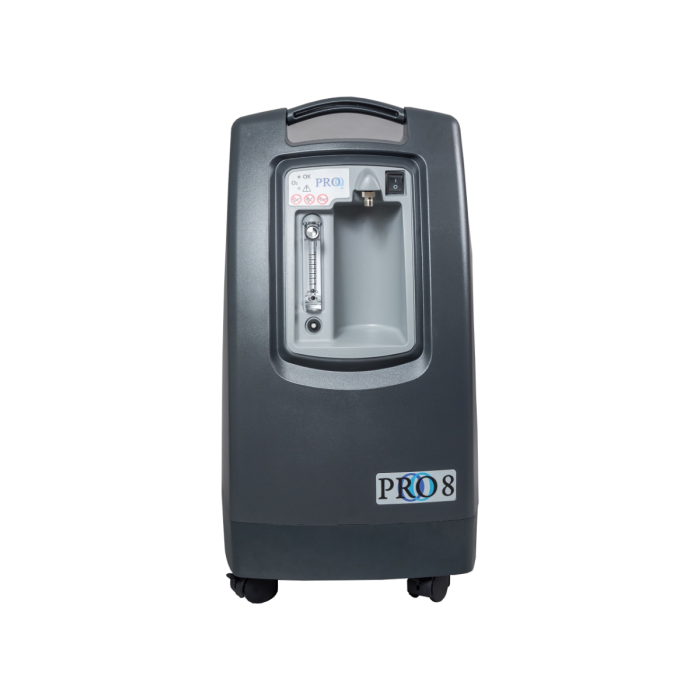

Pro-8

4.2-16.88 SCFH (2-8 LPM) oxygen production @ 15 PSI

The Pro-8 arrives with 120V power.

$1,520.00
1 In Stock

Conceived to provide high quality oxygen generation by integrating proven design concepts with the insight gained from over 30 years of producing superior oxygen concentrators, the Pro Series of Oxygen Concentrators aims to exceed the needs and demands of the Non-Medical realm of oxygen usage. A reimagined, compact, and highly mobile machine, this family demonstrates that it can stand and deliver a high-quality concentration of Oxygen in an affordable yet sleek layout. As opposed to the Pro-5 Oxygen Concentrator, the Pro-8 has an hour meter that can be found directly behind the black foam mesh filter. With the Pro-8 being a larger unit, changing the location of the hour meter ensures a significantly lowered risk of cracks developing.



Features:

     -4 recessed caster-style wheels, handle at the top of cabinet for easy movement between locations.

     -Lighweight/Tough Thermoplastic

     -Designed for Easy, Low-Maintenance Service

     -Safety Alarm



Product Characteristics:

Performance Data:

Product Flow

Oxygen Delivery Pressure

4.2 - 16.88 SCFH (2.0-8.0 LPM)

15.0 PSI

Product Concentration 90% (+ 5.6/-3.0) purity

Dimensions (WxDxH)

 15.5 x 15.6 x 27.8 inches (39.4 x 39.6 x 70.6 cm)

Weight

53.5 (lbs.)/24.3 (kg)

Physical Connections

Product Gas Outlet

Male DISS fitting



Ambient Operating Conditions

Locate the oxygen concentrator system in a well-ventilated area that is protected from weather elements.

Temps should remain between 41°F (5°C) and 104°F (40°C)

(Outside of these temperatures still allows for purified Oxygen production, but will lower the shelf life and quality of production.)

Control Power Requirements (Single Phase)





Typical Applications:

Manufacturing

      -Glass Work/Blowing

      -Brazing/Sodering/Jewelry

      -Thermal/Chemical Oxidation

Environmental

      -Ozone (Generator) Feed Gas

      -Waste/Water Treatment

      -Environmental Remediation

Additional

      -Fish Farming

      -Aquaponics

      -Hydroponics





Downloads:

Pro-Series Brochure

Pro-Series Manual

More Information
Manufacturer Misc
Quickbooks Stock Level 1.000000
Call For Price Yes
Listing Description

4.2 - 16.88 SCFH @ 15 PSI

Nominal Gas Flow Rate 2.0-8.0 LPM
Operating Pressure 15 PSI
Max Pressure 15 PSI
Operational RH Range NA
Operational Temperature Range NA
Power Requirements 500W @ 155V/60H or 600W @ 230V/50H
Lead Time 2 weeks
Warranty 1 Year
Country of Origin USA
Description Turnkey unit with built-in compressor
