5000BF Ozone Generator

7 g/hr of ozone from oxygen, or 1.8 g/hr of ozone from dry air.  Air cooled ozone generator with adjustable ozone output dial.  Great ozone generator for laboratory applications.

$850.00

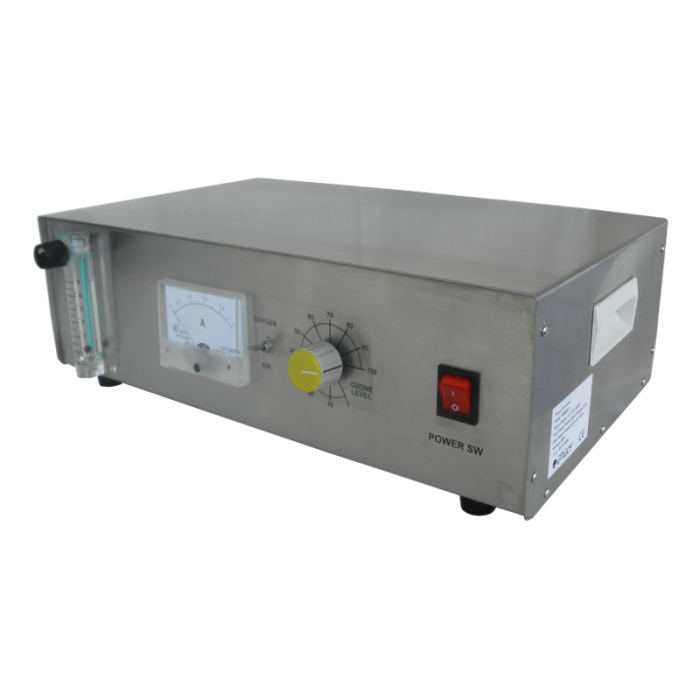

 Benchmount ozone generator is great for lab or small industrial applications.  High quality brushed aluminum enclosure gives a professional appearance and a durable exterior.  Includes large, easy to see oxygen/ozone gas flow meter to indicate oxygen flow through ozone generator.  Also a panel mount amp meter shows power draw from the ozone generator to ensure ozone generator is operating properly and provide positive feedback for actual electrical discharge and ozone production.

Ozone Generation from Corona Discharge

Adjustable ozone output from 0-100% panel will adjust electrical discharge to ozone generator cell.  With the included power meter (amp meter) a great indication as to what your power setting is is available.

Air cooled ozone generator will require no cooling water and is completely self contained.  Ensure proper ventilation on the rear of the machine is available when operating.

The 5000BF Ozone Generator is backed by a full 1-year warranty.  This generator will ship from, and be serviced by Oxidation Technologies based here in the USA.





Features:

  • Great value in ozone generators
  • Air cooled ozone generator - no cooling water required
  • Adjustable ozone output 0-100%
  • Integrated oxygen/ozone flow meter
  • Integrated amp meter to show electrical discharge to cell
  • Benchmount with durable rubber isolation feet
  • High quality aluminum enclosoure
  • Compact size and easy to use
  • Corona discharge ozone generator cell

Amp Meter:

The 5000BF Ozone Generator includes an Amp meter on the front panel to indicate power draw to the ozone generator cell.  This is a great way of ensuring that ozone generation and production is consistent.  When power changes it will indicate to the user that a parameter has changed.  This is a great visual method of ensuring reliable ozone production.



Oxygen/Air Selector Switch:

The 5000BF Ozone Generator includes an a selector switch to choose between dry air or oxygen feed-gas.  This actually alters the frequency that the power supply operates at to maximize ozone production on oxygen or dry air.  Ozone is produced efficiently from oxygen at frequencies above 2,000 Hz.  However, frequencies above 2,000 Hz will not produce ozone efficiently from air due to the ionization of the nitrogen in the air stream.  Therefore, altering operational frequency provides maximum efficiency of ozone generation from either dry air, or oxygen.



Specifications:

  • 7 g/hr ozone output from 3 LPM oxygen
  • 1.8 g/hr ozone output from 5 LPM dry air
  • 5 PSI pressure rating (can operate under light vacuum also)
  • Dimensions: 6-inch high x 12-inch wide x 17-inch depth
  • Weight: 8 lbs
  • Feed-gas: Dry air, or Oxygen



Ozone Production from Oxygen:

performance of 5000BF ozone generator

O3  Output
O2 Flow       O3 Concentration
3.85 g/hr 1.0 LPM 4.82 %
6.29 g/hr 2.0 LPM 3.94%
7.47 g/hr 3.0 LPM 3.12%
8.64 g/hr 4.0 LPM 2.70%
9.15 5.0 LPM 2.29%



 Click HERE to view our oxygen concentrators for ozone production



Ozone Production from Dry Air:

Ozone generator output chart on dry air

O3  Output
Air Flow     O3 Concentration
0.53 g/hr 1.0 LPM 0.66%
1.03 g/hr 2.0 LPM 0.64%
1.37 g/hr 3.0 LPM 0.57%
1.61 g/hr 4.0 LPM 0.50
1.81 g/hr 5.0 LPM 0.45





Ozone Generation:

Ozone generator uses a corona discharge ozone generating cell.  Cell is constructed of glass dielectric and stainless steel shell.  Voltage and frequency are elevated for efficient ozone production.  Operating frequency of ~2,000 hz from the power inverter and transformer.

Ozone generator cell will produce ozone from oxygen most efficiently, however it can also produce ozone from clean, dry air.  Cell can operate under vacuum or pressure.  Extremely versatile ozone generator cell.



Common Applications:

  • Drinking water
  • Washing fruits and vegetables at home
  • Lab Applications
  • Pilot testing
  • Ozonated olive oil
  • Aquarium or small aquaculture application
  • Odor Removal
  • Spa water treatment
  • Swimming pools



Downloads:

Enaly Series Brochure



More Information
Call For Price No
Ozone Output 7 g/hr from oxygen, 1.8 g/hr from dry air
Feed Gas O2 or Dry Air
Nominal Gas Flow Rate 3-5 LPM
Operating Pressure 3-5 PSI
Max Pressure 5 PSI
Manufacturer Enaly
Cooling Method Air Cooled
Corona Cell Aluminum , Glass, Stainless Steel
Gas Connections 1/4" barbed fittings
Dimensions Enclosure Dimensions: 6-inch height x 12-inch width x 17-inch depth
Generator Weight: 8 lb
Operational Temperature Range 35 - 95-deg F
Max O3 % Below 3%
Power Requirements 120 VAC or 220 VAC
Lead Time In Stock
Warranty 1 Year
Country of Origin China
