15 g/hr ozone from only 4 LPM Oxygen.

Ozone Concentrations up to 12% by weight.


The Nano Ozone Generator is the perfect ozone generator for applications where high concentrations of ozone are required.  Producing 15 g/hr of ozone from only 4 LPM oxygen the Nano is an efficient and compact ozone generator package.  Ozone concentrations up to 12% by weight are possible from this air-cooled ozone generator.  If you are looking for a lab ozone generator, or just want the maximum ozone solubility of ozone into water, this is a great ozone generator for your applications.

Bench mount ozone generator that is compact and efficient, the Nano is a great tool for use in any small ozone project where maximum ozone efficiency is required.  There is certainly no smaller, or less expensive option that will achieve these ozone concentrations!


  • Low oxygen requirements for ozone generation, very efficient
  • High-pressure cell produces ozone under pressures up to 100 PSI
  • Variable ozone output with onboard dial, or remote control options
  • Remote control safety shut-off
  • Low operating costs with low power requirements and oxygen requirements
  • Stainless steel enclosure
  • Optional bench mount or rack mount enclosures to best fit your application

Materials of Constructions:

  • Enclosure: Brushed Stainless Steel/Aluminum
  • High Precision Machined Ozone Generator Cell tested at up to 150 PSIG for leaks
  • O3/O2 Gas Tubing: PTFE/304 Stainless Steel/Brass

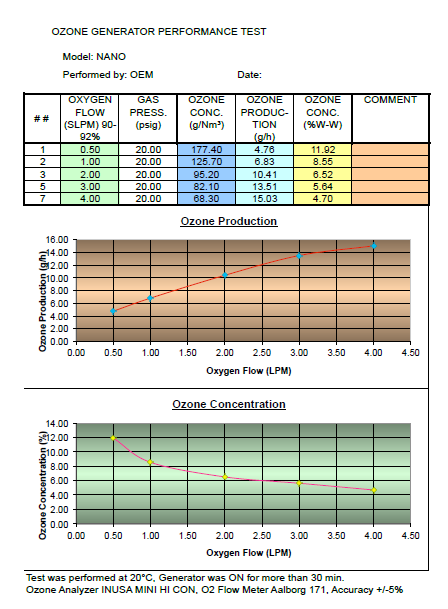

 Ozone Generator Performance Chart:

Nano Ozone Generator

4.7 g/hr @ 11.9% by weight from 0.5 LPM O2 flow

6.83 g/hr @ 8.55% by weight from 1.0 LPM O2 flow

10.41 g/hr @ 6.52% by weight from 2.0 LPM O2 flow

13.51 g/hr @ 5.64% by weight from 3.0 LPM O2 flow

15.03 g/hr @ 4.7% by weight from 4.0 LPM O2 flow


Common Applications:

  • Water Treatment
  • Groundwater Remediation
  • Bottled water
  • Aquaculture
  • Cooling Tower
  • Grain Treatment
  • Odor Removal
  • Wastewater Treatment
  • Pharmaceutical
  • Food Processing



ATL Series Brochure

More Information
Call For Price No
Feed Gas Oxygen
Nominal Gas Flow Rate 4 LPM oxygen flow to produce 15 g/hr ozone. Higher flows produce more ozone.
Operating Pressure 20 - 50 PSI nominal (higher pressure units available)
Max Pressure 50 PSI standard, up to 100 PSI optional
Manufacturer Absolute Ozone
Cooling Method Air Cooled
Corona Cell Aluminum , Ceramic Plate
Gas Connections 1/4" compression fittings
Dimensions (LxWxH) 14" x 5" x 5"
Operational Temperature Range 35 - 95-deg F
Max O3 % 10% +
Power Requirements 120 VAC 9-amp 50/60 Hz. (220 VAC 7-amp 50/60Hz power optional)
Lead Time Stock
Warranty 5 Year
Country of Origin Canada
Description Enclosure Dimensions: 5-inch height x 5-inch width x 14-inch depth Generator Weight: 5.8kg
Ozone Output

15 g/hr ozone from 4 LPM oxygen @ 4.7% by weight

Unit Features

- Great for odor removal, grain treatment, aquaculture and more

- Ozone output with onboard dial

- High pressure cell produces ozone under pressures up to 100 PSI

- Oxidation Technologies can be repair and uprade these in-house
