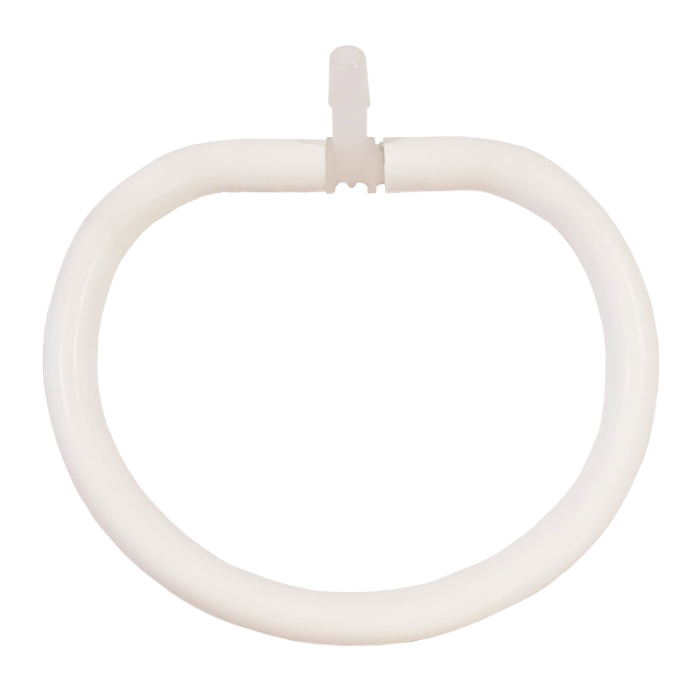

PTFE Material offers great flexibility allowing this diffuser to fit into a wide variety of containers or where you want ozone bubbled into a liquid.  This is a porous PTFE material that is flexible and bendable and made into a circle to easily fit into a glass.

Bubbles that are produced from this device are 20 microns.  This tube can handle flows of 10 LPM for every 12" of tubing and pressures up to 20 PSI.

Specifications:

• Outside Diameter (OD) =  3/8"
• Indside Diameter (ID) = 5/16"
• End connection for customer tubing = 1/4" barb
• Bubble size = 20 micron
• Max operating pressure = 20 PSI
• Max gas flow = 10 LPM per 12" of tubing

Features:

• Circle shape to fit in container easily
• PTFE will not be affected by iron, calcium or other minerals that will plug stainless steel diffusers
• Custom lengths available
• Easy to clean (dishwasher safe)
• Great for ozonated olive oil or any application where purity is important

We offer the PTFE diffuser circles in 3 standard lengths.  Custom lengths are available for $20 per foot. Contact us with your custom length request.

Standard lengths offered:

• 8"
• 12"
• 24"
