UV-106M OEM Ozone Analyzer

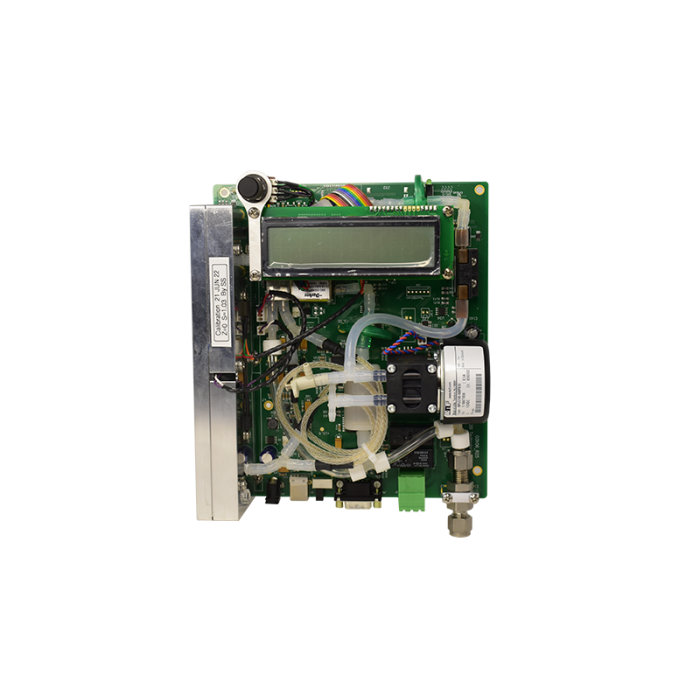

Medium range precision UV Ozone Analyzer. The OEM configuration is designed as an "Ozone Analyzer on a board" in which nearly all of the components are mounted directly to the printed circuit board. Range 0-1,000 ppm, with resolution of 0.01 ppm resolution allows for medium range ozone measurement up to 1,000 ppm with great accuracy in a compact, easy to use package.

$5,040.00
4 weeks

The UV-106-M is a low range ozone analyzer featuring ozone measurements up to 1,000 ppm with low range measurement of ozone down to 0.01 ppm.The OEM configuration is designed as an "Ozone Analyzer on a board" in which nearly all of the components are mounted directly to the printed circuit board.

Bench mount ozone analyzer is compact and easy to use.  The UV-106-M can be purchased in either the bench mount or NEMA enclosure.

Integrated sample pump will pull a sample of ozone from your process or location into the analyzer and measure ozone in that gas stream.  A UV lamp and receptor are used to determine the quantity of ozone in gas by determining the rate of ozone absorption by the UV lamp.  This method of ozone detection will offer accurate detection of ozone at levels up to 1,000 without compromising low range detection below 1 ppm, while eliminating most cross-sensitivity from other gasses.

If you're looking to temporarily monitor ozone, we have a rental option HERE

Features:

- Measurement based on UV absorption

- OEM Configuration

- Low power consumption; can be battery operated

- Internal data logger with real time clock

- On-board microprocessor with interactive menus includes data averaging options of 10 s, 1 m, 5 m and 1 hr

- USB and RS-232 output of time/date, O3 concentration, internal temperature and pressure

- Analog output (0-2.5 V and 4-20 mA) of ozone concentration in user selected units

- Two level relay for control purposes (e.g., control of ozone source or turn warning light on and off)

- Long-life pump (15,000 hr)



Standard Enclosure:

The UV-106 comes standard in a bench mount configuration making it simple to set up for many applications.



For applications where a wall mount analyzer, or rugged enclosure for harsh environments are a better fit, the NEMA enclosure can be used for the UV-106-M Ozone Analyzer.





Filters:

We highly recommend replacing the filter frequently to prevent contamination of the flow path by particulate matter.



Filter Housing
The UV-106's Series have an internal scrubber that should be replaced frequently to prevent contamination of the flow path by particulate matter.


Downloads:

UV-106-M Manual
More Information
Manufacturer 2B Technologies
Call For Price No
Resolution 0.01 ppm
Sampling Method Fan
Field Replaceable Battery Yes
Warranty 1 Year
Range 0-1,000 ppm
Unit Features

- OEM Configuration

- Includes datalogging with software

- Low power consumption; can be battery operated

- Two level relay for control purposes

- Long-life pump (15,000 hr)

Sensor Range 0-1,000 ppm
