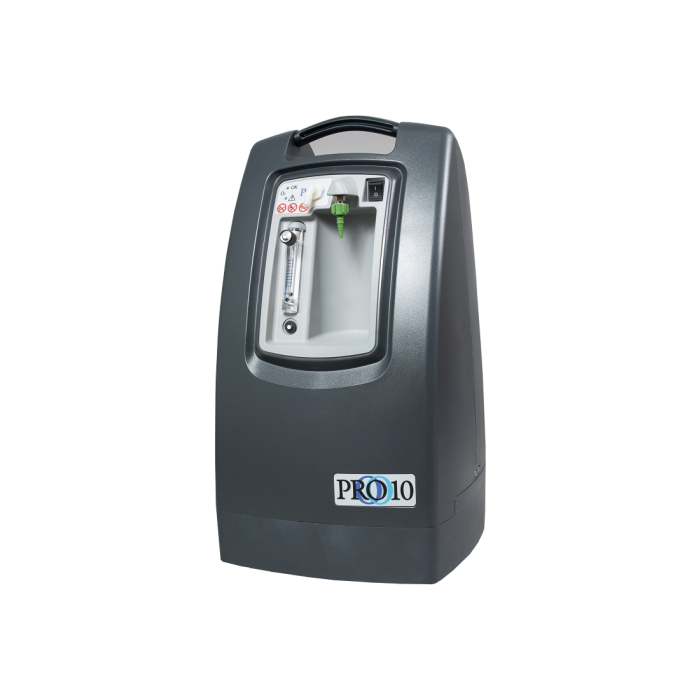

Pro-10
4.2 - 21 SCFH (2-10 LPM) oxygen production @ 18 PSI
The standard Pro-10 arrives with 120V power.
Lead time for orders over 1 units: 3 weeks
- SKU
- Pro-10
Related Products
Description / Pro-10
Conceived to provide high quality oxygen generation by integrating proven design concepts with the insight gained from over 30 years of producing superior oxygen concentrators, the Pro Series of Oxygen Concentrators aims to exceed the needs and demands of the Non-Medical realm of oxygen usage. A reimagined, compact, and highly mobile machine, this family demonstrates that it can stand and deliver a high-quality concentration of Oxygen in an affordable yet sleek layout. As opposed to the Pro-5 Oxygen Concentrator, the Pro-10 has an hour meter that can be found directly behind the black foam mesh filter. With the Pro-10 being a larger unit, changing the location of the hour meter ensures a significantly lowered risk of cracks developing.
Features:
-4 recessed caster-style wheels, handle at the top of cabinet for easy movement between locations.
-Lighweight/Tough Thermoplastic
-Designed for Easy, Low-Maintenance Service
-Safety Alarm
Do you want to use an oxygen concentrator to supply your new hard shell hyperbaric chamber, but can't seem to keep the flow up when the pressure increases? The standard 10 LPM oxygen concentrator may be rated to produce up to 20 psi, but when used to supply oxygen to hard shell hyperbaric chambers, the flow dwindles and will stop before getting there. On top of the pressure within the chamber, the concentrator needs to overcome check valves as well, and there just is not enough pressure available. A properly sized boost compressor can solve this problem and allow any oxygen concentrators you have available to provide the pressure you need. This boost compressor is a good option if you have a number of concentrators that are not doing the job of getting oxygen into your chamber. The O2 Boost comes with DISS fittings that are used with supplying hyperbaric chambers.
Product Characteristics:
|
Performance Data: Product Flow Oxygen Delivery Pressure |
2.0-10.0 Liters per Minute (LPM) 18.0 PSI |
| Product Concentration | Up to 95% |
|
Dimensions (WxDxH) |
15.5 x 15.6 x 27.8 inches (39.4 x 39.6 x 70.6 cm) |
|
Weight |
54.5 (lbs.)/24.7 (kg) |
|
Physical Connections Product Gas Outlet |
|
| Ambient Operating Conditions |
Locate the oxygen concentrator system in a well-ventilated area that is protected from weather elements. Temps should remain between 41°F (5°C) and 104°F (40°C) (Outside of these temperatures still allows for purified Oxygen production, but will lower the shelf life and quality of production.) Note - if the environment gets above 95 deg F and standing water is present on nearby surfaces or floor, provision must be made to remove excess moisture from the air. |
| Control Power Requirements (Single Phase) |
|
Typical Applications:
Manufacturing
-Glass Work/Blowing
-Brazing/Sodering/Jewelry
-Thermal/Chemical Oxidation
Environmental
-Ozone (Generator) Feed Gas
-Waste/Water Treatment
-Environmental Remediation
Additional
-Fish Farming
-Aquaponics
-Hydroponics
Downloads:
More Information
| Manufacturer | Misc |
|---|---|
| Quickbooks Stock Level | 1.000000 |
| Quickbooks Stock Date Expected | 2025-02-14 00:00:00 |
| Listing Description | 4.2-21 SCFH @ 18 PSI |
| Nominal Gas Flow Rate | 2.0-10.0 LPM |
| Operating Pressure | 18 PSI |
| Max Pressure | 18 PSI |
| Operational RH Range | 0-85% |
| Operational Temperature Range | 35-95 deg F |
| Power Requirements | 500W @ 155V/60H or 600W @ 230V/50H |
| Lead Time | 2 weeks |
| Warranty | 1 Year |
| Country of Origin | USA |
| Description | Turnkey unit with built-in compressor |
