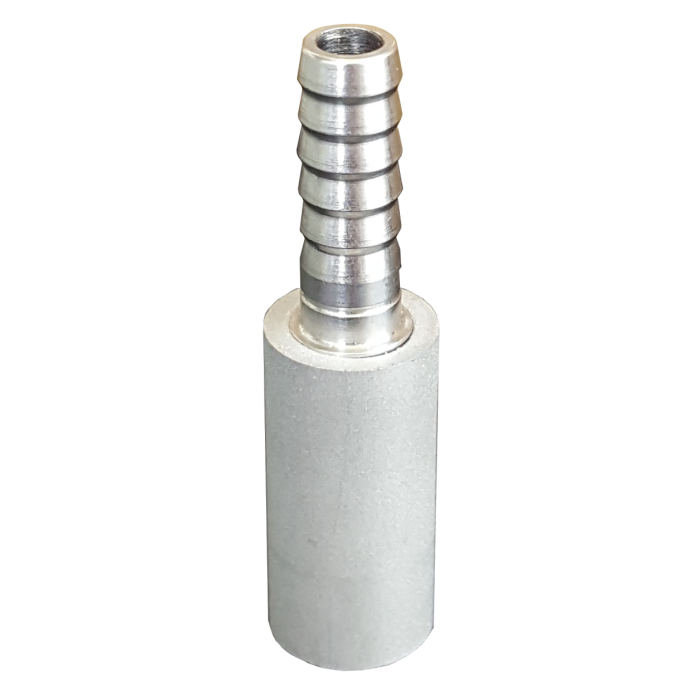

SS1 Diffuser

Sintered Stainless Steel Ozone Diffuser.  Bubble ozone into water at flow rates up to 10 LPM.  Fine pore bubble diffuser rated at 5 micron.  Diffuser area is 1" long x 1/2" in diameter.

$19.00
  • Buy 5 for $15.00 each and save 21%
  • Buy 10 for $12.50 each and save 34%

Sintered Stainless Steel Diffuser is an excellent choice for transferring ozone gas into water via bubble diffusion.  5-micron rating creates tiny bubbles across the entire length of the diffuser.  Stainless Steel construction is both safe to use, and provides excellent durability and longevity.

1/4" Barbed connection provides solid seal when used with smaller 1/4" ID Teflon Tubing.  Diffuser size is 1" long x 1/2" diameter.

Our testing has shown that small bubbles are created at low and high flow-rates with the SS1.  There is no compromise on excellent mass transfer when using the SS1 at any flow-rate.


Common applications:

  • Water treatment
  • Ozonated olive oil
  • Ozone gas diffusion

Watch Video below to see the SS1 diffuser in action.  Flow rate is increased slowly from 1 LPM to 10 LPM to show how the bubble size remains very small throughout the flow range.  Great bubble diffuser for a wide variety of applications without the concern of contaminating your water with ceramic or other materials that will remain in your water.

More Information
Manufacturer Oxidation Technologies
Call For Price No
Nominal Gas Flow Rate 0 - 10 LPM
Operating Pressure 1 - 125 PSI
Max Pressure 125 PSI
Gas Connections 1/4" barbed connection
Dimensions 1" long x 1/2" diameter
Operational Temperature Range 0 - 100 deg C
Power Requirements none
Lead Time in stock
Warranty 1 Year
Country of Origin USA
