Description / Single Head OC-P1

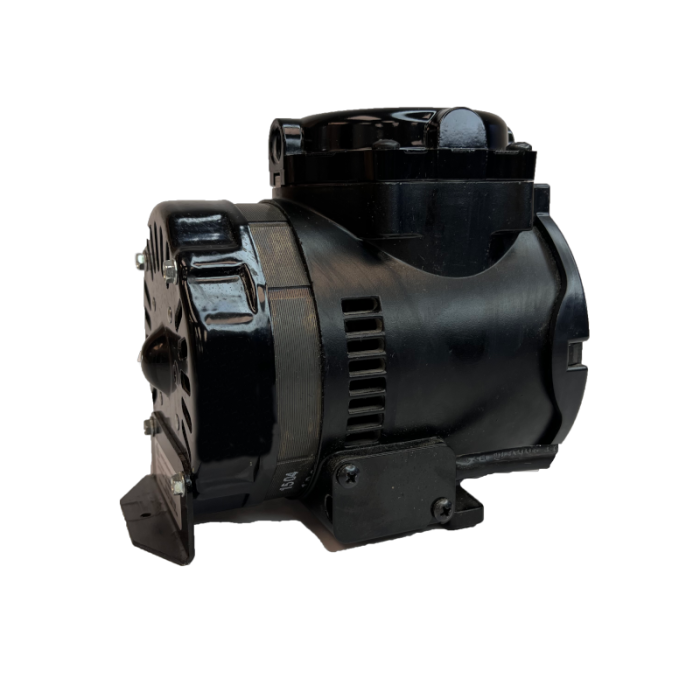

The OC-P1 compressor is a low-cost option for pumping ozone gas or providing higher pressures of ozone gas for your application.
The OC-P1 is a piston-driven compressor using a stainless steel head PTFE seals and Anodized aluminum parts.
This compressor is ideal for applications where ozone concentrations are not high, ozone gas streams are low and pressures above 30 PSI are not required.
Features:
- Thin-walled, Hard Coated Anodized Cylinder
- Oil-less, Non-lube PTFE Piston Seal
- Permanently Lubricated Ball Bearings
- UL Recognized Motor & Thermal Protector
- Balanced Eccentric/Connecting Rod Assembly
- Epoxy E-Coated Wetted Components
- Stainless Steel Valves, Retainers and Screws
- Die Cast Aluminum Components
- Efficient 4.4” Diameter Motor
- Oversized Front Mounted 9-Blade Fan
- Arc Formed Valves (Optional)
Compressor Limitations:
This compressor is a lower-cost option than our diaphragm compressors. This compressors uses a piston rather than a diaphragm. The piston action with a PTFE sealing ring will wear and allow ozone to leak past much quicker than a diaphragm compressor. Therefore, consider the following limitations and suggestions prior to implementing in to your application.
- Limit output pressure to 30 PSI continuous to prevent leaking ozone gas from the piston
- Limit ozone concentrations to below 5% by weight if used continuously, or 10% by weight intermittent
- Dry ozone gas with a dew point of -40 deg F or lower should be used
Comparison Chart:
| Model Number | OC-P1 |
| Head Configuration | Pressure/Vacuum |
| Free Air Flow | 0.37 SCFM |
| Max Continuous Pressure | 70 PSIG |
| Max Intermittent Pressure | 100 PSIG |
| Max Restart Pressure | 100 PSIG |
| Max Ambient Air Temp | 104° F |
| Min Ambient Air Temp | 50° F |
| Motor Voltage/Frequency | 115V/60Hz |
| Motor Type | Shaded Pole |
| Current at Rated Load | 3.8 Amps |
| Power at Rated Load | 190 Watts |
| Starting Current | 5.2 Amps |
| Min Full Load Speed | 1610 RPM |
| Thermal Protector | Yes |
| Net Weight | 6.6 lb |
| Product | Features | Price |
|---|---|---|

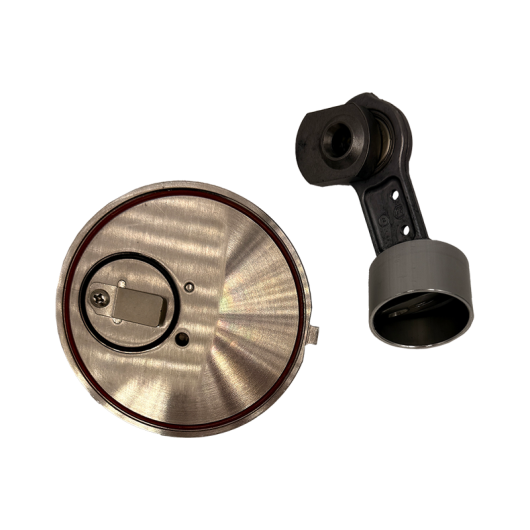

 OC-P1 - Major Rebuild Kit
|
Major service kit for LP12 SS Includes the rod & ecc assy with SS cup retainer along with the SS valve plate and all orings and valves. |
$270.00
|

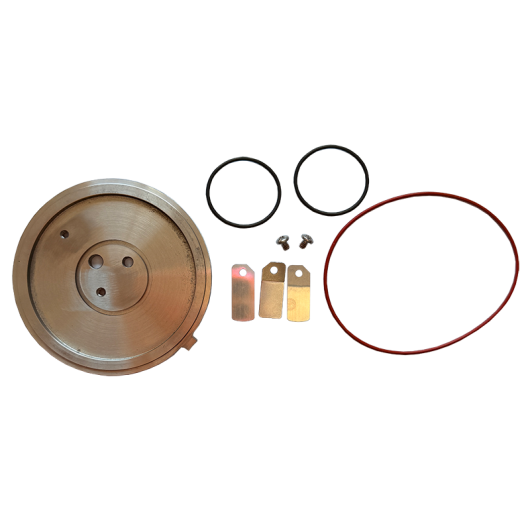

 OC-P1 - Minor Rebuild Kit
|
Minor Service Kit for LP12 SS Includes stainless steel valve plate, o-rings, and valves. (Rod/eccentric assembly not included.) |
$179.50
|
OC-P1 - Major Rebuild Kit
Features
OC-P1 - Minor Rebuild Kit
Features
OC-P1 Drawing:
OC-P1 Chart:
Additional Information:
OC-P1 Minor Rebuild Kit Instructions
OC-P1 Major Rebuild Kit Instructions
More Information
| Manufacturer | Oxidation Technologies |
|---|---|
| Material of construction | Stainless Steel |
| Flow Rates | 8.4 LPM @ 25 PSI 6 LPM @ 50 PSI |
| Max Pressure | 70 PSIG |
| Gas Connections | 2X 1/4-18 NTP |
| Dimensions (LxWxH) | 5X6X6 |
| Operational Temperature Range | 104 F |
| Warranty | 1 Year |
