Onyx Ultra
21 SCFH oxygen production at 20 PSI is produced by the Onyx Ultra oxygen concentrator module.
- SKU
- ONyx Ultra
Related Products
Description / Onyx Ultra
Specifically designed for reliability, energy efficiency, and ease-of-use, there are thousands of Onyx PSA Oxygen Generators currently in use throughout the world. The Onyx’s reliability, low noise level, and ability to deliver up to 95% oxygen concentration make it a perfect fit for many applications.
Features:
-Self-Contained
-Transportable
-Advanced Engineering
-Easy to Install and Maintain
-Low Operating Cost
Replacement Parts:
| Product | Listing Description | Price |
|---|---|---|
 10 LPM Flowmeter
|
10 LPM Flowmeter for Onyx Ultra AirSep Part Number: FM056-1 |
$14.00
|
 8 amp Circuit Breaker
|
8 amp Circuit Breaker for the Onyx, Onyx Plus, Onyx Ultra, Topaz and Topaz Plus AirSep Part Number: CR001-1 |
$10.00
|
 Aluminum Case Capacitor for Onyx Ultra and Topaz Ultra
|
Aluminum Case Capacitor for Onyx Ultra and Topaz Ultra AirSep Part Number: CC012-8 |
$11.00
|
 Onyx Ultra Sieve Beds
|
Replacement set of 10L Onyx Ultra beds for the Onyx Ultra Oxygen Generator. AirSep Part Number: BE186-2S |
$307.00
|
 Rebuild Compressor Kit for the Onyx or Topaz
|
Replacement Trigon compressor kit for the Topaz Oxygen Generator. AirSep Part Number: CO012-11 |
$62.00
|
 Solenoid Valve Rebuild Kit
|
Rebuild Solenoid Valve Kit for the Onyx and Topaz AirSep Part Number: VA034-1 |
$20.00
|

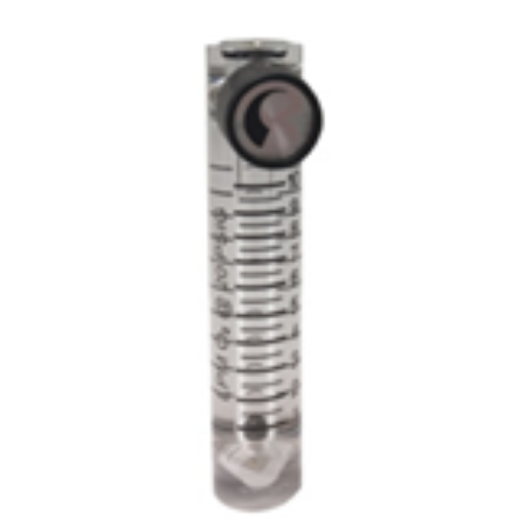

10 LPM Flowmeter
Listing Description
10 LPM Flowmeter for Onyx Ultra
AirSep Part Number: FM056-1
8 amp Circuit Breaker
Listing Description
8 amp Circuit Breaker for the Onyx, Onyx Plus, Onyx Ultra, Topaz and Topaz Plus
AirSep Part Number: CR001-1

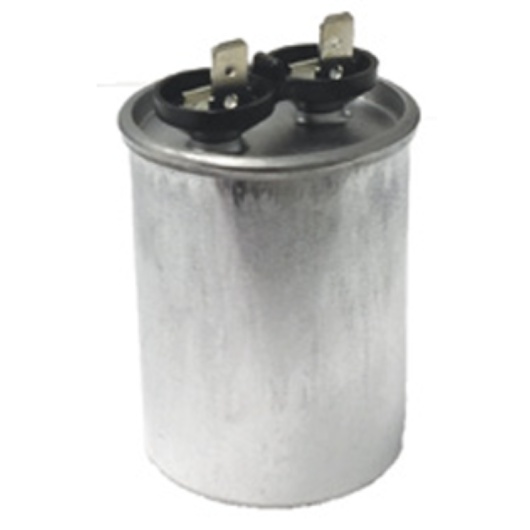

Aluminum Case Capacitor for Onyx Ultra and Topaz Ultra
Listing Description
Aluminum Case Capacitor for Onyx Ultra and Topaz Ultra
AirSep Part Number: CC012-8

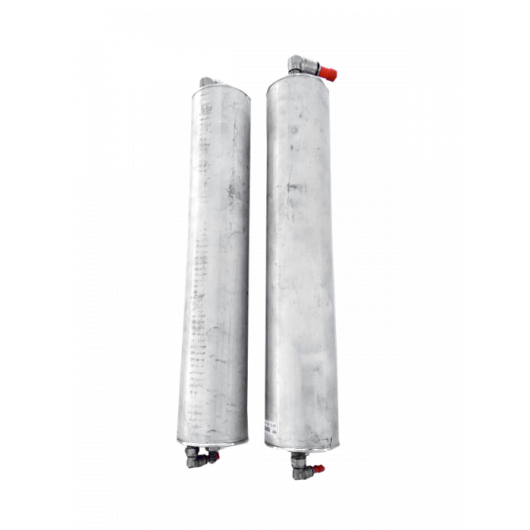

Onyx Ultra Sieve Beds
Listing Description
Replacement set of 10L Onyx Ultra beds for the Onyx Ultra Oxygen Generator.
AirSep Part Number: BE186-2S
Rebuild Compressor Kit for the Onyx or Topaz
Listing Description
Replacement Trigon compressor kit for the Topaz Oxygen Generator.
AirSep Part Number: CO012-11
Solenoid Valve Rebuild Kit
Listing Description
Rebuild Solenoid Valve Kit for the Onyx and Topaz
AirSep Part Number: VA034-1
Oxygen Pressure Boost Option:
Do you want to use an oxygen concentrator to supply your new hard shell hyperbaric chamber, but can't seem to keep the flow up when the pressure increases? The standard 10 LPM oxygen concentrator may be rated to produce up to 20 psi, but when used to supply oxygen to hard shell hyperbaric chambers, the flow dwindles and will stop before getting there. On top of the pressure within the chamber, the concentrator needs to overcome check valves as well, and there just is not enough pressure available. A properly sized boost compressor can solve this problem and allow any oxygen concentrators you have available to provide the pressure you need. This boost compressor is a good option if you have a number of concentrators that are not doing the job of getting oxygen into your chamber. The O2 Boost comes with DISS fittings that are used with supplying hyperbaric chambers.
Product Characteristics:
|
Performance Data: Product Flow Oxygen Delivery Pressure |
21 SCFH 20 PSI (138 kPa) |
| Product Concentration | Up to 95% |
| Product Dew Point | -100°F (-73°C) |
|
Dimensions (WxDxH) |
16 x 15 x 29 inches (40 x 37 x 72 cm) |
|
Weight |
56 lbs (25 kg) (Add 1 lb for 220 V Unit) |
|
Physical Connections Product Gas Outlet |
1/4" FNPT JIC-8 |
| Ambient Operating Conditions |
Locate the oxygen concentrator system in a well-ventilated area that is protected from weather elements. Temps should remain between 40°F (4°C) and 112°F (44°C) |
| Control Power Requirements (Single Phase) |
120 V ~ ± 10%, 60 Hz, 6.0 A 220 V ~ ± 10%, 50 Hz, 3.0 A |
Typical Applications:
Manufacturing
-Glass Work/Blowing
-Brazing/Sodering/Jewelry
Environmental
-Ozone (Generator) Feed Gas
-Environmental Remediation
Additional
-Fish Farming
-Laboratory Experiments
-Aquaponics
-Hydroponics
Downloads:
More Information
| Manufacturer | Air Sep |
|---|---|
| Listing Description | 21 SCFH @ 20 PSI |
| Internal Compressor | Yes |
| O2 Delivery PSI | 20 PSI |
| Nominal Gas Flow Rate | 21 SCFH |
| Operating Pressure | 20 PSI |
| Max Pressure | 20 PSI |
| Gas Connections | 1/4" FNPT JIC-8 |
| Dimensions (LxWxH) | 16 x 15 x 29 inches |
| Operational RH Range | NA |
| Operational Temperature Range | NA |
| Power Requirements | 120V ~ ±10%, 60 Hz, 6.0 A or 220V ~ ±10%, 50 Hz, 3.0 A |
| Lead Time | In Stock |
| Warranty | 1 Year |
| Country of Origin | USA |
| Oxygen Production | 21-24 SCFH |
| Description | Turnkey unit with built-in compressor |
