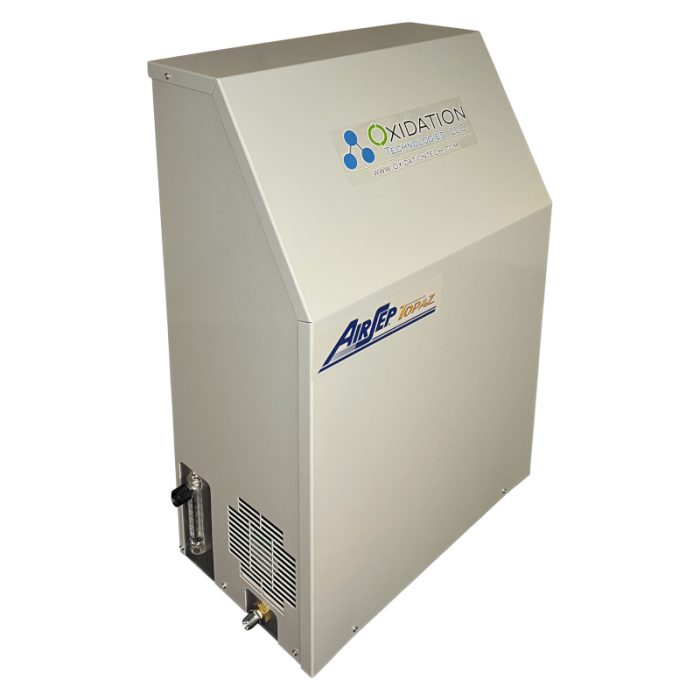

12 SCFH oxygen production at 9 PSI is produced by the Topaz oxygen concentrator module.


Specifically designed for reliability, energy efficiency, and ease-of-use, there are thousands of Topaz PSA Oxygen Generators currently in use throughout the world. The Topaz’s ability to deliver up to 95% oxygen concentration make it a great fit for a wide range of commercial applications.




     -Heavy Duty Metal Enclosure

     -Advanced Engineering

     -Ozone Resistant/High Temperature Process Tubing

     -Optional Oxygen Concentration Monitor

     -Wall or Rack Mounting


Product Characteristics:

Performance Data:

Product Flow

Oxygen Delivery Pressure



9 PSI (62 kPa)

Product Concentration Up to 95%
Product Dew Point -100°F (-73°C)

Dimensions (WxDxH)

 19 x 10 x 27 inches (48 x 25 x 68 cm)


53 lbs (24 kg)

(Add 2 lbs for 220 V Unit)

(Add 20 lbs for Stainless Steel)

Physical Connections

Product Gas Outlet


1/4" NPT-M/B-M size oxygen adapter

Ambient Operating Conditions

Locate the oxygen concentrator system in a well-ventilated area that is protected from weather elements.

Temps should remain between 40°F (4°C) and 112°F (44°C)

Control Power Requirements (Single Phase)

120 V ~ ± 10%, 60 Hz, 5.0 A

220 V ~ ± 10%, 50 Hz, 2.5 A

220 V ~ ± 10%, 60 Hz, 2.3 A


Typical Applications:


     -Glass Work/Blowing


     -Thermal/Chemical Oxidation


     -Ozone (Generator) Feed Gas

     -Waste/Water Treatment

     -Environmental Remediation


     -Fish Farming




You can purchase replacement/maintenace parts for your Topaz here.


Topaz Specifications

Topaz Manual

More Information
Manufacturer Air Sep
Call For Price Yes
Listing Description 12 SCFH @ 9 PSI
Oxygen Production 12 SCFH
Internal Compressor Yes
O2 Delivery PSI 9 PSI
Nominal Gas Flow Rate 12 SCFH
Operating Pressure 9 PSI
Max Pressure 9 PSI
Gas Connections 1/4" NPT-M/B-M Size Oxygen Adapter
Dimensions (LxWxH) 19 x 10 x 27 inches
Operational RH Range NA
Operational Temperature Range NA
Power Requirements 120V ~ ±10%, 60 Hz, 5.0 A or 220V ~ ±10%, 50 Hz, 2.5 A or 220V ~ ±10%, 60 Hz, 2.3 A
Lead Time In Stock
Warranty 1 Year
Country of Origin USA
Description Turnkey unit with built-in compressor
