UV-106L OEM Ozone Analyzer

Low range precision UV Ozone Analyzer with an OEM configuration. The OEM configuration is designed as an "Ozone Analyzer on a board" in which nearly all of the components are mounted directly to the printed circuit board.Range 0-100 ppm, with resolution of 0.0001 ppm (0.1 ppb) resolution allows for low range ozone measurement with great accuracy in a compact, easy to use package.

$5,040.00
1 In Stock

The UV-106-L Ozone Analyzer with an OEM configuration, is a low range ozone analyzer featuring less than ppb resolution. The OEM configuration is designed as an "Ozone Analyzer on a board" in which nearly all of the components are mounted directly to the printed circuit board. Ozone levels are measured at 0.1 ppb and can read ozone up to 100 ppm.

Integrated sample pump will pull a sample of ozone from your process or location into the analyzer and measure ozone in that gas stream.  A UV lamp and receptor are used to determine the quantity of ozone in gas by determining the rate of ozone absorption by the UV lamp.  This method of ozone detection will offer accurate detection of ozone at low levels (down to 0.1 ppb) while eliminating most cross-sensitivity from other gasses.

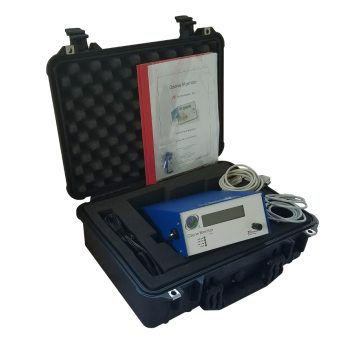

If you're looking to temporarily monitor ozone, we have a rental HERE



Features:

- Measurement based on UV absorption

- OEM Configuration

- Low power consumption; can be battery operated

- Internal data logger with real time clock

- On-board microprocessor with interactive menus includes data averaging options of 10 s, 1 m, 5 m and 1 hr

- USB and RS-232 output of time/date, O3 concentration, internal temperature and pressure

- Analog output (0-2.5 V and 4-20 mA) of ozone concentration in user selected units

- Two level relay for control purposes (e.g., control of ozone source or turn warning light on and off)

- Long-life pump (15,000 hr)



Standard Enclosure:

The UV-106 comes standard in a bench mount configuration making it simple to set up for many applications.



For applications where a wall mount analyzer, or rugged enclosure for harsh environments are a better fit, the NEMA enclosure can be used for the UV-106-M Ozone Analyzer.





Filters:

We highly recommend replacing the filter frequently to prevent contamination of the flow path by particulate matter.



Filter Housing

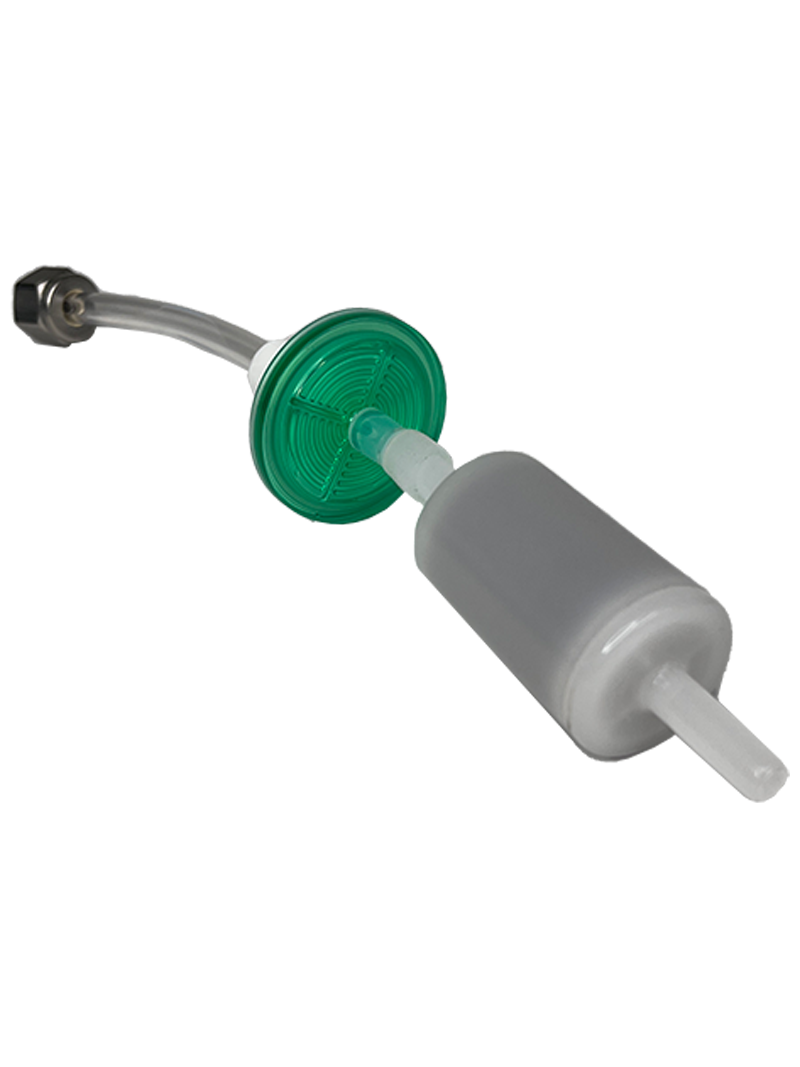

The UV-106's Series have an internal scrubber that should be replaced frequently to prevent contamination of the flow path by particulate matter.


Downloads:

UV-106-L Manual
More Information
Manufacturer 2B Technologies
Quickbooks Stock Level 1.000000
Quickbooks Stock Date Expected 2024-03-28 00:00:00
Call For Price No
Resolution 0.0001 ppm
Sampling Method Fan
Field Replaceable Battery Yes
Warranty 1 Year
Standard Range 0-100 ppm
Range 0-100 ppm
Unit Features

- OEM Configuration

- Includes datalogging with software

- Low power consumption; can be battery operated

- Two level relay for control purposes

- Long-life pump (15,000 hr)
