RMU16-K3 Ozone Generator produces 20 g/hr ozone from oxygen @ 8 LPM, or 10 g/hr from dry air. Air cooled, rack mount ozone generator that can operate on oxygen or dry air feed gas. Extermely versatile ozone generator!
The RMU16-K3 is an extremely flexible ozone generator able to produce ozone efficiently from either dry air, or oxygen feed gas. Either vacuum operation or pressure is acceptable for the ozone generator cell. Air cooled operation allows for use in most every application without the hassle of cooling water. With the compact size and great ozone production, the RMU16-K3 is a great value in ozone generators!
The RMU16-K3 is a rack mount, or benchtop Ozone generator which produces up to 20 g/hr of ozone from 7 l/min of oxygen, or 10 g/hr ozone from 15 LPM of dry air. This generator utilizes corona discharge technology. This unit is typically used in water bottling plants, self-contained site remediation systems, and air systems for commercial buildings.

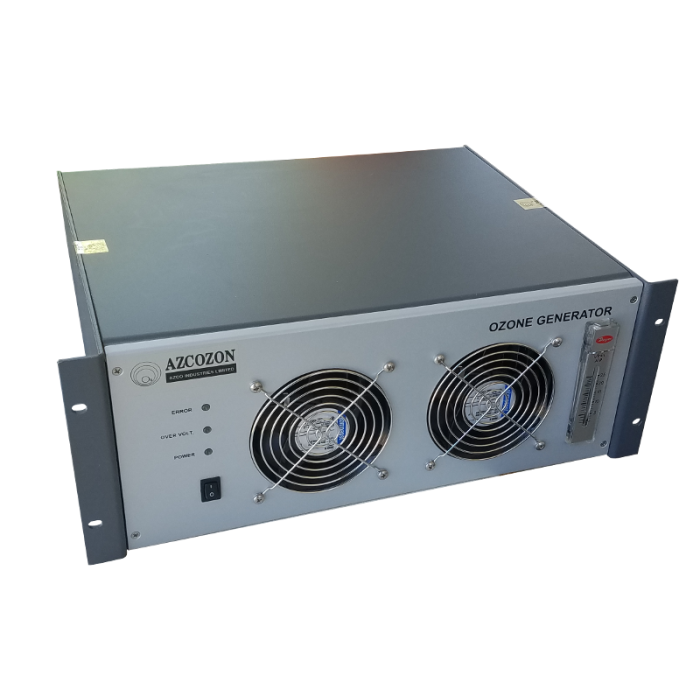

The RMU series ozone generators are rack mountable in a standard 19" rack. This allows for flexible mounting and modular design allowing for the addition of additional ozone generators if required at a later time without major modifications.

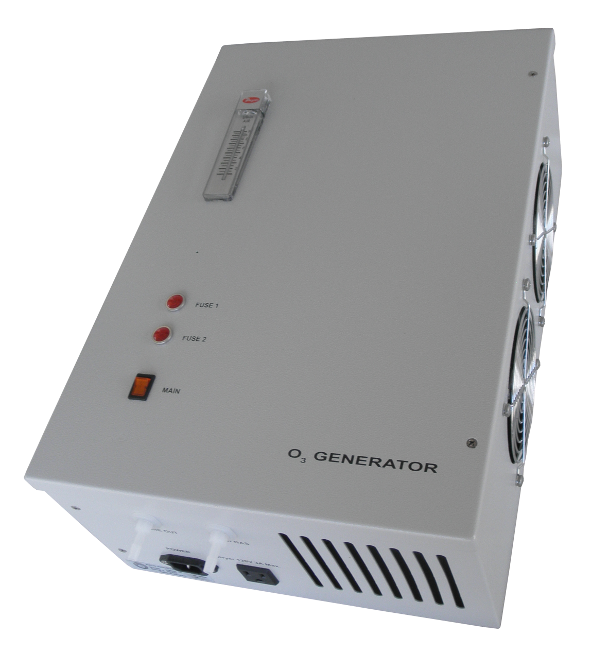

VMUS-10 Ozone Generator
-Produces Up to 20 g/hr ozone from oxygen
-Rack mount or benchtop mount
-Flow meter is standard - with valve
-Adjustable output Standard
-Pressure Switch Standard
-Detachable power cord
-Easy to install and operate
-Powder coated Al. cabinet
The RMU16-K3 uses a sophisticated power inverter board that will protect the corona cell and/or transformer against failure. In the event, the corona cell does become contaminated with moisture, or dust the inverter will turn OFF ozone production immediately to protect against damage. Every 6 seconds this inverter will attempt to produce ozone and will restart automatically when conditions improve. While we hope our customers never flood, or contaminated the ozone generator corona cell, we know this is a possibility, this circuit protection will prevent potentially costly repairs.
Rebuild-able Corona Cell
The RMU16-K3 corona cell is completely rebuildable. The Quarts dielectric can be removed from the stainless steel shell and be cleaned, or replaced if necessary. We know that air dryers, oxygen concentrators, and check valves can fail. Therefore we provide an easily rebuild-able corona cell so that these external failures do not have to be fatal to your ozone generator.
RMU16-K3 Corona Cell
The most common failure of any ozone generator is poor feed-gas quality, either wet air, or poor quality oxygen. The RMU16-K3 ozone generator corona will get dirty, wet, and full of contamination, however, the fundamental components of stainless steel and quartz are still good and can be disassembled, cleaned, and put back into service in even some of the worst cases.
Disassembly of corona cell
The RMU16-K3 Corona cell consists of very few components. The Stainless shell and quartz dielectric are the main components. Each end is sealed with a Kynar end cap that has the fitting molded in (fewer leak points) with a Viton O-ring and Kynar sealing ring. We stock and sell all replacement and repair parts for the RMU16-K3 ozone generator. Therefore, you can be confident that no matter what happens your ozone generator will be repairable.
Ozone Generator performance on both dry air and oxygen feed gas shown below.
Ozone Production from Oxygen:
||O2 Flow||O3 Concentration|
|10.18 g/hr||2 LPM||6.37%|
|16.59 g/hr||4 LPM||5.19%|
|19.19 g/hr||6 LPM||4.0%|
|21 g/hr||8 LPM||3.29%|
|22.15 g/hr||10 LPM||2.77%|
|24.74 g/hr||12.5 LPM||2.48%|
|26.8 g/hr||15 LPM||2.24%|
Using the RMU16-K3 with Oxygen:
We provide a variety of oxygen concentrators that could be used with the RMU16-K3. Our recommendation would be the OG-15 Oxygen Concentrator. The OG-15 will produce 10 LPM of oxygen, this is more than sufficient for a full 20 g/hr of ozone production from the RMU16-K3. The oxygen pressures, flows and general operation of the OG-15 will be a great fit with the RMU16-K3. However, if you choose to use your own oxygen concentrator, simply contact our office and let us ensure it is the right fit for your application.
||O2 Flow||O3 Concentration|
|2.13 g/hr||2 LPM||1.33%|
|3.81 g/hr||4 LPM||1.19%|
|5.31 g/hr||6 LPM||1.11%|
|6.33 g/hr||8 LPM||0.99%|
|7.25 g/hr||10 LPM||0.91%|
|10 g/hr||15 LPM||0.84%|
Using the RMU16-K3 with Dry Air:
The RMU16-K3 Ozone Generator can operate under vacuum. Using the RMU16-K3 with the VMD-30 vacuum-driven air dryer is a simple method of dissolving ozone into water. A venturi injector can be used to create a suction of gas into a water stream. The ozone generator and air dryer can be plumbed in series so that the dry air is pulled through the ozone generator and into the water via the venturi injector. There will be no major moving parts and simple, reliable operation.
|Call For Price||No|
|Ozone Output||20 g/hr ozone from oxygen, 8 g/hr ozone from dry air|
|Feed Gas||Dry Air|
|Nominal Gas Flow Rate||8 LPM oxygen to produce 20 g/hr ozone|
|Operating Pressure||5 PSI|
|Max Pressure||5 PSI|
|Cooling Method||Air Cooled|
|Corona Cell||Quartz , Stainless Steel|
|Gas Connections||1/4" barbed fittings|
|Dimensions (LxWxH)||14.5" x 19" x 7"
|Operational Temperature Range||35 - 95-deg F|
|Max O3 %||Below 3%|
|Power Requirements||120 VAC, 220 watts|
|Country of Origin||Canada|
|Description||Enclosure Dimensions: 7-inch height x 19-inch width x14.5-inch depth Generator Weight: 25 lb|
